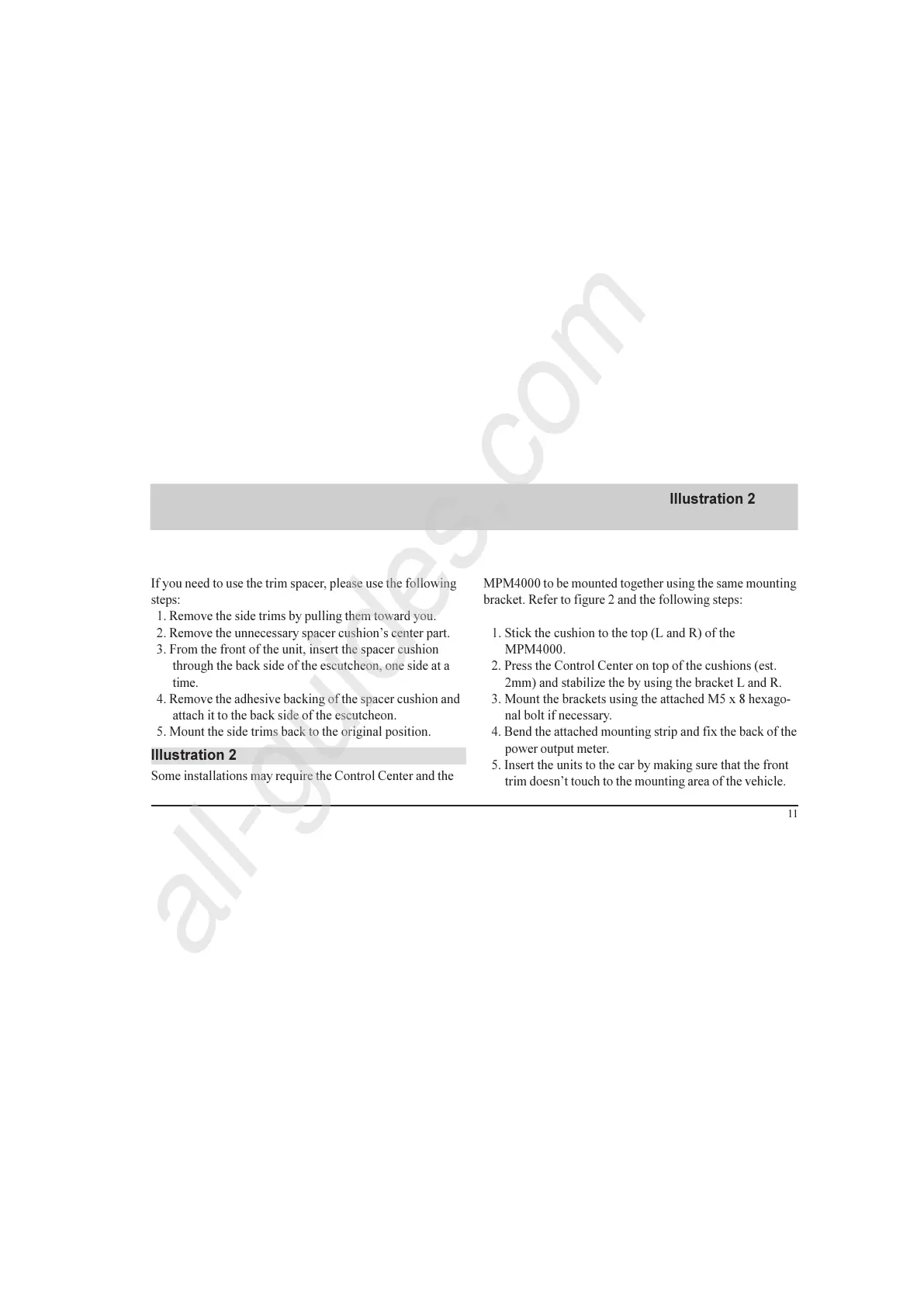

McIntosh MPM4000 - Illustration 2; Illustration 4

11
If you need to use the trim spacer, please use the following
steps:
1. Remove the side trims by pulling them toward you.
2. Remove the unnecessary spacer cushions center part.
3. From the front of the unit, insert the spacer cushion
through the back side of the escutcheon, one side at a
time.
4. Remove the adhesive backing of the spacer cushion and
attach it to the back side of the escutcheon.
5. Mount the side trims back to the original position.
Illustration 2
Illustration 2
Some installations may require the Control Center and the
MPM4000 to be mounted together using the same mounting
bracket. Refer to figure 2 and the following steps:
1. Stick the cushion to the top (L and R) of the
MPM4000.
2. Press the Control Center on top of the cushions (est.
2mm) and stabilize the by using the bracket L and R.
3. Mount the brackets using the attached M5 x 8 hexago-
nal bolt if necessary.
4. Bend the attached mounting strip and fix the back of the
power output meter.
5. Insert the units to the car by making sure that the front
trim doesnt touch to the mounting area of the vehicle.
