13

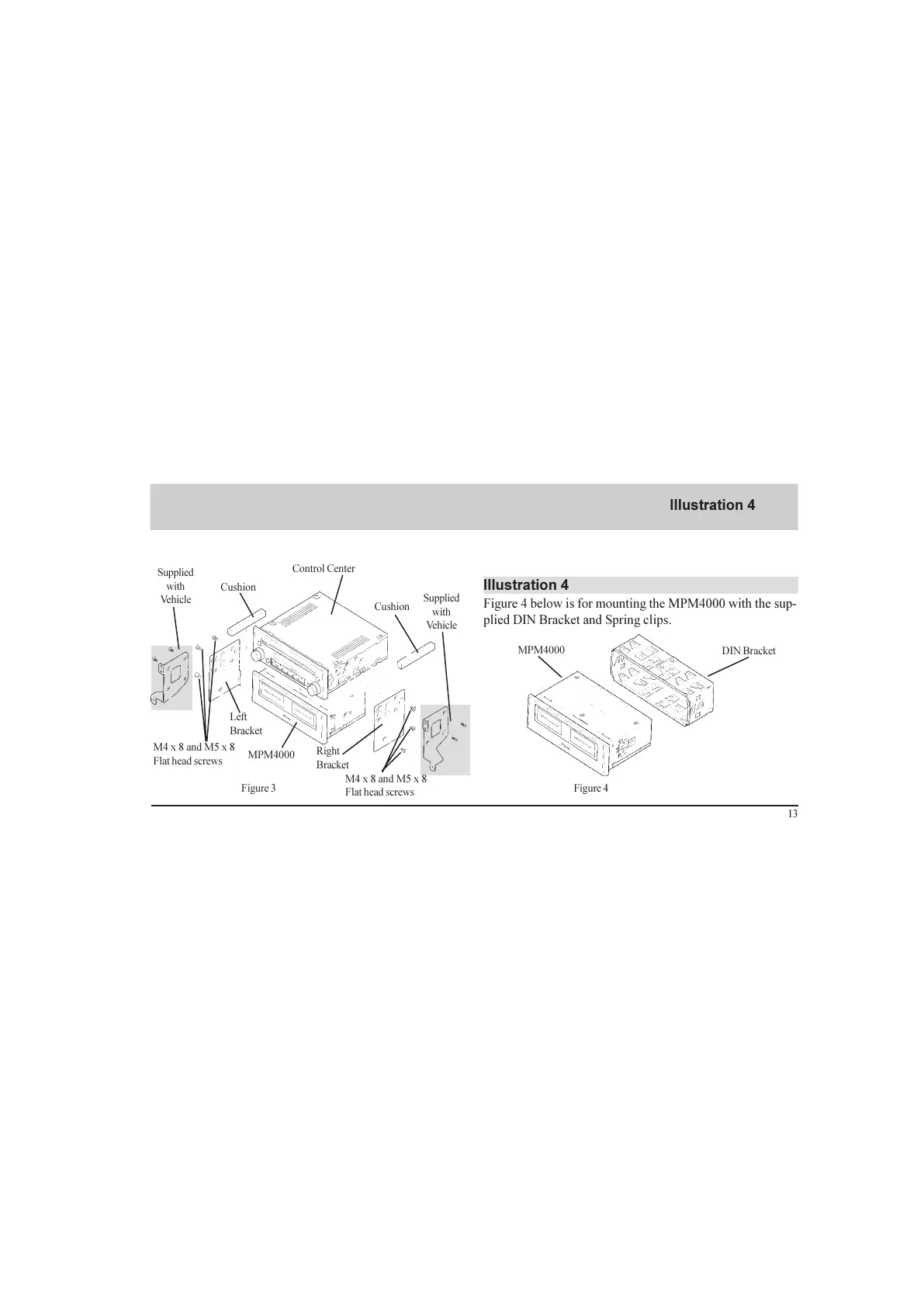

Figure 3
Control Center
MPM4000
Cushion
Left
Bracket
Right
Bracket
Cushion
Supplied
with
Vehicle
Supplied
with
Vehicle
M4 x 8 and M5 x 8
Flat head screws
M4 x 8 and M5 x 8
Flat head screws
Illustration 4
Figure 4 below is for mounting the MPM4000 with the sup-
plied DIN Bracket and Spring clips.
Figure 4
DIN Bracket
MPM4000
Illustration 4
