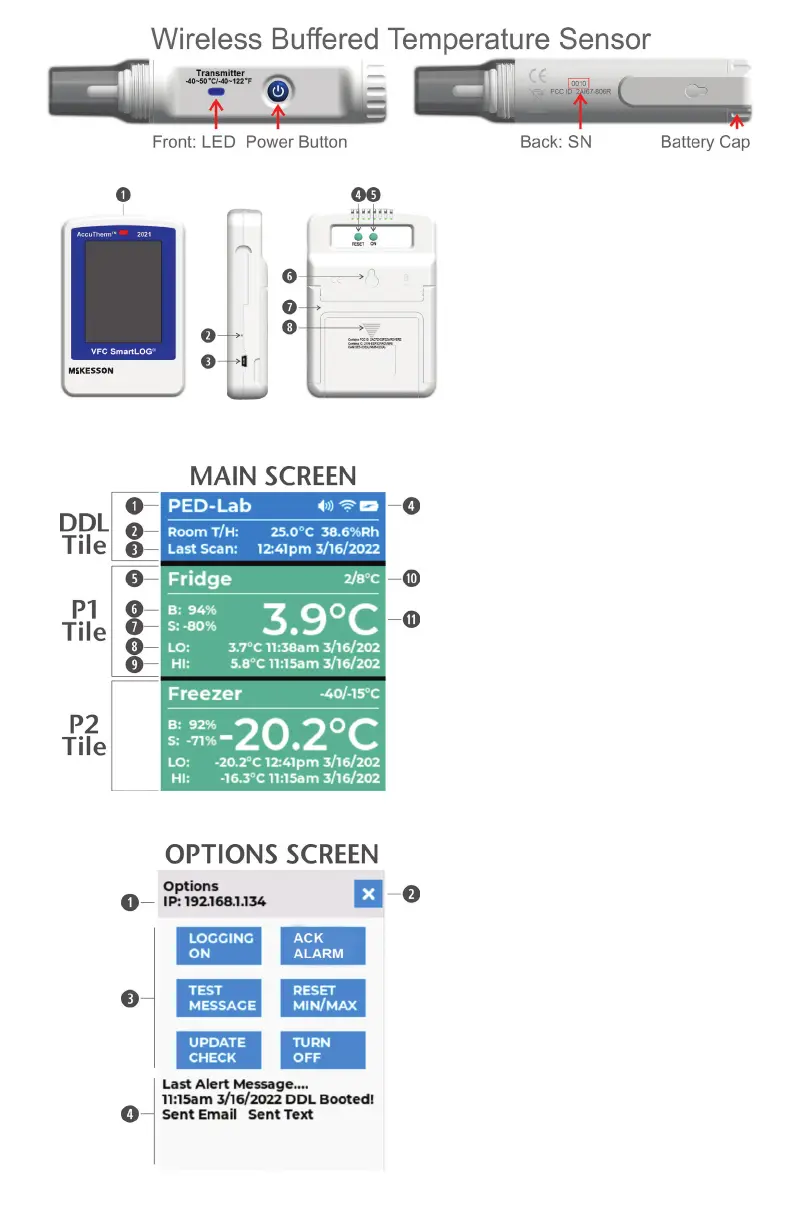

McKesson MCKSL2021 - Main Screen Display; DDL Status Tile; P1 Sensor Tile; P2 Sensor Tile

MAIN SCREEN
DDL Tile
1. Logger Name
2. Ambient Room Temperature Humidity
3. Time And Date Of Last Scan
4. Buzzer, Wi-Fi Strength, Battery Level Icons
P1 Tile
5. P1 Wireless Sensor Name
6. Battery Remaining Power
7. Bluetooth Signal Strength
8. Lowest Temperature Since Last Reset
9. Highest Temperature Since Last Reset
10. Alarm Set Points Min/Max
11. Current Temperature
P2 Tile
Same as P1
OPTIONS SCREEN
1. Dashboard IP Address
2. Close Options Screen
3. Option Buttons
4. Last Message Today
SmartLOG DDL
1. Red Alarm LED
2. USB Power LED Green
3. 5v Mirco USB Port
4. Factory Reset Button
Deletes All Settings
5. Power On Button
6. Wall Mount Keyhole
7. Kick Out Desk Stand
8. Battery Compartment
