© 2010 Pentair Technical Products87976494 - 5 -

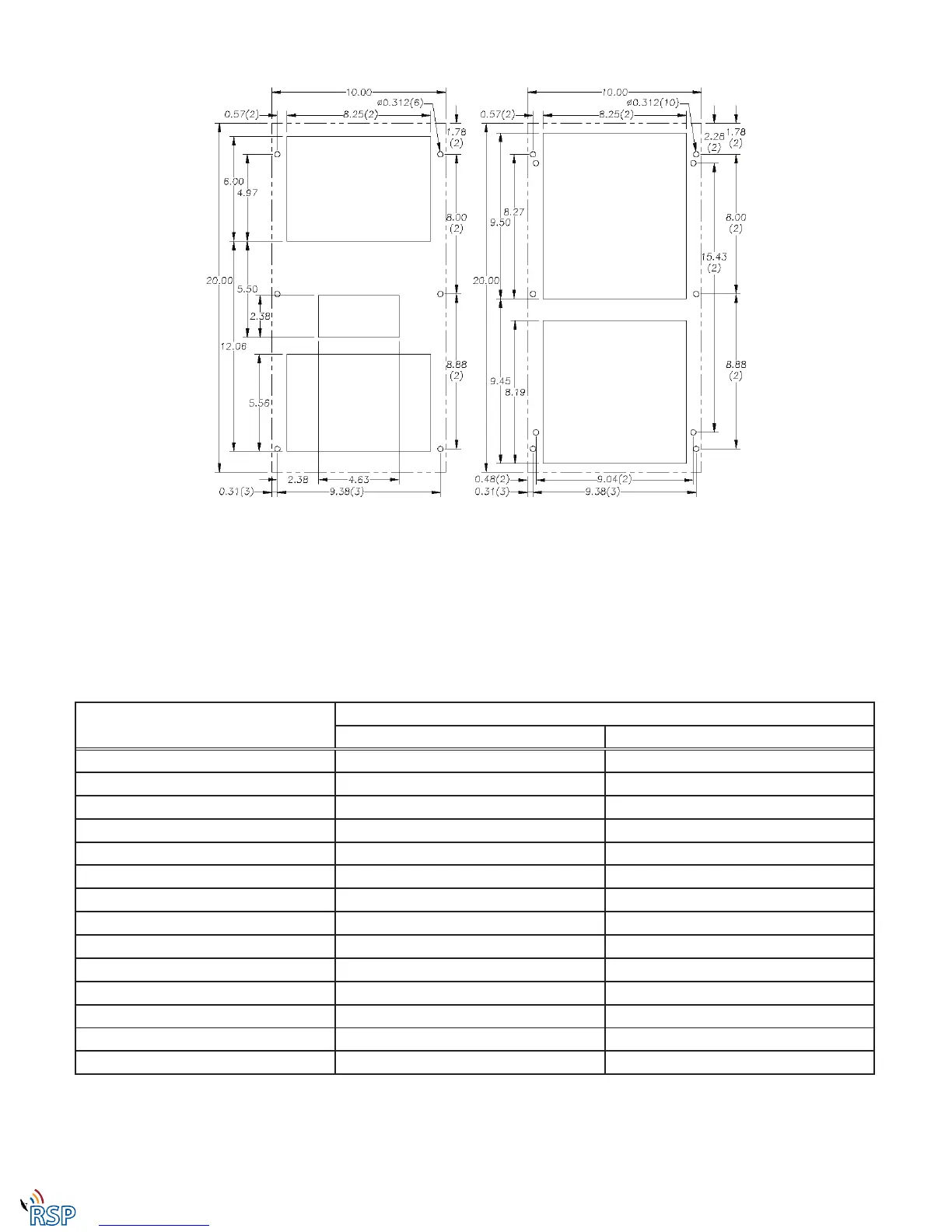

Mounting Cutout Dimensions
External Mounting Internal Mounting
CUTOUT INSTRUCTION
(As viewed from outside of enclosure)
NOTE: Dashed lines represent air conditioner.
Components List
Part Description
Part Number
115V 230V
Impeller, Condenser 10-1091-121 10-1091-122
Fan, Evaporator 12-1012-01 12-1012-02
Capacitor, Condenser Impeller S-1353-1 52-6084-02
Coil, Condenser 20-1020-02 20-1020-02
Coil, Condenser, Coated 20-1020-01 20-1020-01
Coil, Evaporator 20-1021-00 20-1021-00
Compressor 10-1016-30 10-1026-50
Filter, Air, Reusable 89057620 89057620
Filter/Dryer 52-6028-03 52-6028-03
Service Cord 52-6035-140 52-6035-141
Thermal Overload, Compressor 10-1007-44 10-1007-52
Thermostat, SPST, 55-100F 10-1061-16 10-1061-16
Optional Heater 10-2004-25 10-2004-26
Optional Malf Switch 52-6104-42 52-6104-42
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
