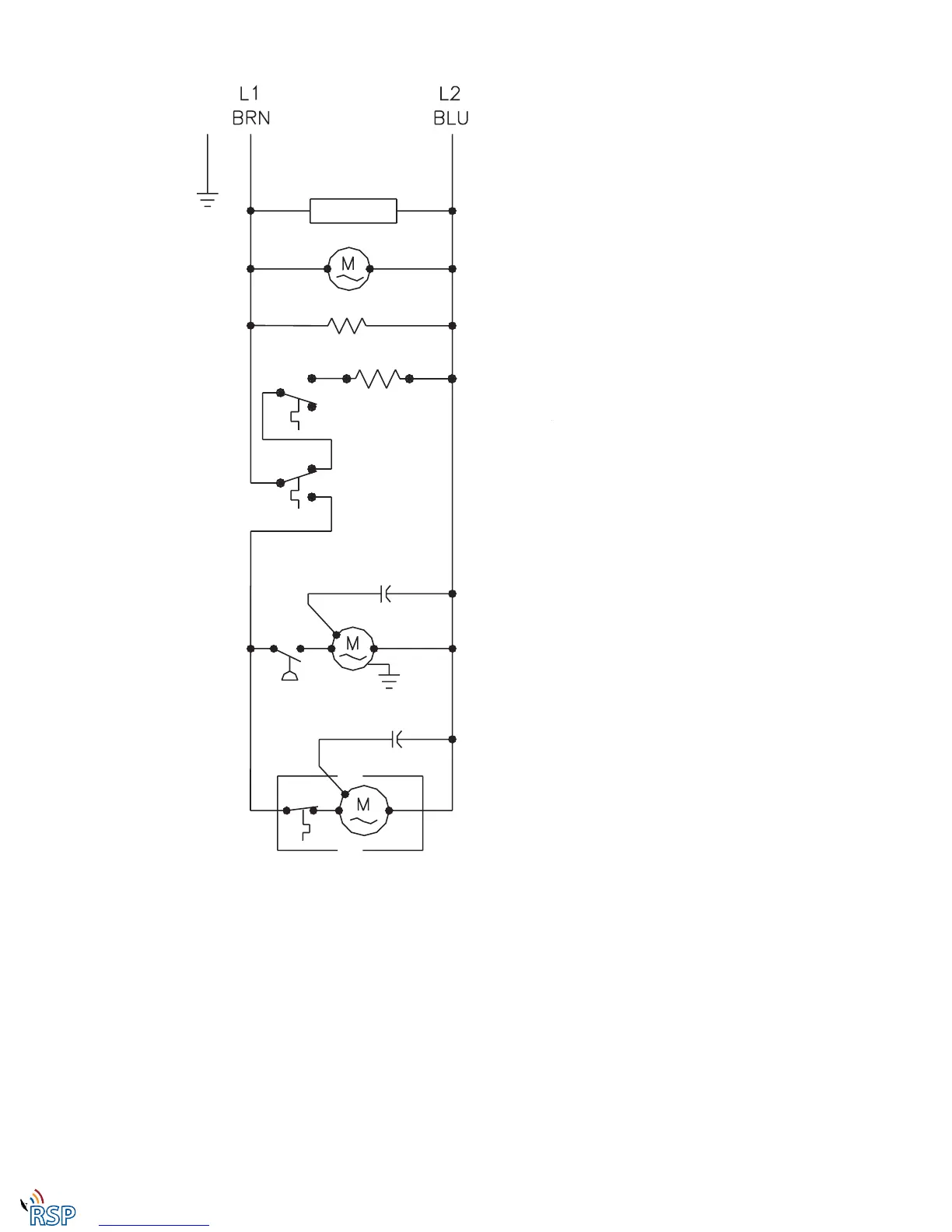

McLean T20 - Electrical Schematic

© 2010 Pentair Technical Products
87976494
- 8 -
Schematic
SUPPRESSOR (OPTIONAL)
START CAPACITOR (230V ONLY)
HEATING THERMOSTAT AND HEATER
(OPTIONAL)
CONDENSER IMPELLER WITH OPTIONAL HEAD PRESSURE
CONTROL
COMPRESSOR AND
OVERLOAD
COMPRESSOR HEATER (OPTIONAL)
RUN CAPACITOR
ENCLOSURE FAN
COOLING THERMOSTAT
