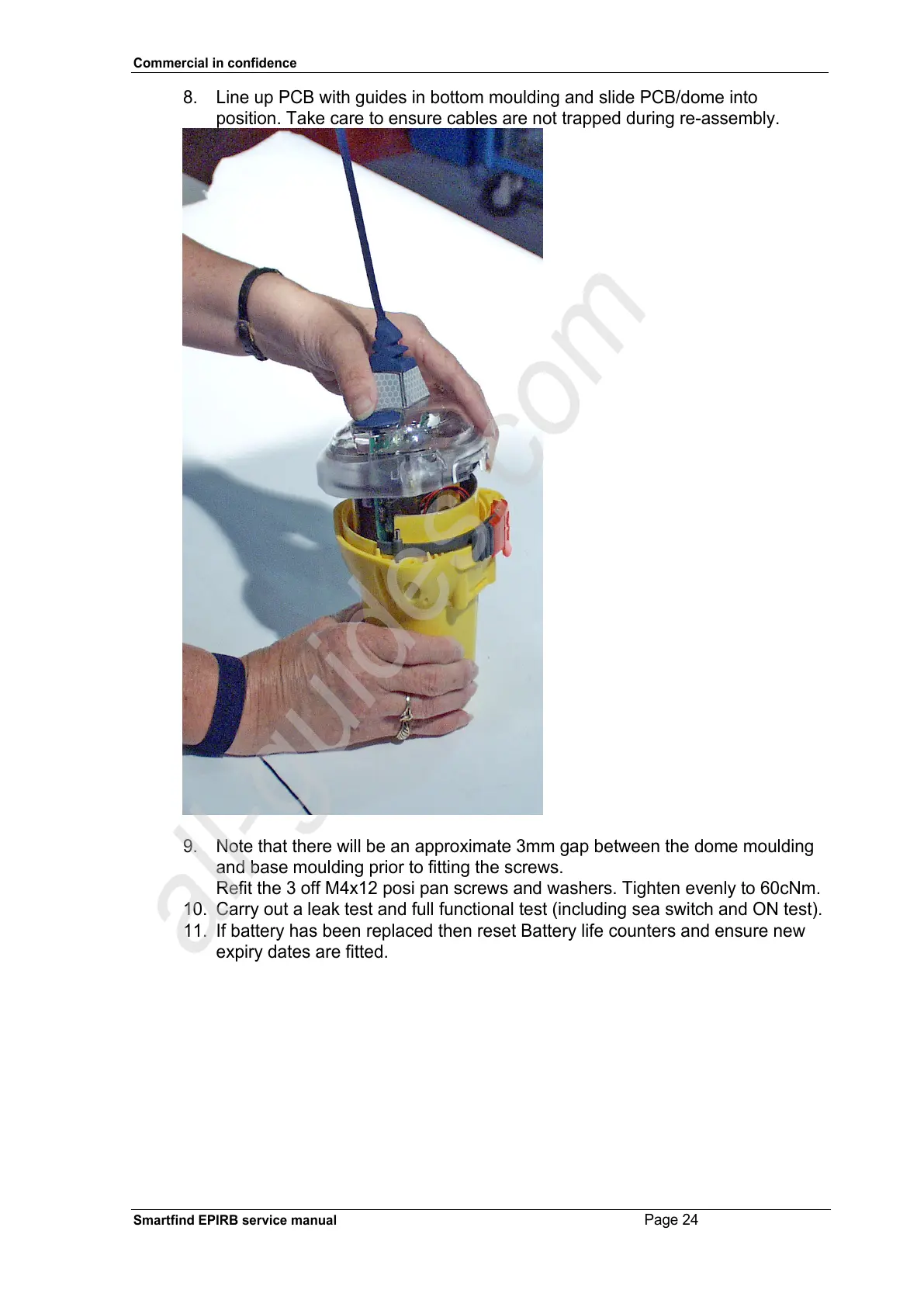

8. Line up PCB with guides in bottom moulding and slide PCB/dome into
position. Take care to ensure cables are not trapped during re-assembly.
9. Note that there will be an approximate 3mm gap between the dome moulding
and base moulding prior to fitting the screws.
Refit the 3 off M4x12 posi pan screws and washers. Tighten evenly to 60cNm.
10. Carry out a leak test and full functional test (including sea switch and ON test).
11. If battery has been replaced then reset Battery life counters and ensure new
expiry dates are fitted.
