ACZ 010A through 039A IOMM ACZ1
Dimensional Data

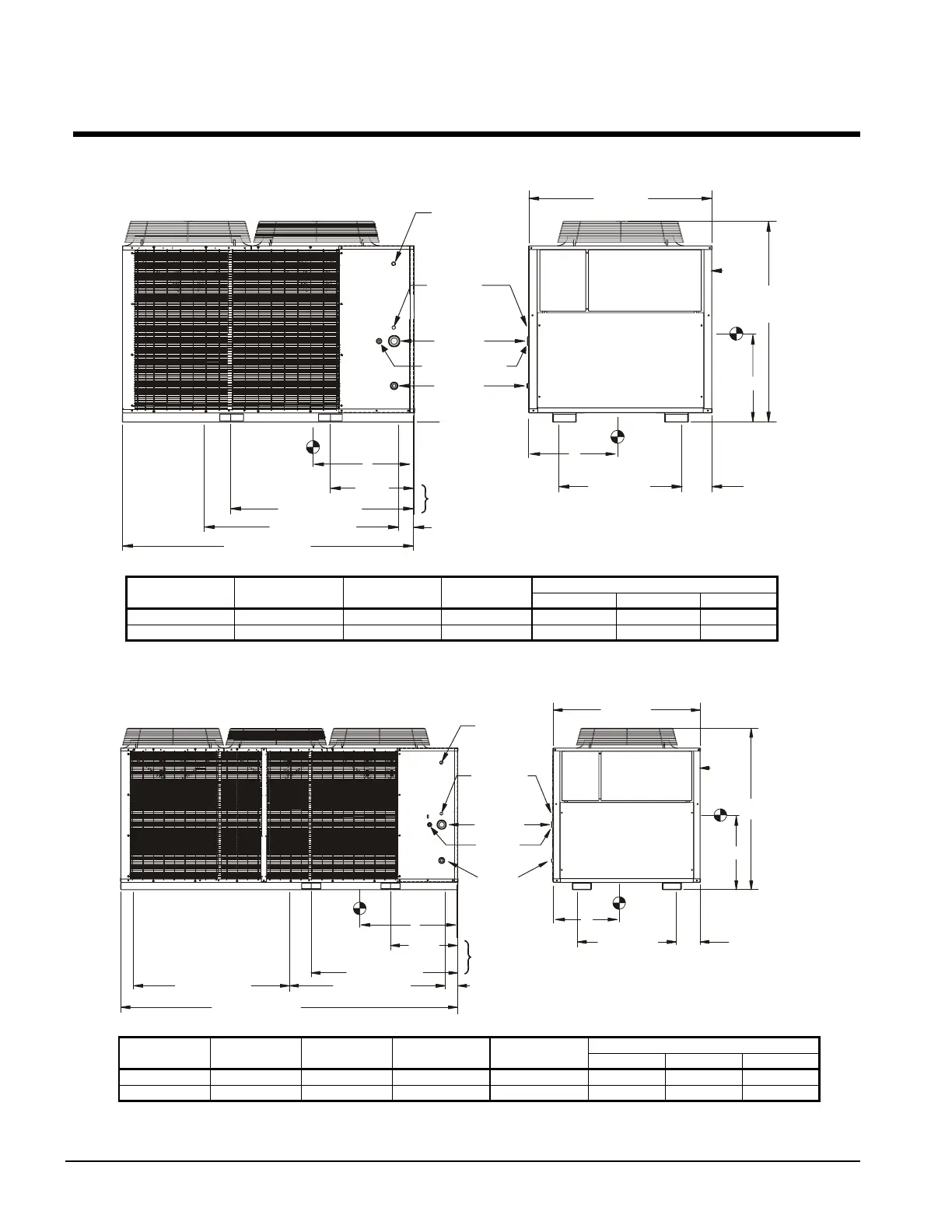

Figure 8, ACZ 010A through 020A
CONTROL
ELECTRICAL
KNOCKOUT
21.32
(541.53)
46.23 (1174.24)
49.06 (1246.12)
M0UNTING HOLES
QTY. 4 01.00 (25.4)
3.94 (100.08)
73.55 (1868.17)
POWER ENTRY
KNOCKOUT
(OTHER SIDE)
51.0
(1295.40)
46.27
(1175.26)
7.55
(191.77)
MOUNTING
HOLES
31.11 (790.19)
ACCESS DOOR
CONTROL PANEL
ACCESS DOORS
POWER
ENTRY
LIFTING SLOTS
SUCTION
INLET
LIQUID
OUTLET
X
Y
Z
HOT GAS BYPASS
Center of Gravity inches (mm)
ACZ Unit Size
Liquid Conn.
inches (mm)
Suction Conn
inches (mm)
Optional Hot
Gas Bypass
XYZ
010A, 013A 7/8 (22.2) 1 1/8 (28.6) 5/8 (15.8) 28 (711.2) 22 (558.8) 23 (584.2)
016A, 020A 7/8 (22.2) 1 5/8 (41.3) 5/8 (15.8) 25 (635.0) 21 (553.4) 23 (584.2)
Figure 9, ACZ 025A through 039A
CONTROL
ELECTRICAL
KNOCKOUT
21.32
(541.53)
46.19 (1173.23)
49.06 (1246.12)
MOUNTING HOLES
QTY. 6 0 1.00 (25.4)
3.94 (100.08)
105.97 (2691.64)
49.06 (1246.12)
POWER ENTRY
KNOCKOUT
(OTHER SIDE)
A
46.26
(1175.26)
7.55
(191.77)
MOUNTING
HOLES
31.11 (790.19)
ACCESS DOOR
CONTROL PANEL
ACCESS DOORS
POWER
ENTRY
SUCTION
INLET
LIQUID
OUTLET
LIFTING SLOTS
X
Z
Y
HOT GAS
BYPASS
Center of Gravity inches (mm)
ACZ Unit
Size
A
inches (mm)
Liquid Conn.
inches (mm)
Suction Conn
inches (mm)
Optional Hot
Gas Bypass
XYZ
025A, 028A 51 (1295) 7/8 (22.2) 1 5/8 (41.3) 5/8 (15.8) 35 (889.0) 21 (553.4) 23 (584.2)
033A, 039A 59 (1499) 7/8 (22.2) 2 1/8 (53.9) 5/8 (15.8) 35 (889.0) 25 (635.0) 24 (609.6)
