28
AGR 070A through 100A Product Manual AGR-3

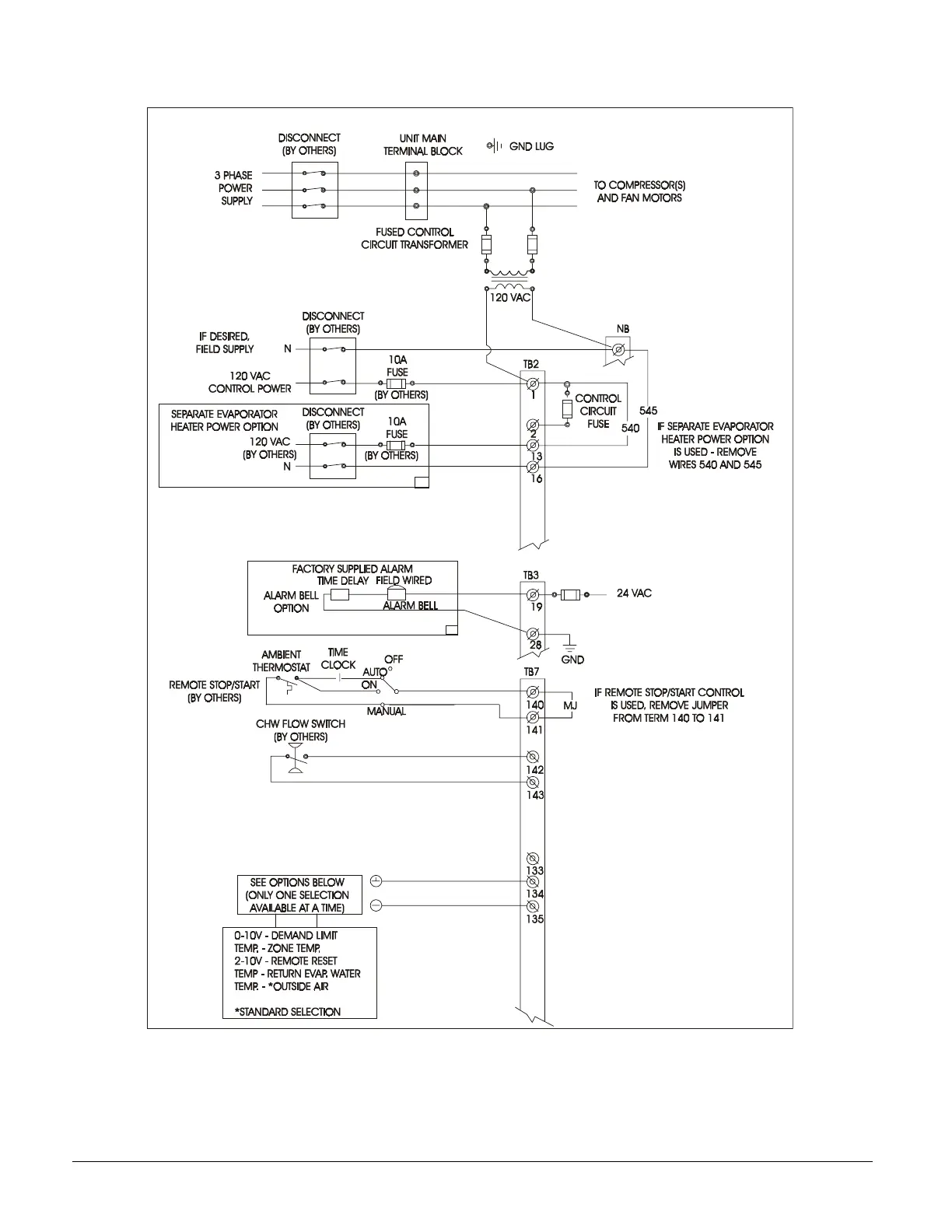

Figure 11, Typical Field Wiring Diagram with UNT Controller
See note 3 for “Electrical Data Single Point Power” on page 26
