1-4
IM-FCU-0999

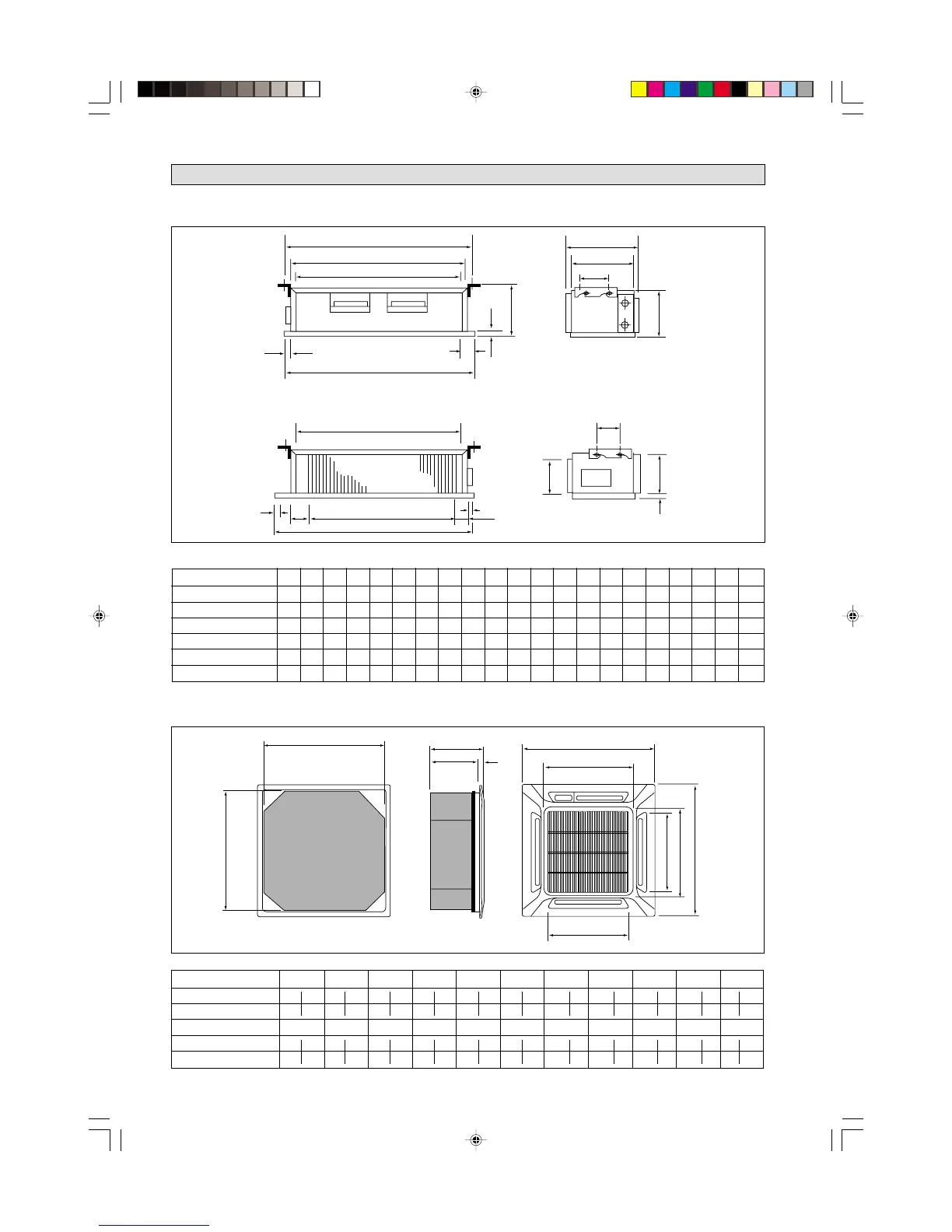

OUTLINE AND DIMENSIONS
INDOOR UNIT (CC SERIES)
G
A
R
E
N
OM
S
D
QP
L
H
I
U
F
D
C
CK
B
J
T
CC MODEL A B C D E F G H I J K L M N O P Q R S T U
10BW 700 240 25 780 30 50 754 410 350 182 193 140 565 25 90 45 30 673 653 255 190
15BW 800 240 25 880 30 50 854 410 350 182 193 140 665 25 90 45 30 773 753 255 190
20BW 1000 240 25 1080 30 50 1054 410 350 182 193 140 865 25 90 45 30 973 953 255 190
20BW 1200 240 25 1280 30 50 1254 410 350 182 193 140 1065 25 90 45 30 1173 1153 255 190
30BW 1500 240 25 1580 30 50 1554 410 350 182 193 140 1345 25 90 45 30 1473 1453 255 190
40BW 1800 240 25 1880 30 50 1854 410 350 182 193 140 1665 25 90 45 30 1773 1753 255 190
INDOOR UNIT (CK SERIES)
• (With Wireless Remote Control & With Wired Remote Control)
All dimensions are in mm.
All dimensions are in mm.
F
H
I
J
G
K
E
C
D
B
A
CK MODEL A B C D E F G H I J K
20AW
25AW
30AW 820 820 363 335 28 930 930 642 622 555 555
40AW
50AW
