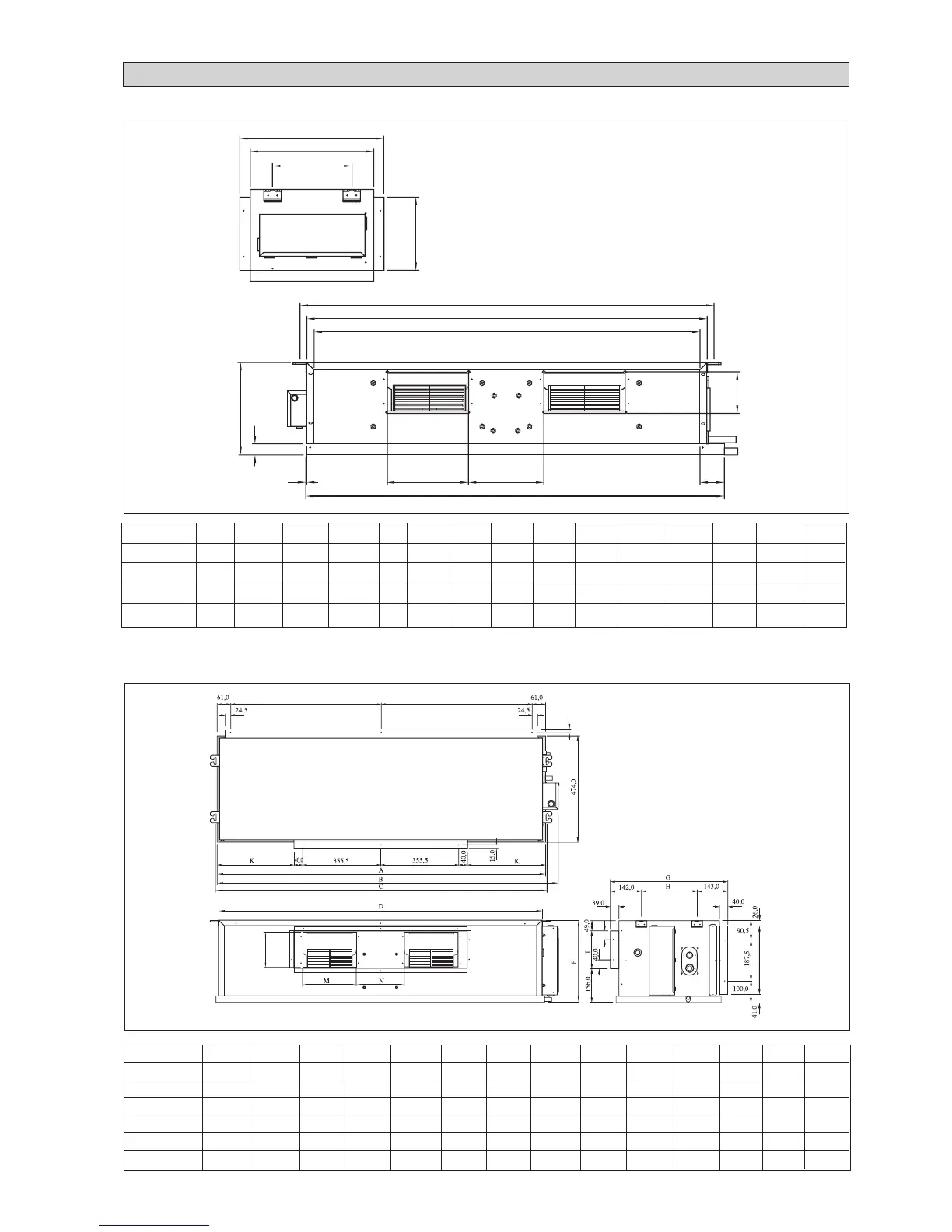

OUTLINE AND DIMENSIONS
Indoor Unit (CC series)
A
H
E
MN
G
O
D
C
B
I
J
K
F
i
L
MODEL A B C D E F G H I J K L M N O
CC 10CW 31 741 702 662 10 765 72 261 411 351 225 261 232 212,8 114
CC 15CW 31 881 842 802 10 905 72 261 411 351 225 261 232 212,8 114
CC 20CW 31 1041 1002 962 10 1065 72 261 411 351 225 261 232 212,8 114
CC 25CW 31 1176 1137 1097 10 1200 72 261 411 351 225 261 232 212,8 114
All dimensions are in mm
Indoor Unit (CC series)
40,0
EF
MODEL A B C D E F G H I J K L M N
CC 28CW 952 1007 959 920 410,0 295 600 339 121 213 64,0 100,0 239 214,0
CC 30CW 939 999 956 917 408,5 378 541 256 173 306 70,5 160,5 248 220,0
CC 38CW 1257 1312 1264 1225 562,5 315 638 401 183 233 217,0 169,2 251 237,8
CC 40CW 1055 1115 1072 1033 466,5 378 541 256 173 306 128,5 160,5 248 220,0
CC 50CW 1309 1369 1326 1287 593,5 378 541 256 173 306 255,5 160,5 248 220,0
CC 60CW 1509 1569 1526 1487 693,5 378 541 256 173 306 355,5 160,5 248 220,0
