1. Remove cover from remote sensor housing.
2. Select an appropriate location for mounting the remote sensor.
3. Mount remote sensor unit using hardware provided.
4. Install two strand shielded wire between remote sensor and thermostat. Shielded wire must be used.
Do not run remote sensor wire in conduit with other wires.

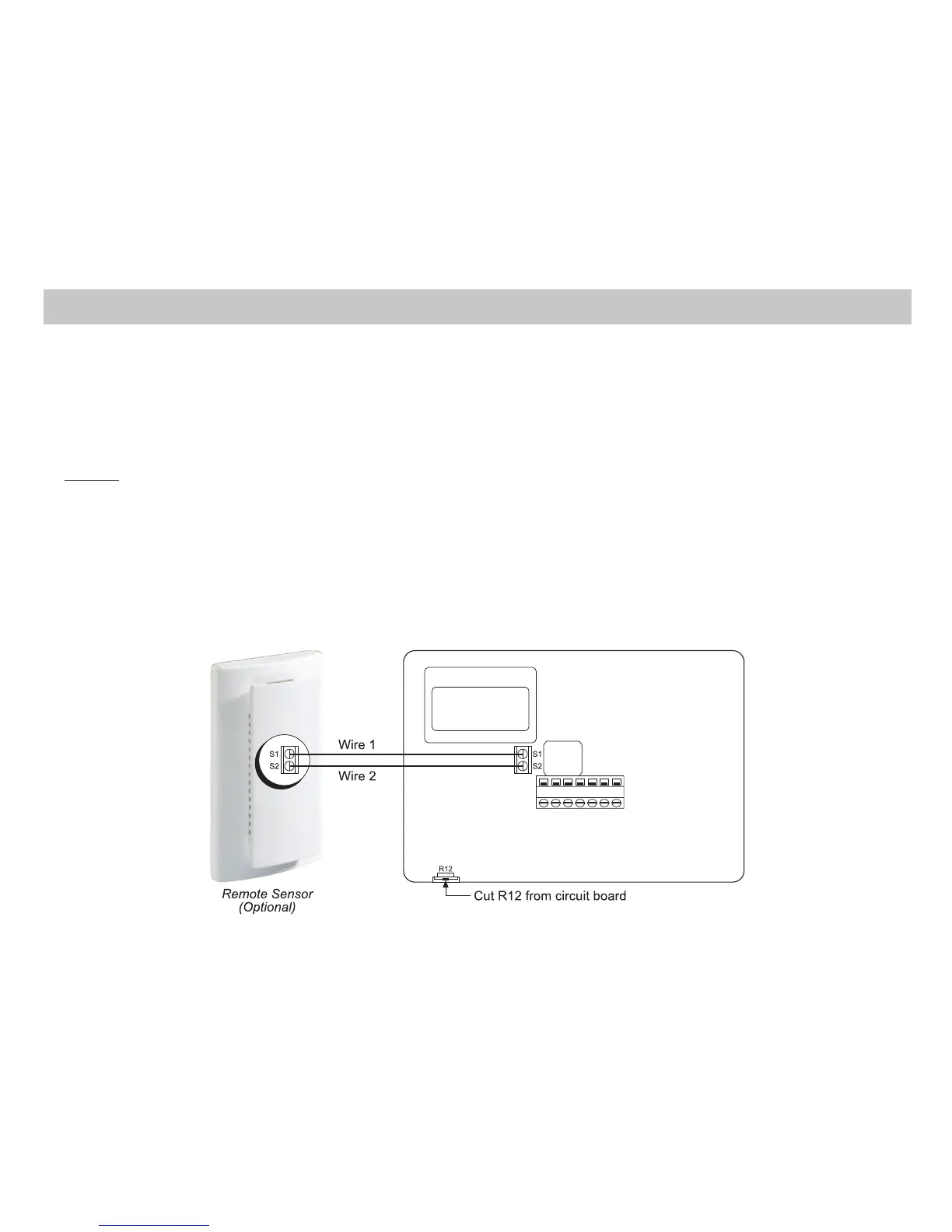

Wire 1 should run between the S1 terminal on the thermostat and the S1 terminal on the
remote sensor
Wire 2 should run between the S2 terminal on the thermostat and the S2 terminal on the
remote sensor
Connect the shielding of the wire to the S2 terminal on the thermostat
5. Disable the main sensor (R12) on the thermostat by cutting it from the circuit board.
Remote Sensor Installation (Optional)
Requires McQuay Remote Sensor Part Number 667720401
