SimpleSet
TM
Field Programming

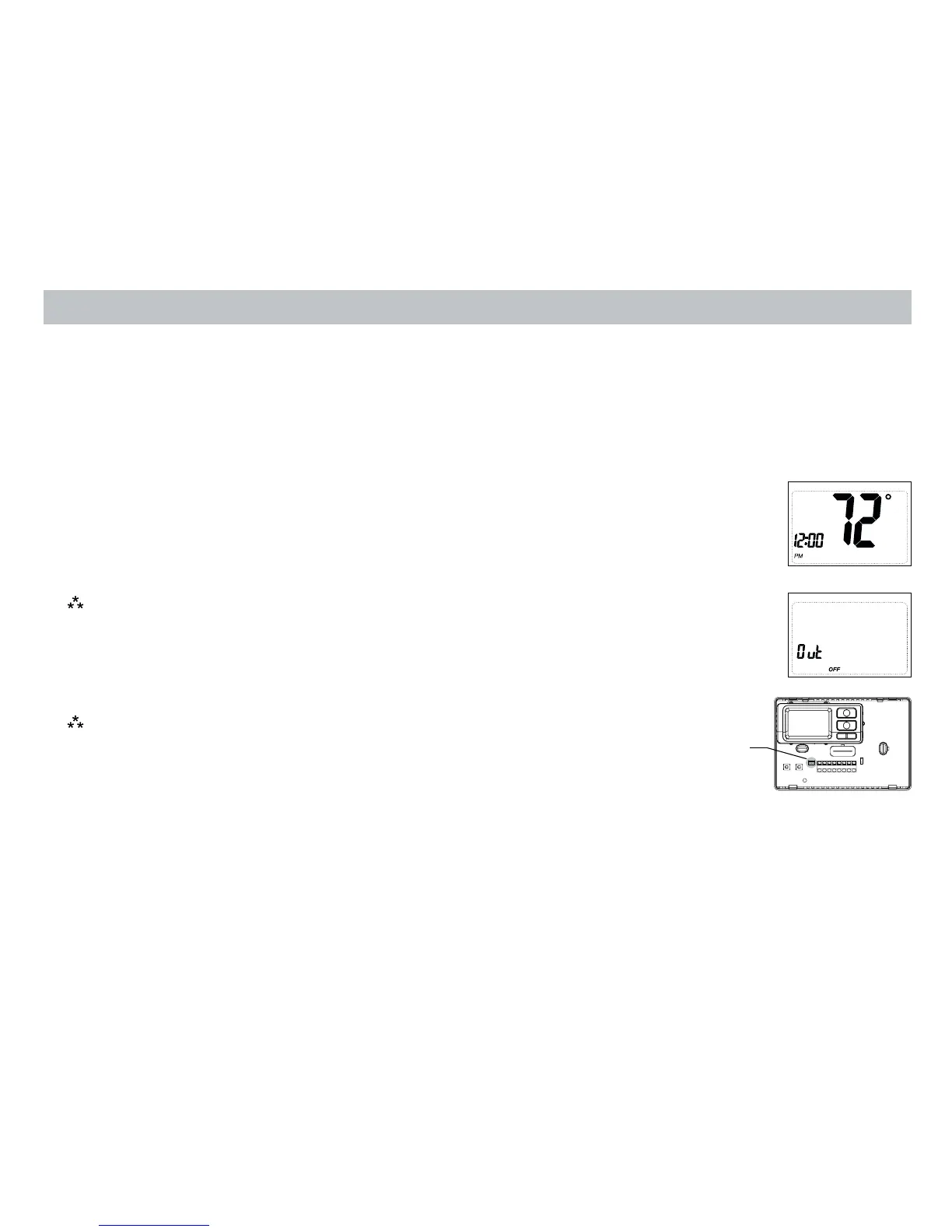

This feature is used for transferring conguration and program schedule from the master to the target thermostat.
All thermostats for a job can be mounted and powered up. Congure and program one thermostat. This will be the
master. The master will be used to copy the program to the rest of the thermostats.
Preparing the master to Send:
1. The master must be powered with 24 VAC.
2. Verify the master thermostat is in OFF mode.
3. Press SYS (left) button until OFF mode displays.
4. Remove cover of the master thermostat by gently pulling near one of the corners at the top
of the thermostat.
5. Press the up and down buttons and CONFIG switch simultaneously for 5 seconds.
6. The OUT screen displays indicating the master thermostat is ready to transfer data.
Note: Press the up and down buttons and CONFIG switch simultaneously for 5
seconds to exit from data transfer mode and to return the master to the OFF
mode.
7. Turn off power to the master and remove it from the wall.
8. Connect the master to the target using the 3 wire connector. Attach one end to the Master’s
FP pins and the other end to the Target’s FP pins.
Note: Target thermostat must be powered with 24 VAC for eld
programming to occur
When the connection has been made correctly, the master thermostat will power up and the target will count from 5
down to 1. It will then display the LOCK conrming the data has been saved in memory.
When all target thermostats have been completed, reinstall the master thermostat.
Press the up and down buttons and the CONFIG switch simultaneously for 5 seconds to exit from the data transfer
mode and to return the master thermostat to the OFF mode.
OFF
FP pins
S1 S2 Y W
O/B
G RC RH C
RESET CONFIG
RC
RH
FP
Requires SimpleSet
TM
Transfer Cable (668817901)
To Next Page
