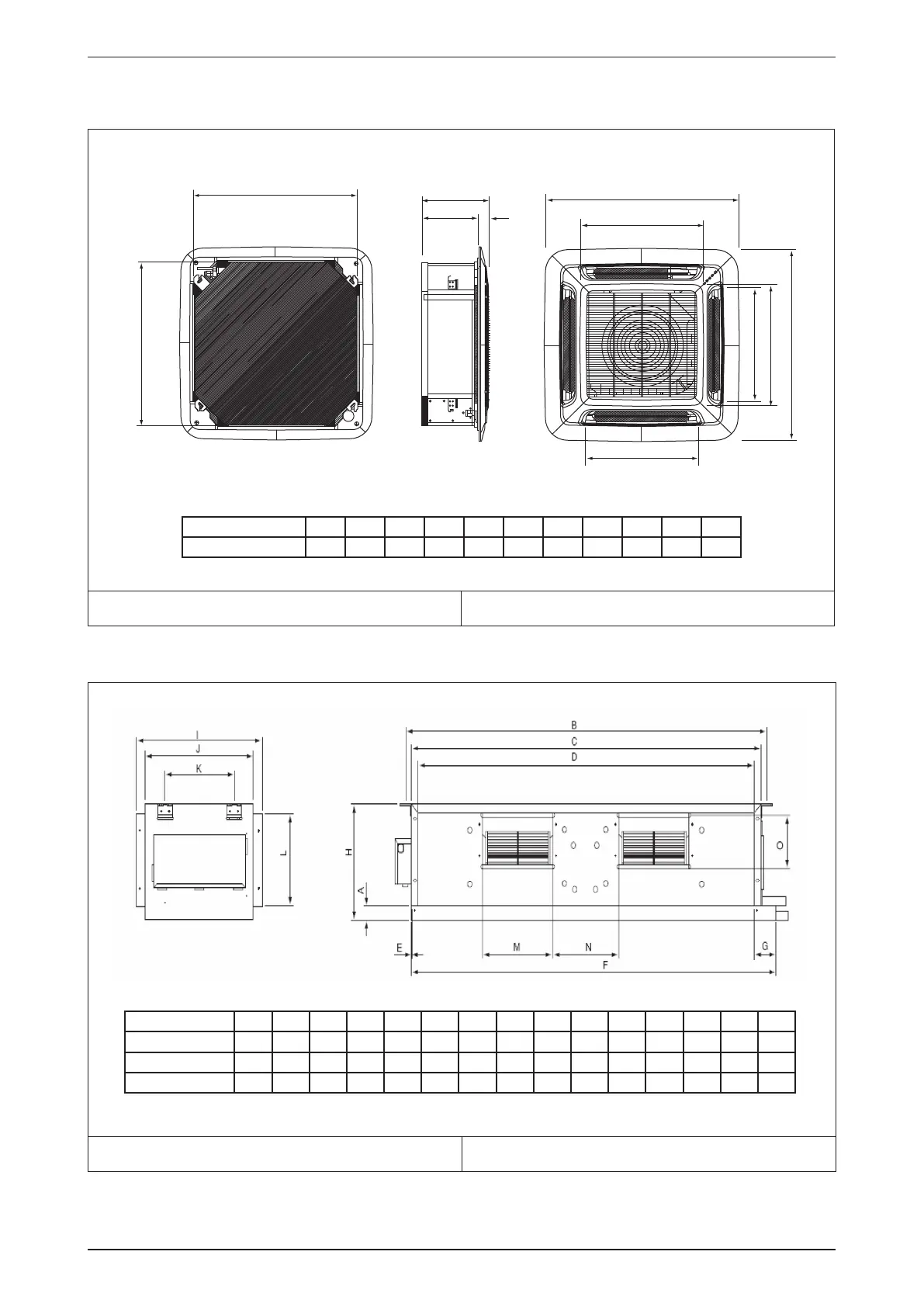

M5MSY_(i) Outline and Dimension
Indoor Unit
Model: M5CKY 20/25ER
A
B
C
D
E
F
H
K
J
I
G
Note: Dimension in mm
Indoor Unit
Model: M5CCY 10/15/20/25CR
Note: Dimension in mm
MODEL ABCDEFGH I JKLMNO
M5CCY 10/15CR 31 881 842 802 10 905 72 261 411 351 225 211 232 212,8 114
M5CCY 20CR 31 1041 1002 962 10 1065 72 261 411 351 225 211 232 212,8 114
M5CCY 25CR 31 1176 1137 1097 10 1200 72 261 411 351 225 211 232 212,8 114
MODEL A B C D E F G H I J K
M5CKY 20/25ER 820 820 350 290 60 990 990 627 627 607 607
