59

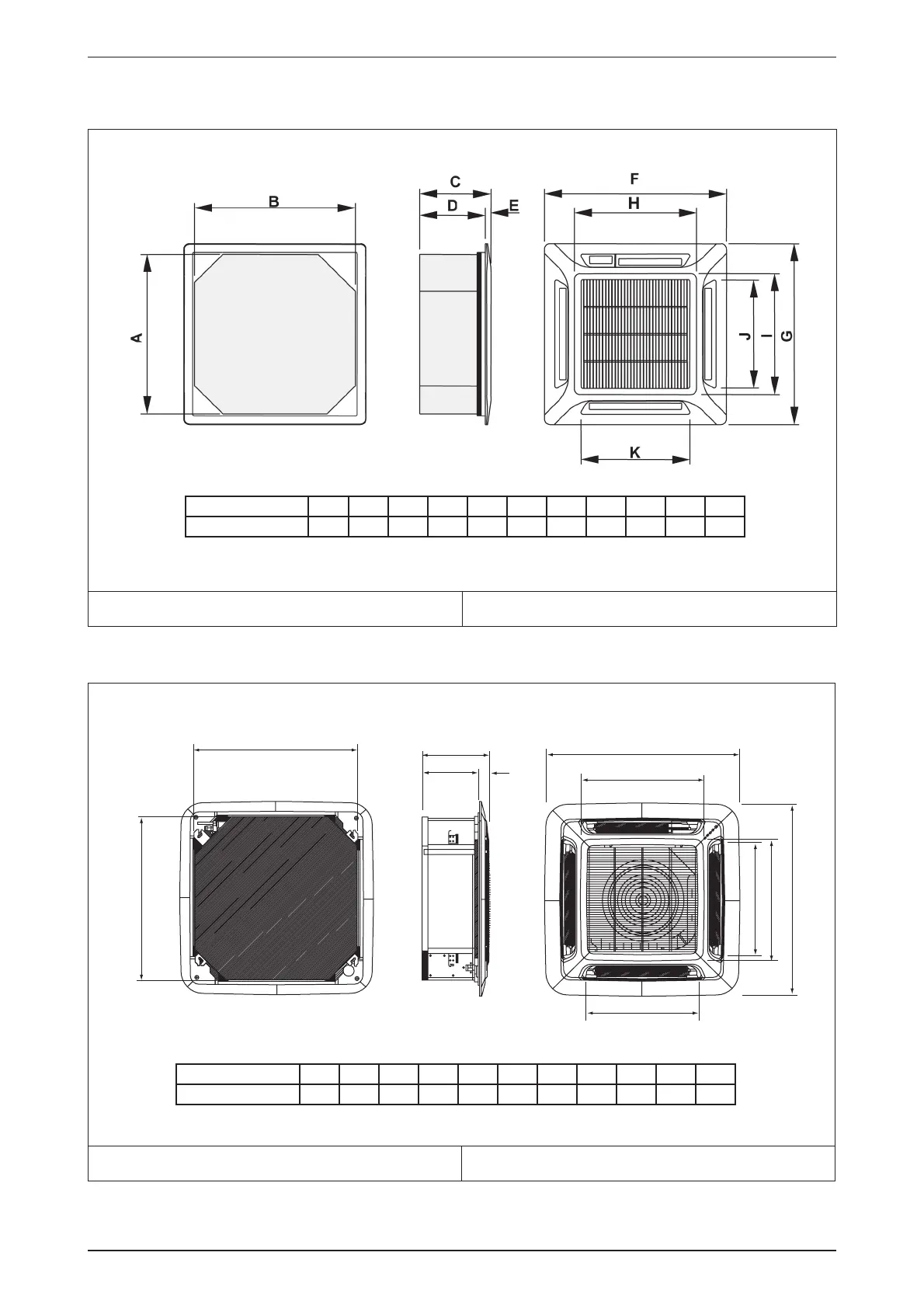

Outline and Dimension
M5MSY
-2010
Indoor Unit
Model: M5CKY 10/15/20CR
Note: Dimension in mm
Indoor Unit
Model: M5CKY 20/25ER
A
B
C
D
E
F
H
K
J
I
G
Note: Dimension in mm
MODEL
A
B
C
D
E
F
G
H
I
J
K
M5CKY 10/15/20CR
570
570
295
275
20
640
640
408
408
364
364
MODEL
A
B
C
D
E
F
G
H
I
J
K
M5CKY 20/25ER
820
820
350
290
60
990
990
627
627
607
607
61
63
Table of Contents
Table of Contents
3
Nomenclature
4
Indoor Unit
4
Outdoor Unit
6
Product Line-Up
7
Features
13
Application Information
14
Operating Range
14
Refrigerant Circuit Diagram
15
Controller
17
Installation Guideline
20
Engineering & Physical Data
45
General Data - Heat Pump
45
Components Data - Heat Pump
51
Performance Data
57
Outline and Dimension
60
Electrical Data
64
Wiring Diagram
66
Service and Maintenance
73
Troubleshooting
75
Exploded View and Part List
85
