McQuay M5MSY20BR - Outdoor Unit M5 MSY Exploded View

89

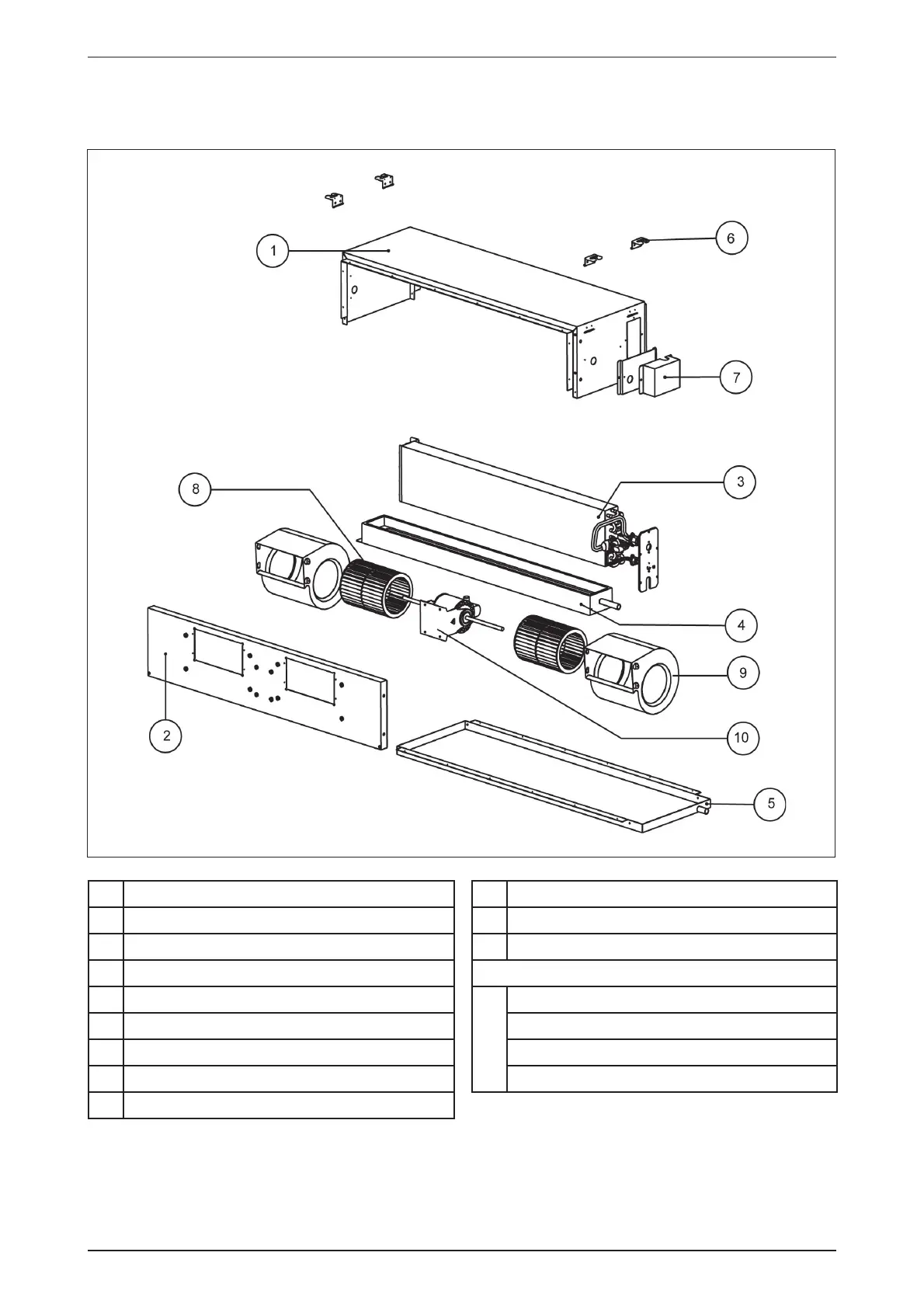

Exploded View and Part List M5MSY-2010
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
Indoor Unit
Model: M5CCY 10/15/20/25CR
No Description
1
Cabinet
2
Assy. Fan Deck
3
Assy. Heat Exchanger
4
Assy. Drain Pan
5
Assy. Secondary Drain Pan
6
Hanger
7
Control Module
8
Assy. Blower Right
No Description
9
Assy. Blower Left
10
Motor
Parts Not in Diagram
Handset, Wired
Air Filter
Holder, Thermistor
Clip, Coil Sensor
