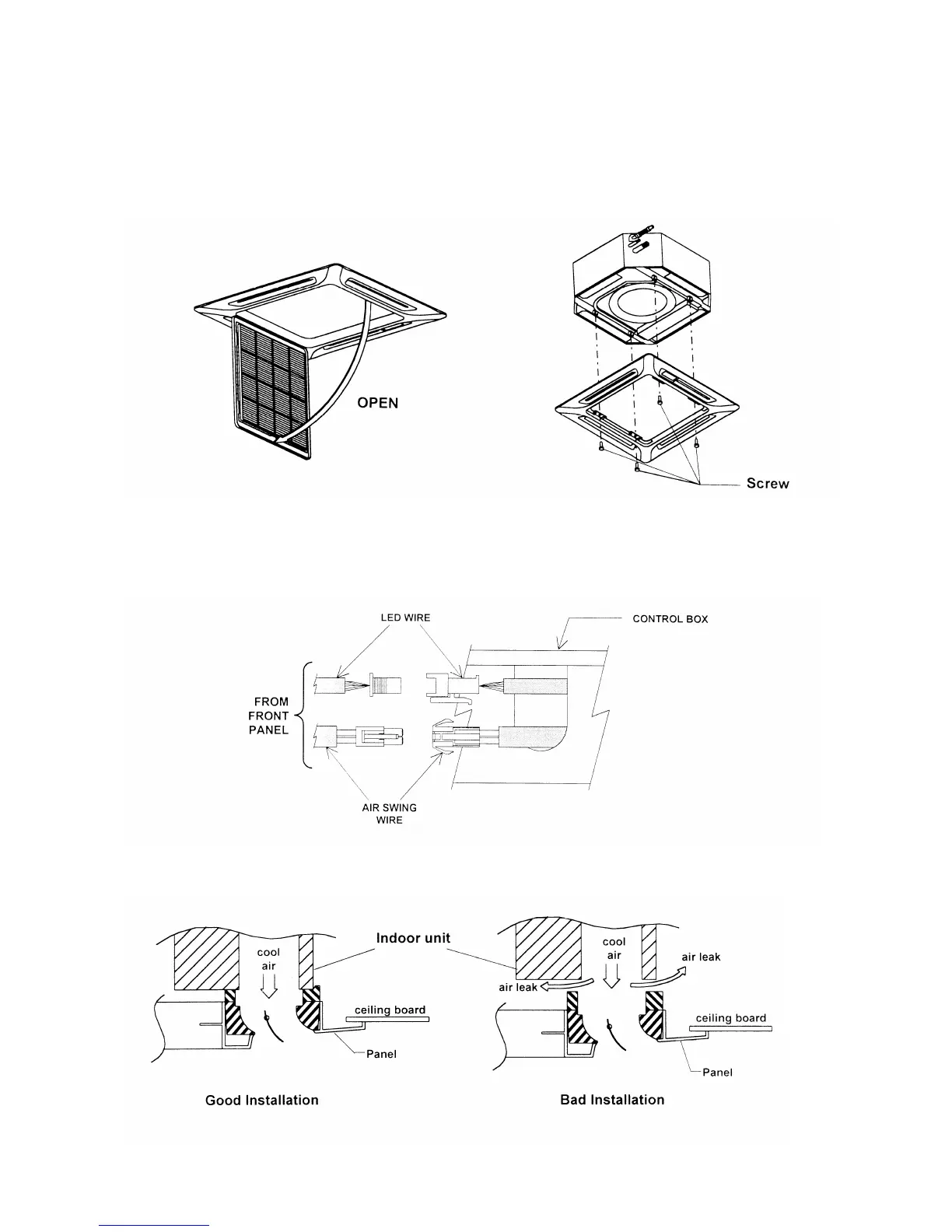

Panel Installation
• The front panel can only be fitted in one direction, follow the piping direction. (Follow piping arrow sticker
on front panel).
• Be sure to remove the installation template before installing the front panel.
Install the front frame panel onto the indoor unit by using 4 screws and tighten it completely to prevent
Connect the LED wire and air swing wire to the indoor unit (Optional).
ote: Install the front frame panel firmly to prevent cool air leakage which will cause condensation
• Open the air intake grille by pulling back the catchers and remove it together with filter from panel.
•
cool air leakage.
•
N
and water dripping.
76
