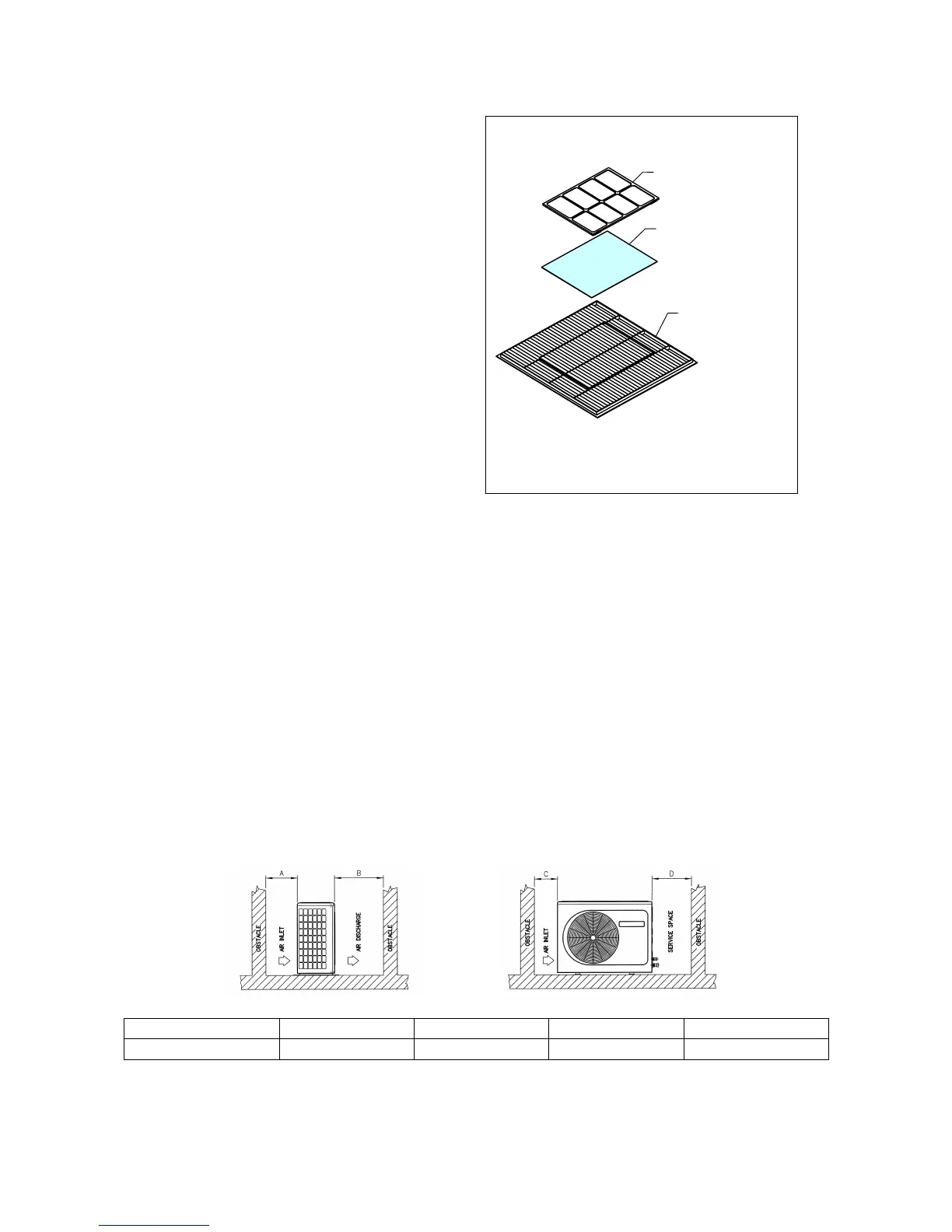

Air Intake Grille Installation
• Before installed the air intake grille, make
sure the air filter is clip properly to the air
intake grille.
• Install the air intake grille together with the air
filter to the front panel.
• The grille can be fit in any direction, when
selecting direction, the ceiling design and
grille operability should be considered.
• If the unit comes with ionizer filter (optional
item), make sure to fix the ionizer filter to the
air filter before installed the air intake grille.
• Fix the ionizer filter to the air filter with the
black side on top and white side at bottom.
• Carefully clip on the ionizer filter frame.
FRAME
(OPTIONAL ITEM)
IONIZER FILTER
(OPTIONAL ITEM)
FILTER
(STANDRAD ITEM)
Installation of Outdoor Unit
Preliminary Site Survey
• A place protected from rain, direct sunlight and well-ventilated wherever practicable.
• A place capable of carrying the weight of the outdoor unit and isolating noise and vibration.
• A place where there are no obstruction of air flow into or out the unit.
• Do not put any object which may block/reduce the air flow into or out the outdoor unit.
• The location must not be susceptible to high concentration of dust, oil, salt or sulfide gas.
Outdoor Unit Installation
Install the outdoor unit firmly and horizontally. Maintain a space clearance from the obstruction as shown in below for the
purpose of servicing and air ventilation.
All Models A B C D
Minimum Distance 300 mm 1000 mm 300 mm 500 mm
CAUTION : If the condensing unit is operated in an atmosphere containing oils(including machine oils),
salt(coastal area), sulphide gas(near hot spring, oil refinery plant), such substances may lead to
failure of the unit.
