Fresh Air Intake for MCK-C Unit
83

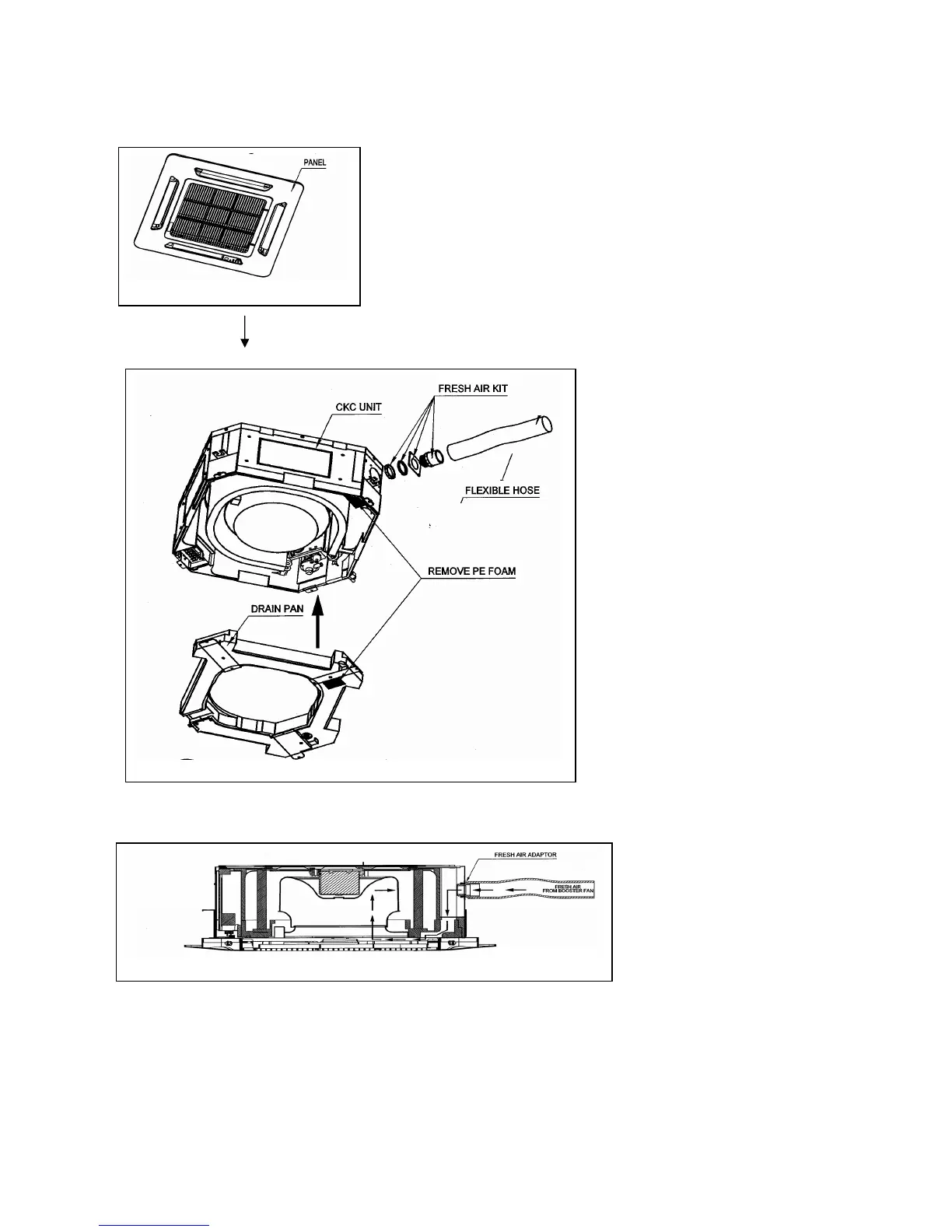

Figure 2
Figure 1
Take off the panel from the indoor unit.
Remove the PE foam from the
drain pan and another one on
the unit.
Remove the pre-punched
panel on the CKC unit with a
screwdriver.
Then, fix the fresh air kit (refer
to parts list) to the hole.
Finally, a flexible duct is
connected to let the fresh air
moving in.
Figure 3
The direction of fresh air intake is shown as figure 3.
