McQuay MCK 020A User Manual

COOL
DRY
HEATMED
HIGH
AUTO
MODE
TEMP
SENSOR
ON/OFF
SLEEP
LOW
TIMER
8
2
5
9
3
6
4
1
FAN
FAN ON/OFF
TEMP
SLEEP
TIMER MODE
7
1
2
3
4
5
6
1
0
7
SWING
SWING
FAN
SLM AC-5300 (Optional)

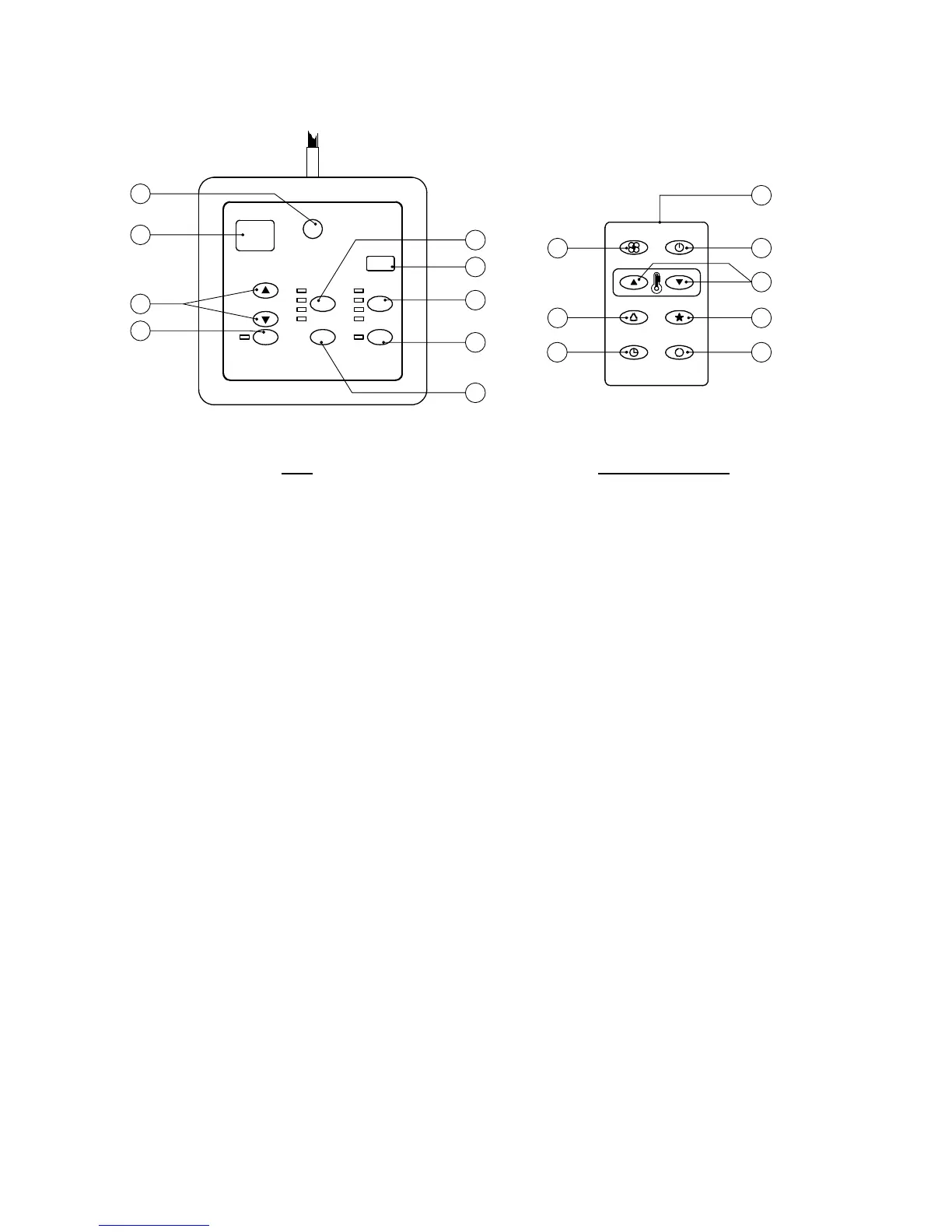

1. “ON/OFF” switch
• Press to start the air conditioner unit.
• Press again to stop the unit.
2. Temperature setting
• Set the desired room temperature.
• Press button to increase or decrease the
set temperature. Setting range are between
16
o
C to 30
o
C (60
o
F to 80
o
F).
3. Operation Modes
• Press the “mode” button for select the type
of operating mode.
- Cooling Only :
COOL, DRY, FAN
- Heat Pump :
AUTO, COOL, DRY, HEAT, FAN
(AUTO mode is represented by both
COOL and HEAT LED light on)
4. Fan Speed selection.
• Press the button until the desired fan speed
is achieved.
5. Timer.
• Press the set button to select the switch
timer of the air conditioner unit (the setting
range is between 1 to 10 hours).
6. “Sleep” mode
• Press button to activate the sleep function.
This function can only be activated under
“cool” or heating mode operation. When it is
activated under “cool” mode operation, the
set temperature will increase 0.5
o
C after 30
minutes, 1
o
C after 1 hour and 2
o
C after 2
hours. If it is activated under “HEAT” mode
operation, the set temperature will be
decreased 0.5° C after 30 minutes, 1° C
after 1 hour and 2° C after 2 hours.
7. Air Swing
• Press button to activate the automatic air
swing function.
8. Sensor
• Infra red sensor to receive signals from
wireless controller.
9. LED display
• To display the set temperature (in º C) and
timer delay setting (in hours).
10. Transmission source
• To transmit signals to the air conditioner.
