Air Duct Connection
Circulatory air pressure drop should be within External Static Pressure
Galvanized steel air ducts are suitable
Make sure there is no leak of air.
Airductshouldereproof,refertoconcernedcountrynationalandlocalregulations.
Pipe Connection
Usingsuitablettingsaswaterpipeconnections.Refertothespecication
The water inlet is on the bottom while outlet on top.
The connection must be concealed with rubberized fabric to avoid leakage.
Drainpipe can be PVC or steel.
The suggested slope of the drainpipe is at least 1:50.
Wiring
1) Wiringconnectionmustbedoneaccordingtothewiringdiagramontheunit.
2) TheunitmustbeGROUNDEDwell.
3) Anappropriatestrainreliefdevicemustbeusedtoattachthepowerwirestotheterminalbox.
4) A7/8”knockoutholeisdesignedontheterminalboxforeldinstallationofthestrainreliefdevice.
5) Fieldwiringmustbecompliedwiththenationalsecurityregulations.

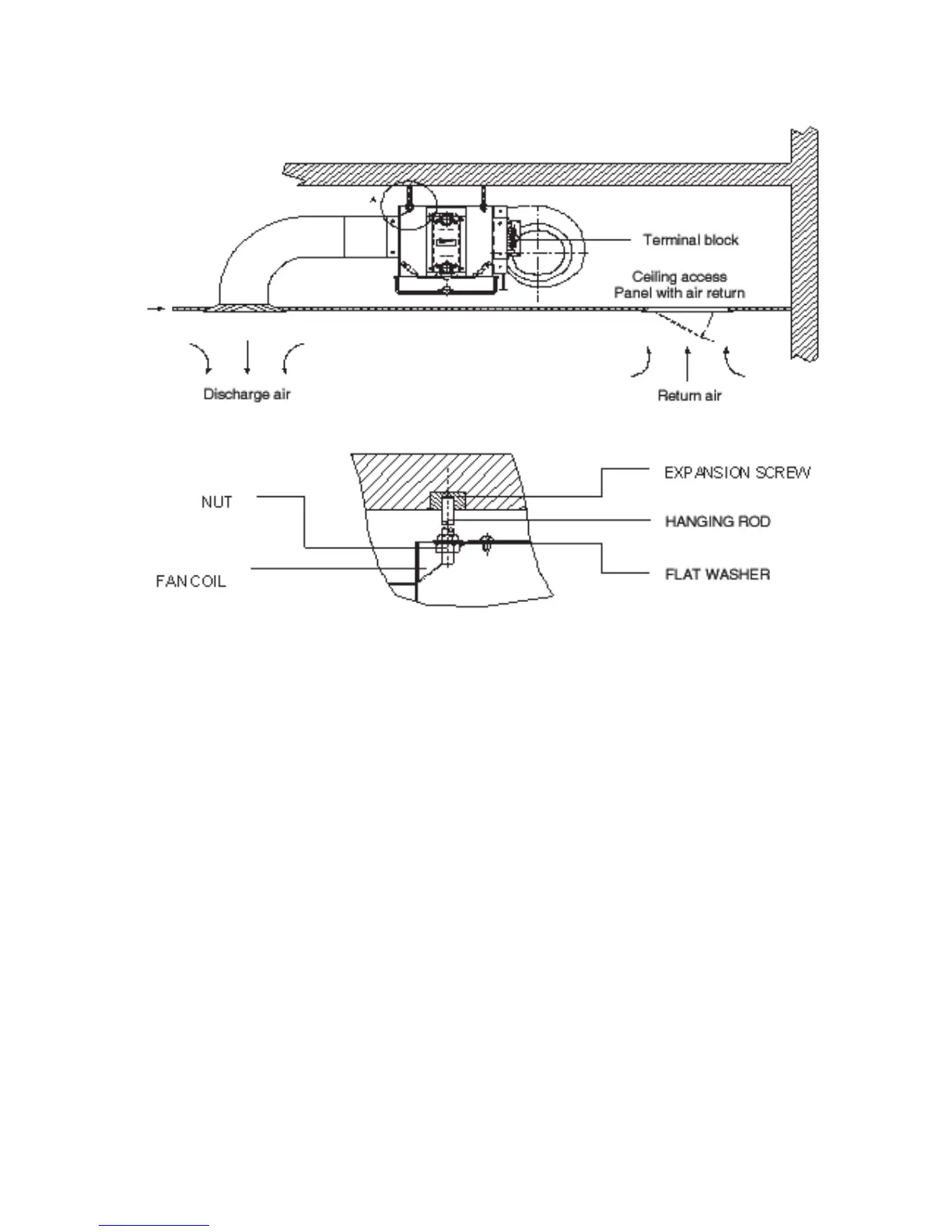

Fig.2 WITH AND WITHOUT PLENUM FORM:
