105

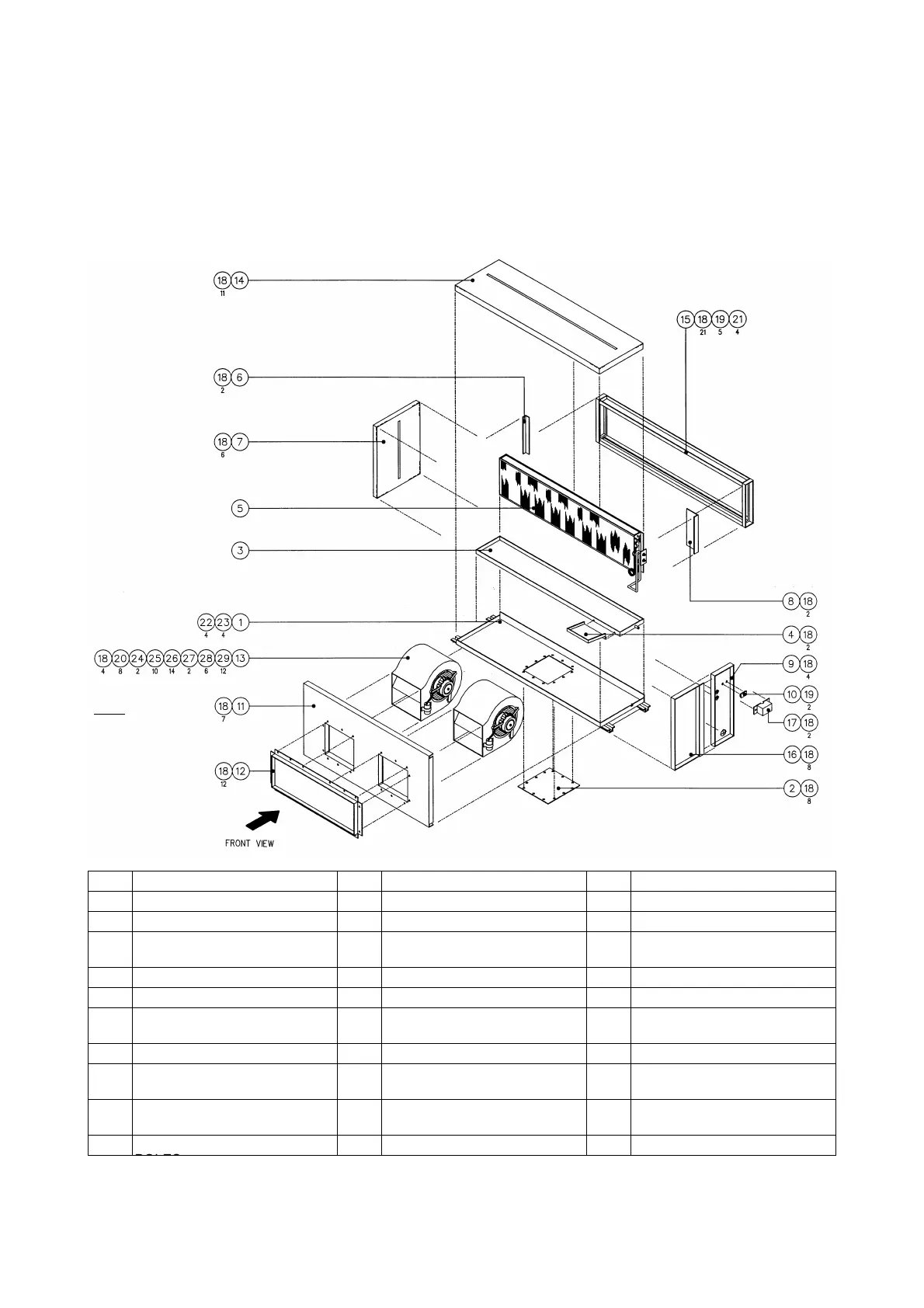

Part List
COOLING MODEL (INDOOR)
HORIZONTAL AIR DISCHARGE
MODEL : MDB 075B
NO DESCRIPTION NO DESCRIPTION NO DESCRIPTION
1 ASSY., BASE PAN 11 ASSY., FRONT PANEL 21 SCREW, TRUSS HEAD PHILIP
2 PANEL, BASE COVER 12 ASSY., BLOWER FLANGE 22 SCREW, WOOD
3 ASSY., DRAIN PAN 13
ASSY., BLOWER HSG. AND
MOTOR
23 WASHER, PLAIN
4 ASSY., DRAIN PAN SMALL 14 ASSY., TOP PANEL 24 BOLT, HEXAGON
5 ASSY., COIL 15 ASSY., FILTER SECTION 25 WASHER, PLAIN
6
ASSY., COIL SIDE COVER
LEFT
16
ASSY., SIDE PANEL RIGHT
BIG
26 WASHER. SPRING
7 ASSY., SIDE PANEL LEFT 17 TERMINAL COVER 27 NUT, HEXAGON
8
ASSY., COIL SIDE COVER
RIGHT
18
SCREW, S.T. TRUSS HEAD
PHILIP
28 GROMMET, MOTOR
9
ASSY., SIDE PANEL RIGHT
SMALL
19
SCREW, SELF TAPPING PAN
HEAD
29 NUT, HEXAGON
10
ASSY., TER. BLK 20A 8
20 SCREW, TRUSS HEAD PHILIP
NOTE :
1) WITH CONTACTOR
2) WITH TORIN FORWARD
CURVE BLOWER
3) WITH ALCO
THERMOSTATIC
EXPANSION VALVE
4) WITH PE INSULATION
5) FOR 220-240V/1PH/50Hz
6) FOR LOCAL AND EXPORT
SPEC.
