McQuay MDS030AR User Manual

-23-
Design & installation Guide For McQuay MDS Multi System

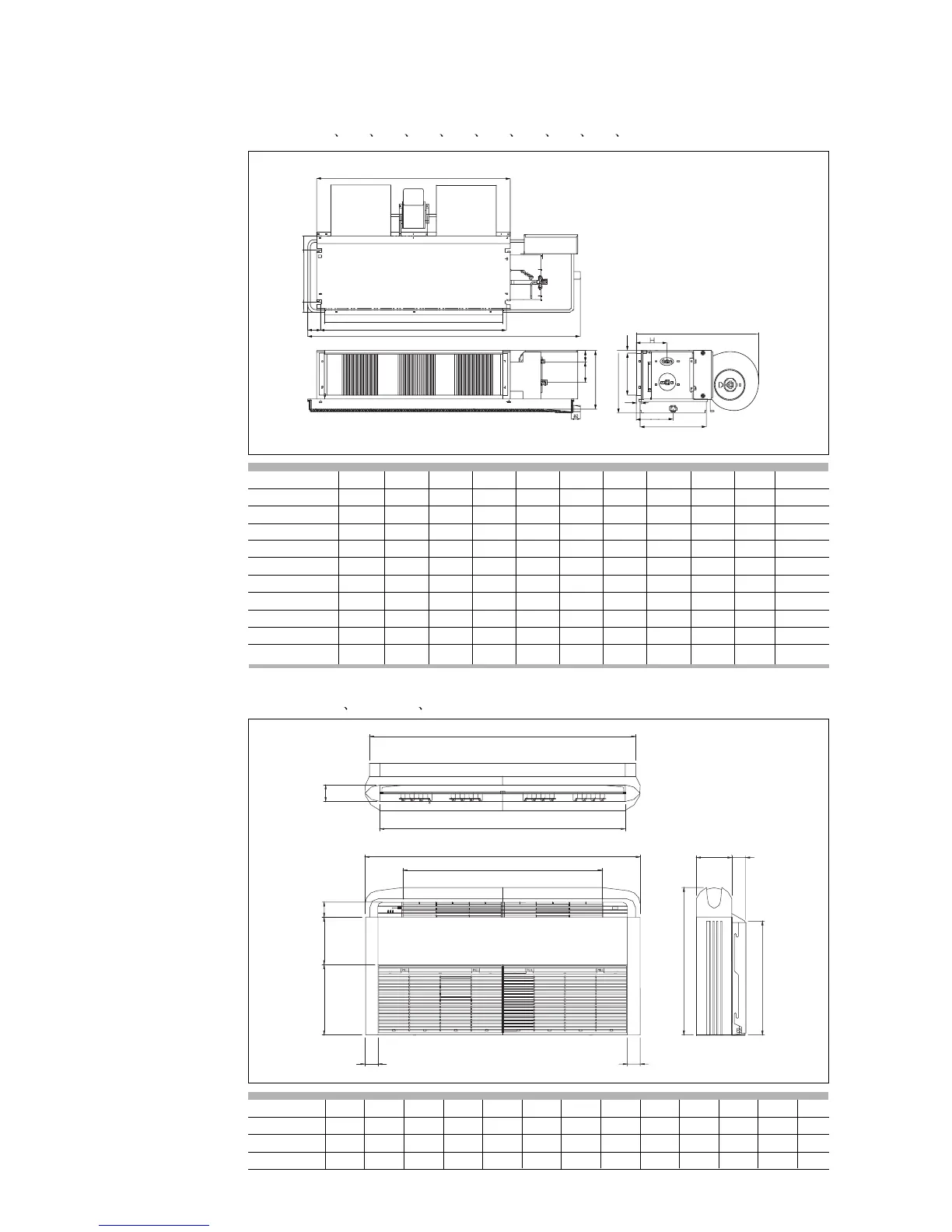

1.9.4 MCC008 010 015 018 020 025 030 040 050 060T
1.9.5 MCM020T MCM030T MCM050T
A
B
C
D
EF
G
H H
J
N
KL
M
Unit: mm
Unit: mm
Model A B C D E F G H J K L M N
MCM020T 1174 75 1082 68 58 156 1214 57 670 216 319 879 517
MCM030T 1174 75 1082 68 93 156 1214 57 670 216 319 879 517
MCM050T 1674 75 1582 68 93 156 1714 57 670 216 319 1379 517
20
253
141
151
1
G
J
A
B
C
5218737
47
D
F
F
75
Model A B C D E F G H I J No.of fans
MCC008T 690 722 1054 751 39 210 469 118 9 220 2
MCC010T 690 722 1054 751 39 210 469 118 9 220 2
MCC015T 690 722 1054 751 39 210 469 118 9 220 2
MCC018T 950 981 1314 1005 32 248 490 81 14 251 2
MCC020T 950 981 1314 1005 32 248 490 81 14 251 2
MCC025T 950 981 1314 1005 32 248 490 81 14 251 2
MCC030T 950 981 1314 1005 32 248 490 81 14 251 2
MCC040T 1300 1331 1664 1355 32 248 490 81 14 251 3
MCC050T 1300 1331 1664 1355 32 248 490 81 14 251 3
MCC060T 1560 1591 1924 1615 32 248 490 81 14 251 4
