Design & installation Guide For McQuay MDS Multi System
Four-way valve
Outdoor
Filter Filter
Electronic expansion valve
Filter
Filter
PWM
LPS
HPS
Cooling flow
Heating flow
Dry filter
indoor
Electronic expansion valve
Check valve
Digital compressor
Outdoor heat exchanger 
Electronic expansion valve
Indoor unit 1Indoor unit n
Accumulator
Liquid receiver
MDS030AR MDS040AR MDS050AR MDS060AR

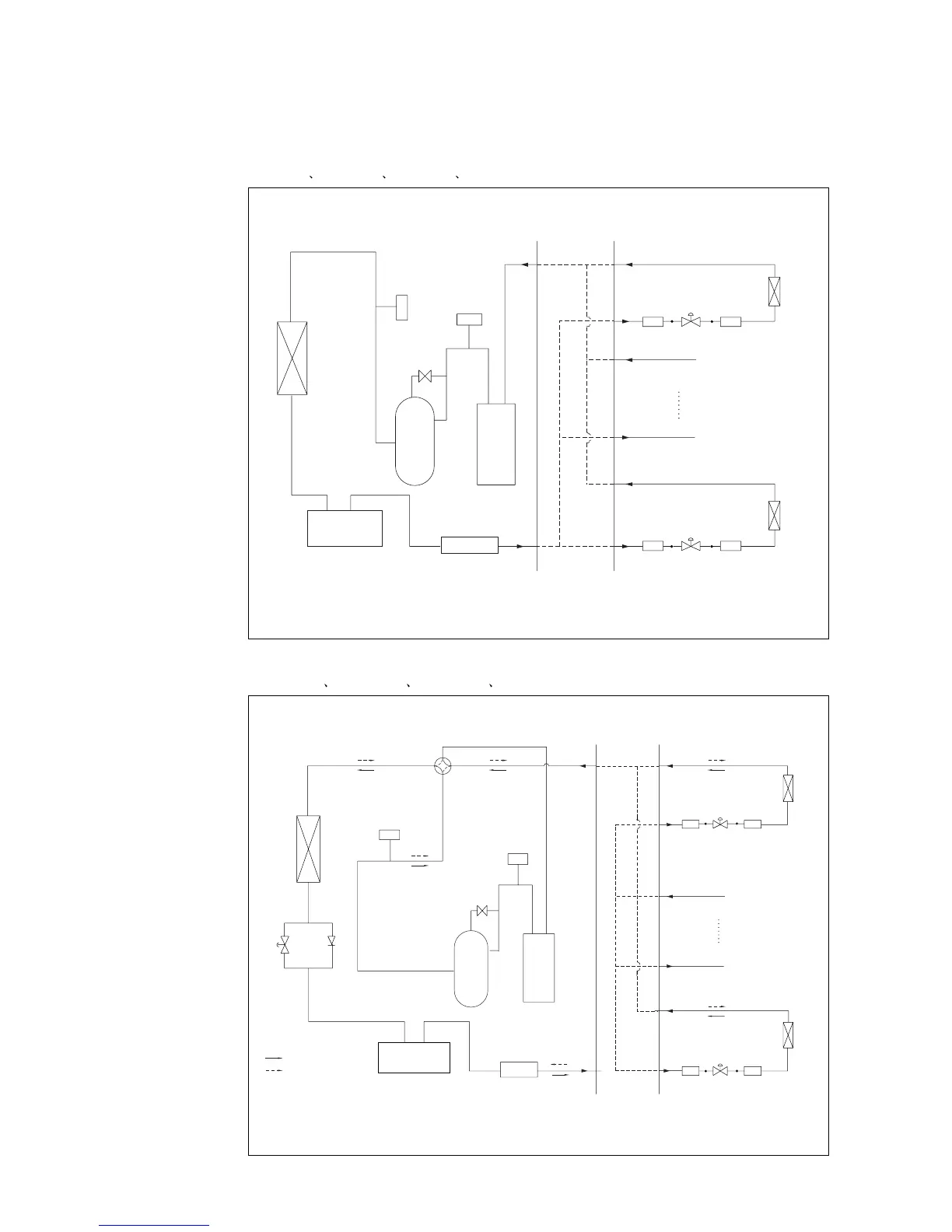

1.2.3 Diagram of the Unit System
HPS
LPS
PWM
Dry filter
Filter
Filter
indoor
Outdoor
Electronic expansion valve
Filter Filter
Outdoor heat exchanger
Digital compressor 
Indoor unit 1
Electronic expansion valve
Indoor unit n
Accumulator
Liquid receiver
MDS030A MDS040A MDS050A MDS060A
Note: The MDS030AR unit excludes the reservoir.
Note: The MDS030A unit excludes the reservoir.
