-65-
Design & installation Guide For McQuay MDS Multi System
Unit: mm

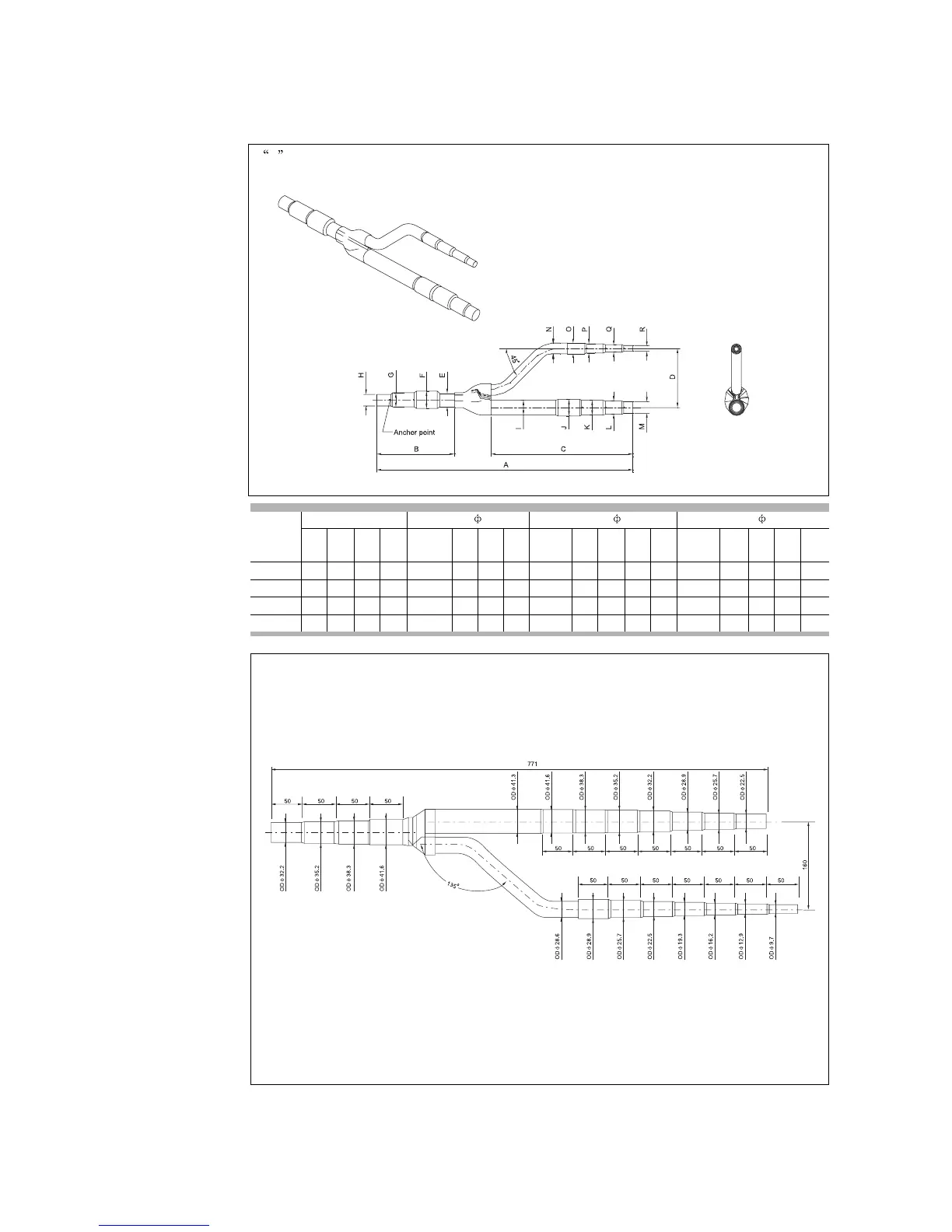

Refnet joint type selection
Y type
Type: MDS-Y5
Unit: mm
Refnet
Length (mm) Diameter
(mm) Diameter (mm) Diameter (mm)
joint type
ABCD
E(outer
FG H
I
(outer
JKLM
N
(outer
OPQ R
diameter)
diameter)
diameter)
MDS-Y1 553 172 293 120 28.6 28.9 25.7 22.5 28.6 28.9 25.7 22.5 19.3 22.2 19.3 16.1 12.9 9.7
MDS-Y2 420 142 223 80 15.88 16.1 12.9 9.7 12.7 12.9 9.7 6.5 12.7 12.9 9.7 6.5
MDS-Y3 420 142 223 80 15.88 16.1 12.9 9.7 12.7 12.9 9.7 6.5 15.88 16.1 12.9 9.7
MDS-Y4 493 142 223 80 22.2 22.5 19.3 16.1 19.1 19.3 16.1 12.9 9.7 19.1 19.3 16.1 12.9
