-76-
Design & installation Guide For McQuay MDS Multi System
Installation of MCM-T Series Indoor Unit
To Check the Accessories are Ready

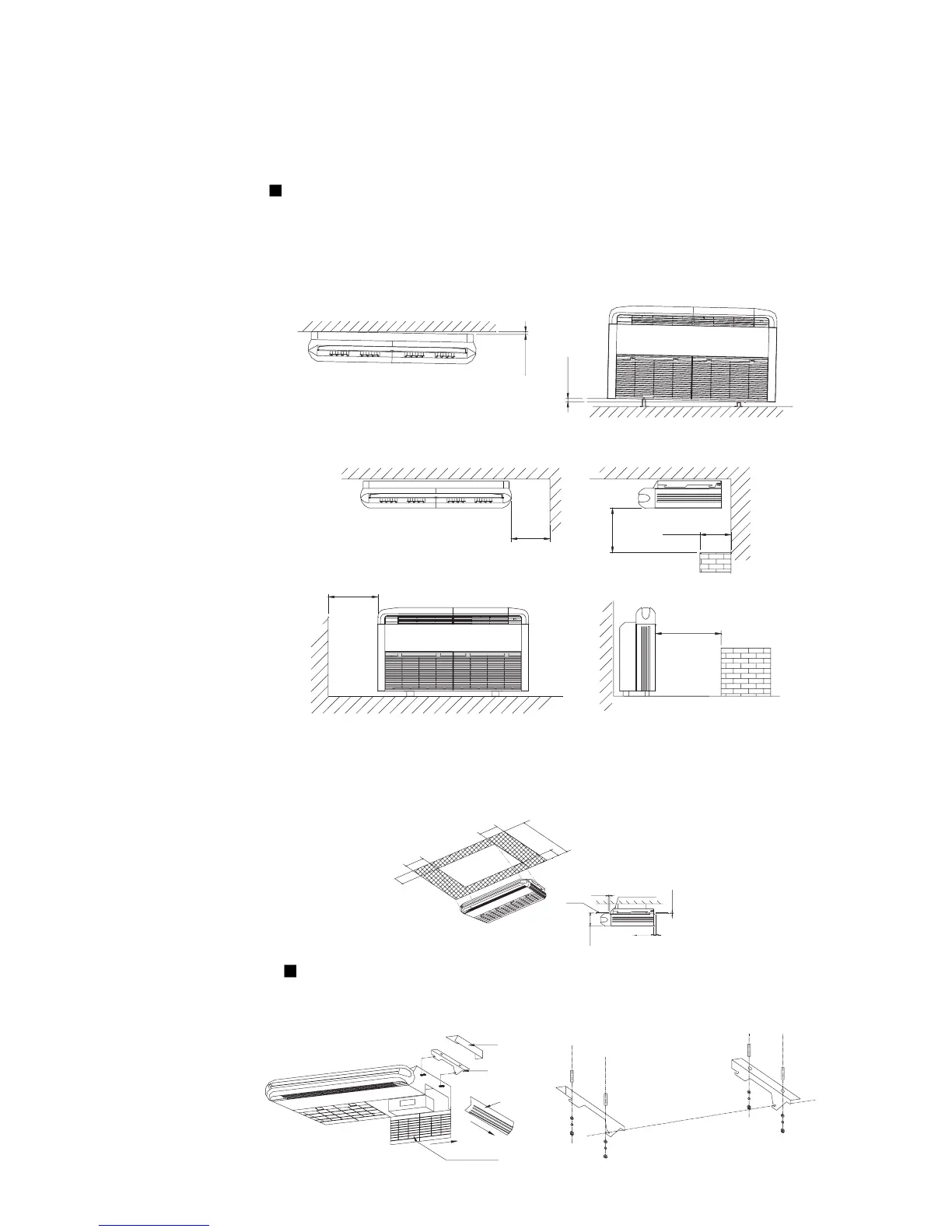

To install the indoor unit
There are two types of installation. Make sure the hook can bear the unit weight in ceiling
mounting; a slope for the drainage direction is a must both for ceiling/floor standing mounting;
ensure there is enough space for maintenance around the unit.
There are two type of installation: vertical floor standing or horizontal ceiling mounting:
return air grill
frame
suspending panel
side panel
ceiling mounting
floor standing mounting
10mm
10mm
Ľ300mm
ļ250mm
Ľ
5
0
0
m
m
ceiling mounting
Ľ400mm
PULL PULL PULL PULL
Ľ1000mm
floor standing mounting
Horizontal ceiling mounted
1. To remove the return air grill, frame, side panel and suspending panel as shown as below:
If the indoor unit is semi-concealed mounted in ceiling, reserve holes in ceiling to ensure
enough space for mounting and maintenance, as shown below:
To Next Page
