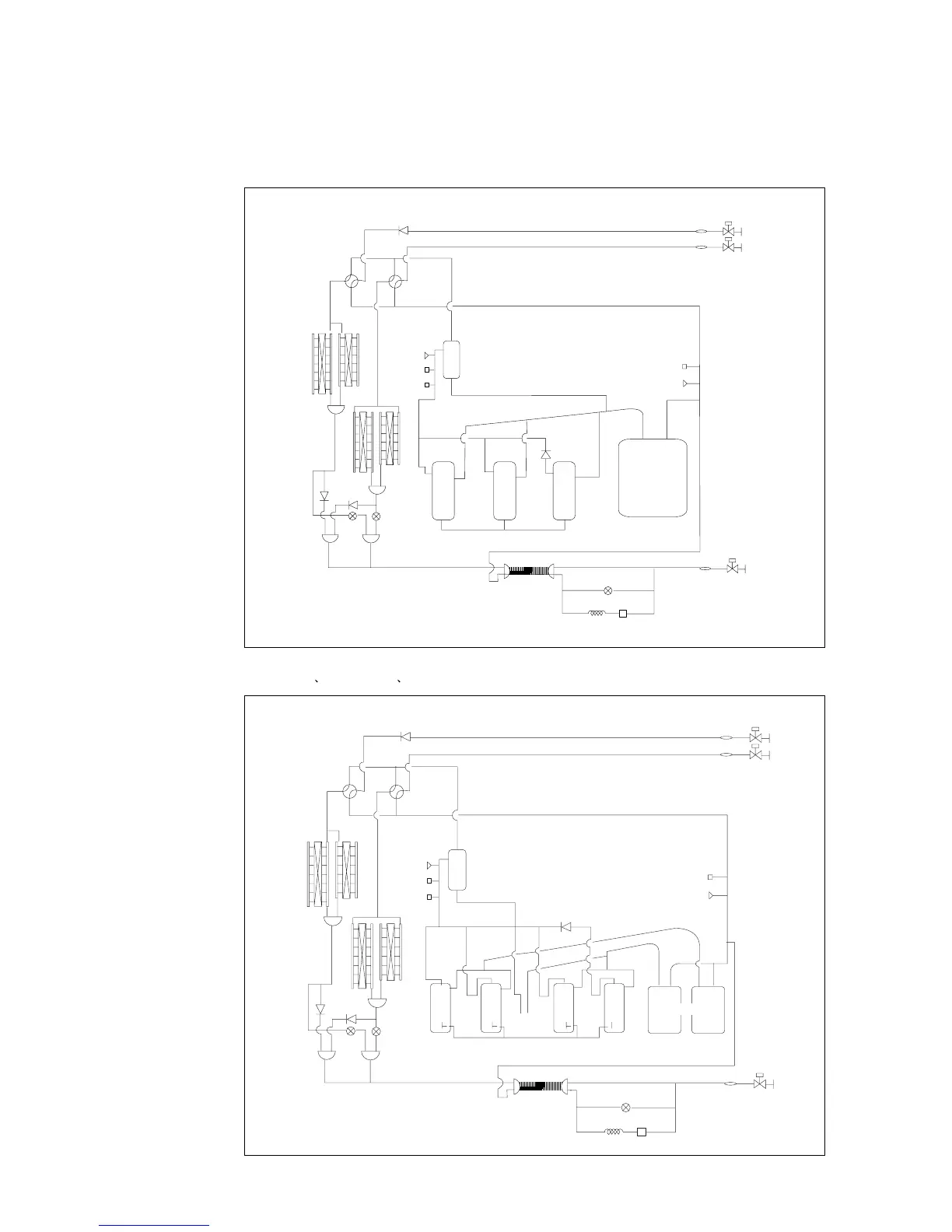

Design & installation Guide For McQuay MDS Multi System
MDS200BR MDS220BR MDS240BR
Oil crock
High pressure sensor
Electronic expansion valve
Filter
Low pressure sensor
Pressure tapping point
Filter
Filter
Oil separator
Standard compressorStandard compressorStandard compressor Digital compressor
Heat exchanger
Heat exchanger
High pressure switch
Pressure tapping point
Four-way valve
Four-way
valve
Capillary Dry filter
Electronic expansion valve
Check valve
Check valve
Check valve
Ball valve
Ball valve
Accumulator
MDS180BR
High pressure sensor
Electronic expansion valve
Filter
Low pressure sensor
Pressure tapping point
Filter
Filter
Oil separator
Standard compressorStandard compressor Digital compressor
Heat exchanger
Heat exchanger
High pressure switch
Pressure tapping point
Four-way valve
Four-way
valve
Capillary Dry filter
Electronic expansion valve
Check valve
Check valve
Check valve
Ball valve
Ball valve
Ball valve
Accumulator
