Selection of an Installation Location
Such a place where cool air can be distributed throughout the room.
Such a place where condensation water is easily drained out.
Such a place that can support the weight of indoor unit.
Such a place which has easy access of maintenance.
Such a place which is easy to connect the outdoor unit.
Such a place which is 1m or more away from other electric appliances such as television, audio device, etc.
Avoid a location where there is heat source, high humidity or inflammable gas.
Do not use the unit in the immediate surroundings of a laundry, a bath, a shower or a swimming pool.
Ensure that the installation conform to the installation dimension diagram.

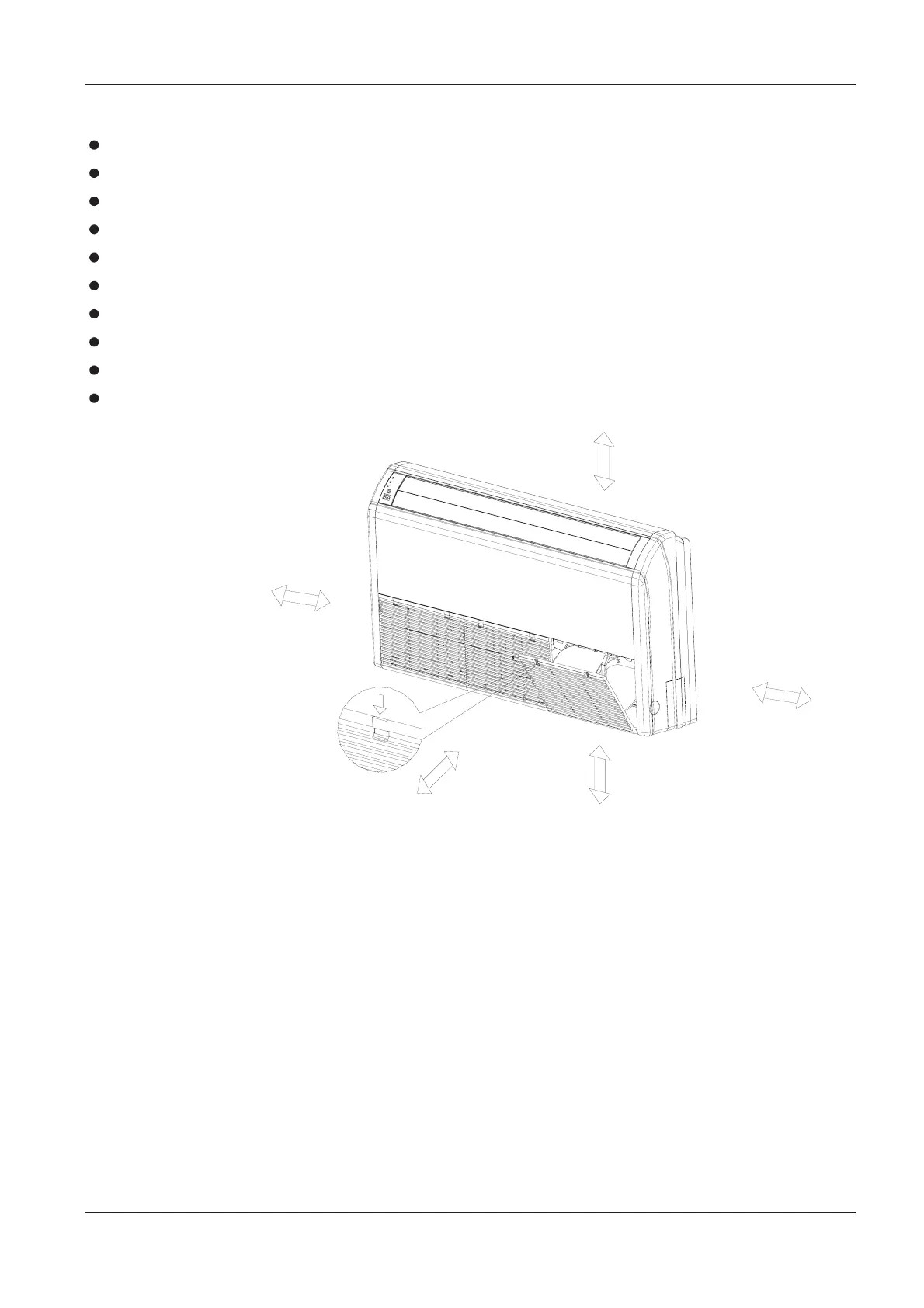

The space around the unit is adequate for ventilation (see Fig. 11-3).
60cm or more
150cm or more
100cm or more
30cm or more
60cm or more
Fig. 11-3
There are two types of installation: Ceiling Type and Floor Type
Each type is similar to the other as follows:
Determine the mounting position on the ceiling or the wall by using the paper pattern to indicate the indoor
frame. Mark the pattern and pull out the paper pattern. Remove the return grill, the side panel and the hanger bracket
from the indoor unit as per procedures below.
1. Press the fixing knob of the return grilles and it opens widely, and then pull it out from the indoor unit.
2. Remove the side panel fixing screws by pulling it out at the front direction (arrow direction). (See Fig.
11-4)
