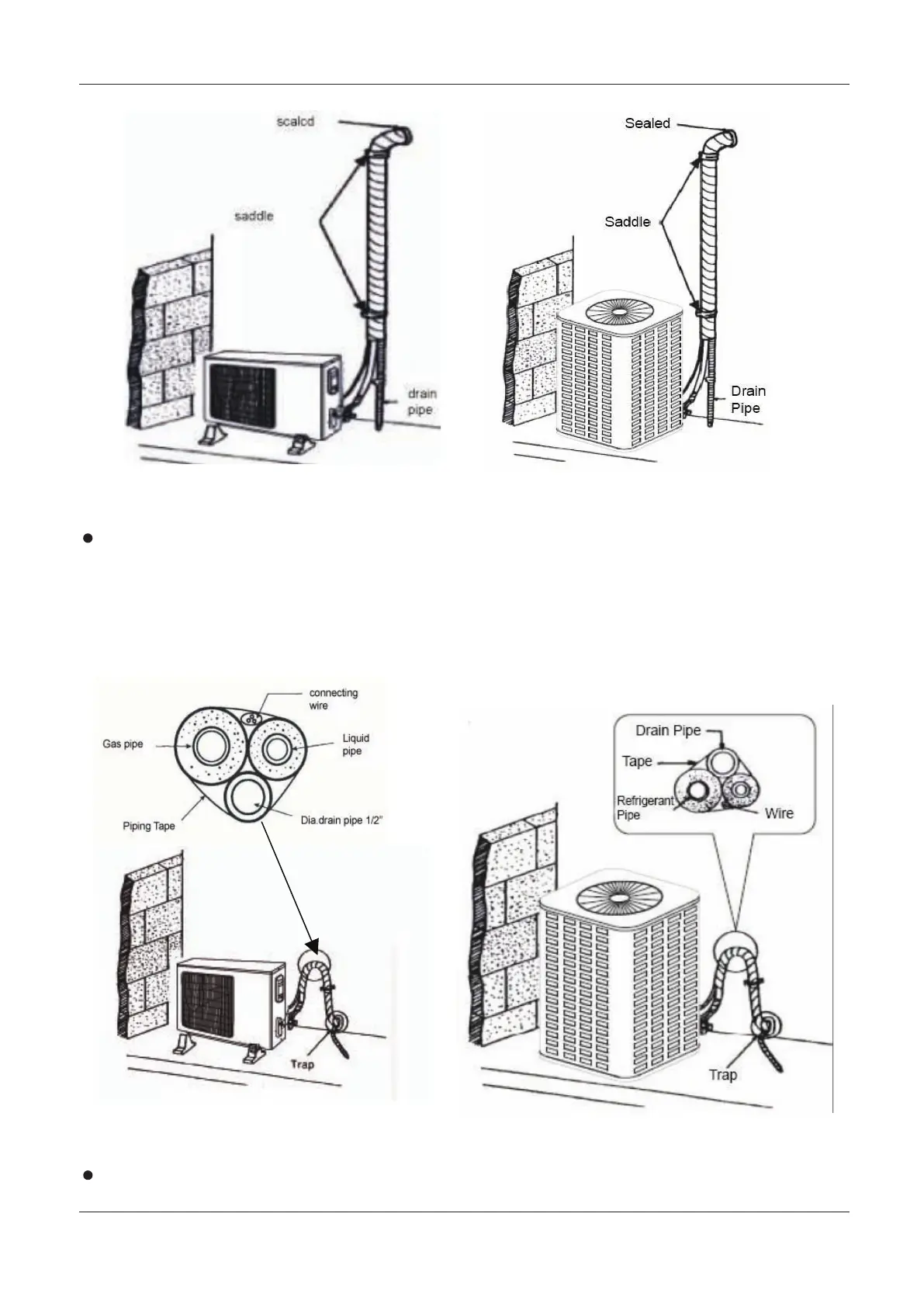

Fig. 11-21
If the outdoor unit is installed higher than the indoor unit (refer to Fig. 11-22)
(1) Taping should be done from lower to the upper part.
(2) All pipes are bound and taped together and also should be trapped to prevent water from returning to the
room (See Fig.11-22).
(3) Restraint all pipes to the wall with saddles
Fig. 11-22
Drainage Pipeline
(1) The drain pipe outlet direction can be chosen from either the right rear or right.
46
