(2) The diameter of the drain pipe should be equal to or greater than the diameter of the connecting pipe.
(Vinyl tube: pipe size:20 mm, outer dimension: 26mm)

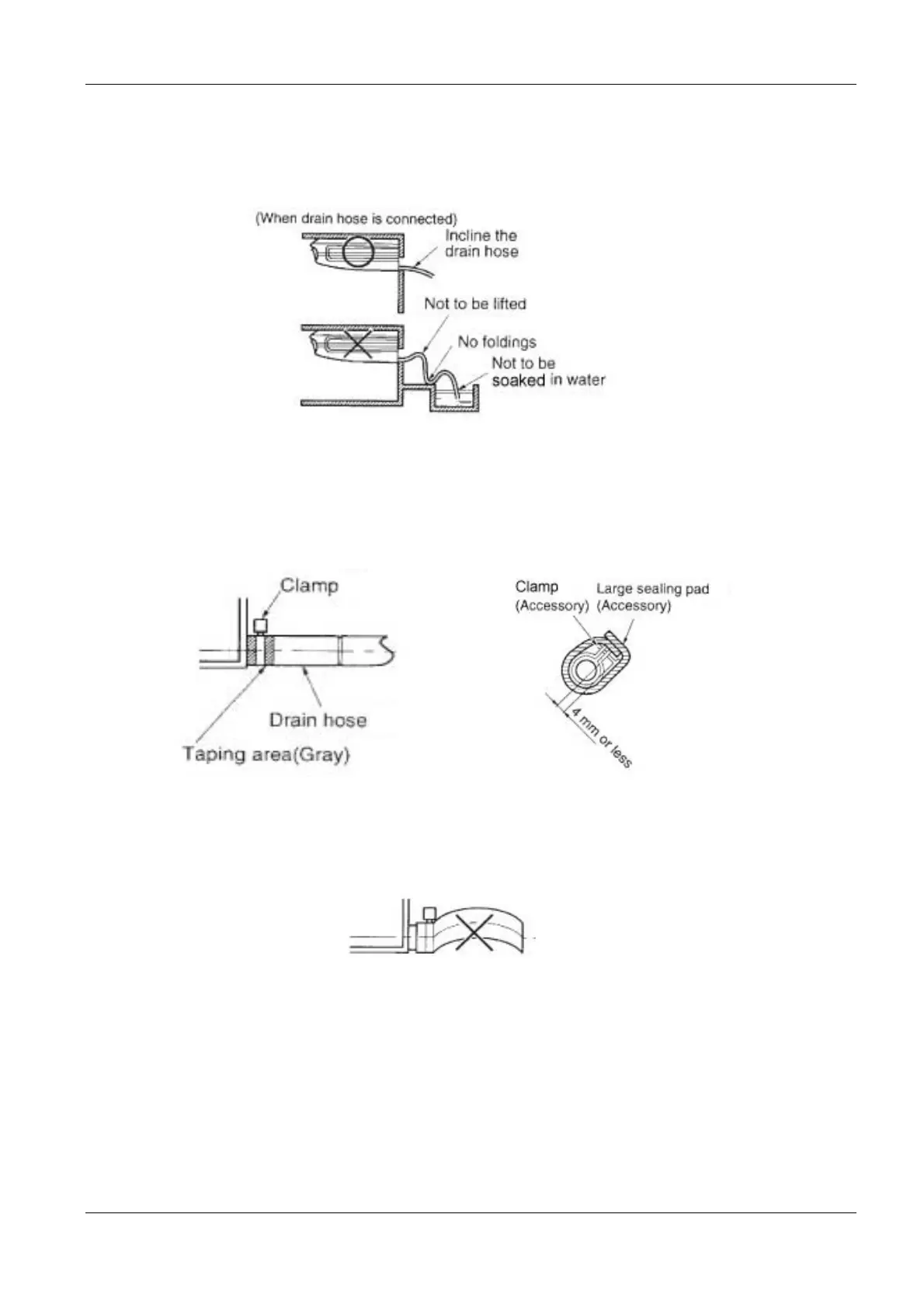

(3) Keep the drain pipe as short as possible and incline downwards at a gradient of at least 1/100 to prevent
air pockets (refer to Fig. 11-23)
Fig. 11-23
(4) Use the drain hose and clamp. Insert the drain hose completely into the drain socket, and tighten the clamp
within the range of the gray tape unit the screw head is less than 4mm above the hose (refer to Fig. 11-24,
Fig. 11-25)
Fig. 11-2 4 Fig. 11-25
(5) Insulate the clamp and drain hose by wrapping the sealing pad over them.
(6) No folding of the drain hose is allowed in the indoor unit. (refer to Fig. 11-26)
Fig. 11-26
z Confirm that smooth drainage is achieved after the pipe working.
Inject 600cc water into the drain pan from the air outlet to see if the drainage goes well or not. (refer to Fig.
11-27)
To Next Page
