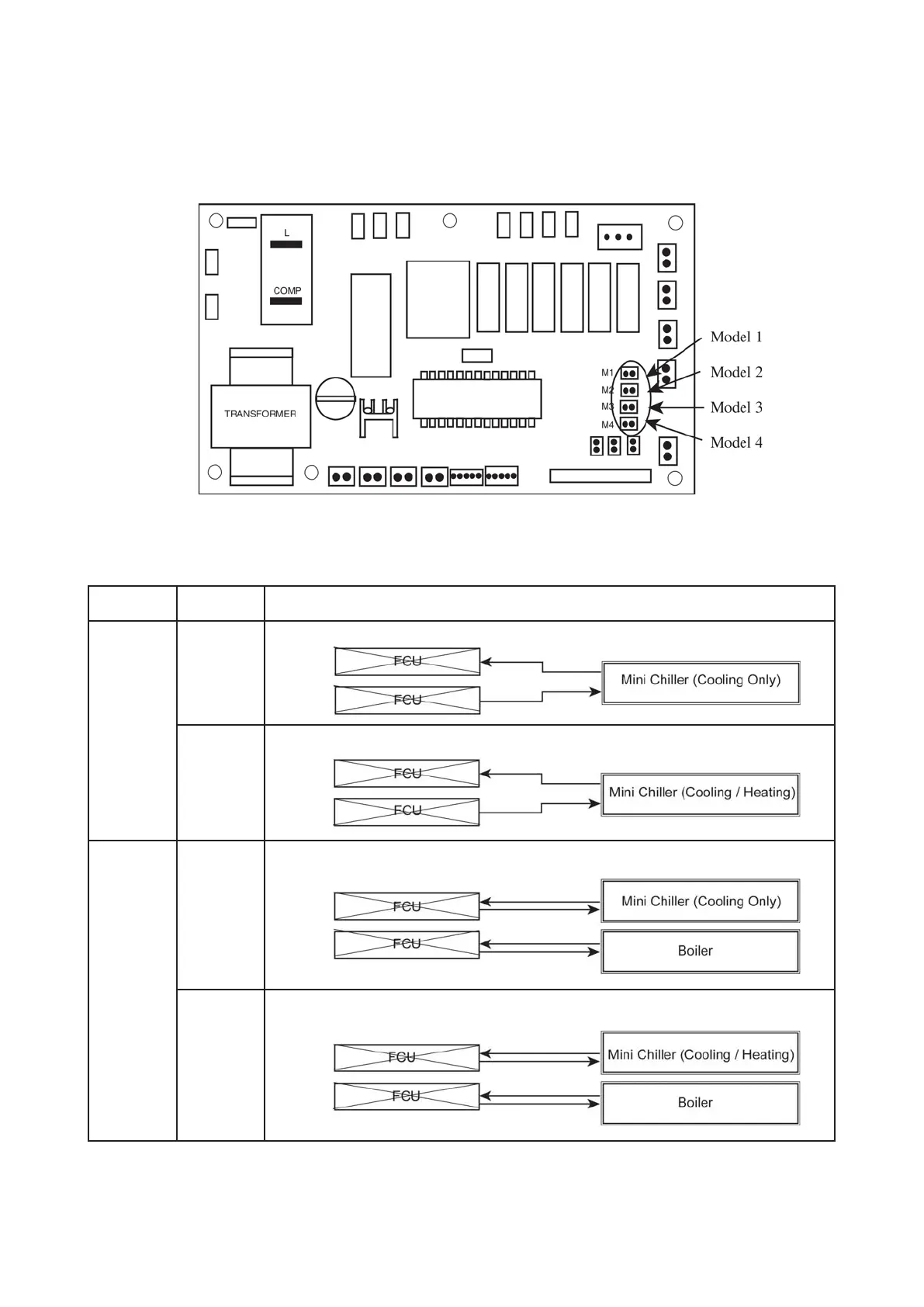

MCK-AWH 4 pipes system controller board setting
A) Model selection
The standard controller board (W2.0) comes with a default setting for model selection. Please select the model
accordingly by using jumper.
System Model Function
2 Pipe
System
4 Pipe
System
M1 -
Model 1
M2 -
Model 2
M2 -
Model 2
M4 -
Model 4
Cooling or Heating
Cooling or Heating with Auxiliary Heater
Cooling Only with Boiler
Cooling or Heating with Boiler
