Nomenclature
PROPELLER FANS
LOW POWER CONSUMING
AIR COOLED CONDENSER
AL
-
089 A D
REFRIGERANT CIRCUITS
(D=Dual;
S=Single)
DESIGN VINTAGE
NOMINAL CAPACITY (TONS)
Inspection
When the equipment is received,
all items should be carefully checked
against the bill of lading to insure a complete shipment.
All units
should be carefully inspected for damage upon arrival.
All shipping
damage should be reported to the carrier and a claim should be filed.
The unit serial plate should be checked before unloading the unit to
be sure that it agrees with the power supply available.
INSTALLATION
Handling
Care should be taken to avoid rough handling or shock due to dropping
the unit.
Do not push or pull the unit from anything other than the
base,
and block the pushing vehicle away from the unit to prevent
damage to the sheet metal cabinet.
(See Figure 1.)

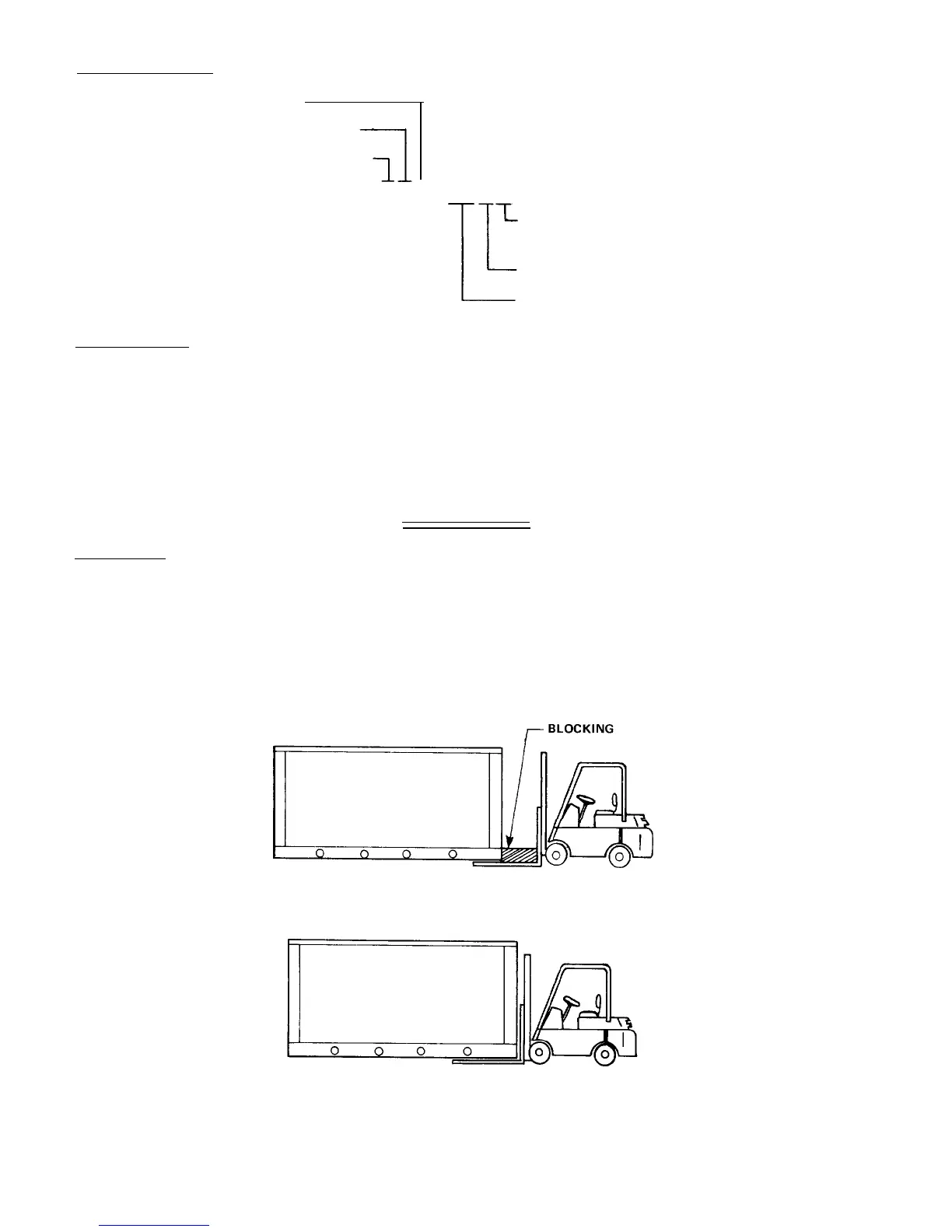

FIGURE 1
SUGGESTED PUSHING ARRANGEMENT
GOOD PUSHING ARRANGEMENT
CABINET DAMAGE UNLIKELY
POOR PUSHING ARRANGEMENT
CABINET DAMAGE LIKELY
