Vibration Isolators
Vibration isolators are recommended for all roof mounted installa-
tions or wherever vibration transmission is a consideration.
Table
2 lists spring isolators for all ALP unit sizes.
Figure 4 shows
isolator locations in relation to the unit control center.
Figure 5
gives dimensions that are required to secure each
McQuay
isolator
selection to the mounting surface.
Table 3 shows the isolator loads at each location shown in Figure 4
and the maximum loads for each McQuay selection.

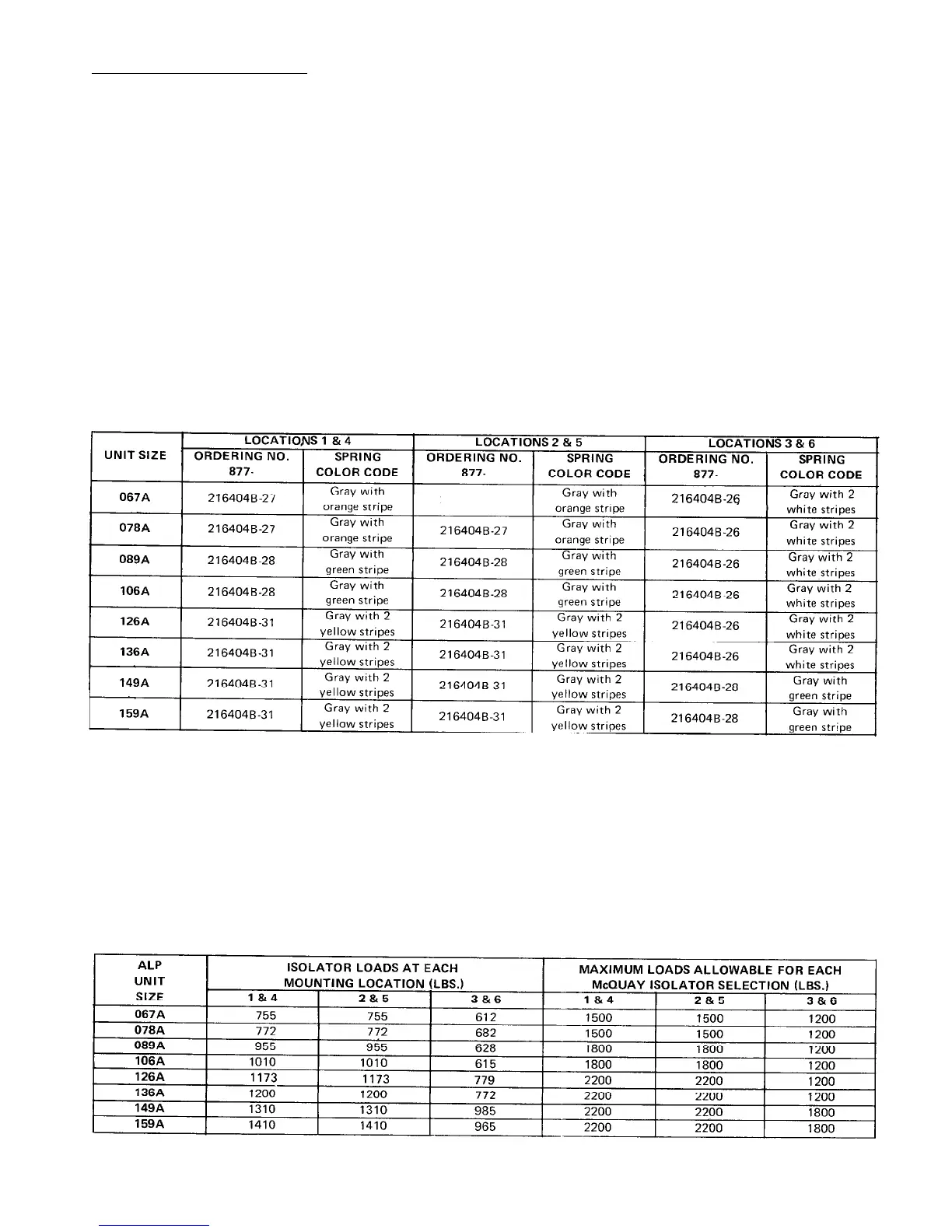

TABLE 2
VIBRATION
ISOLATORS
216404B-27 2164046-26
TABLE 3
IS0 LATOR LOADS
