8 IM708

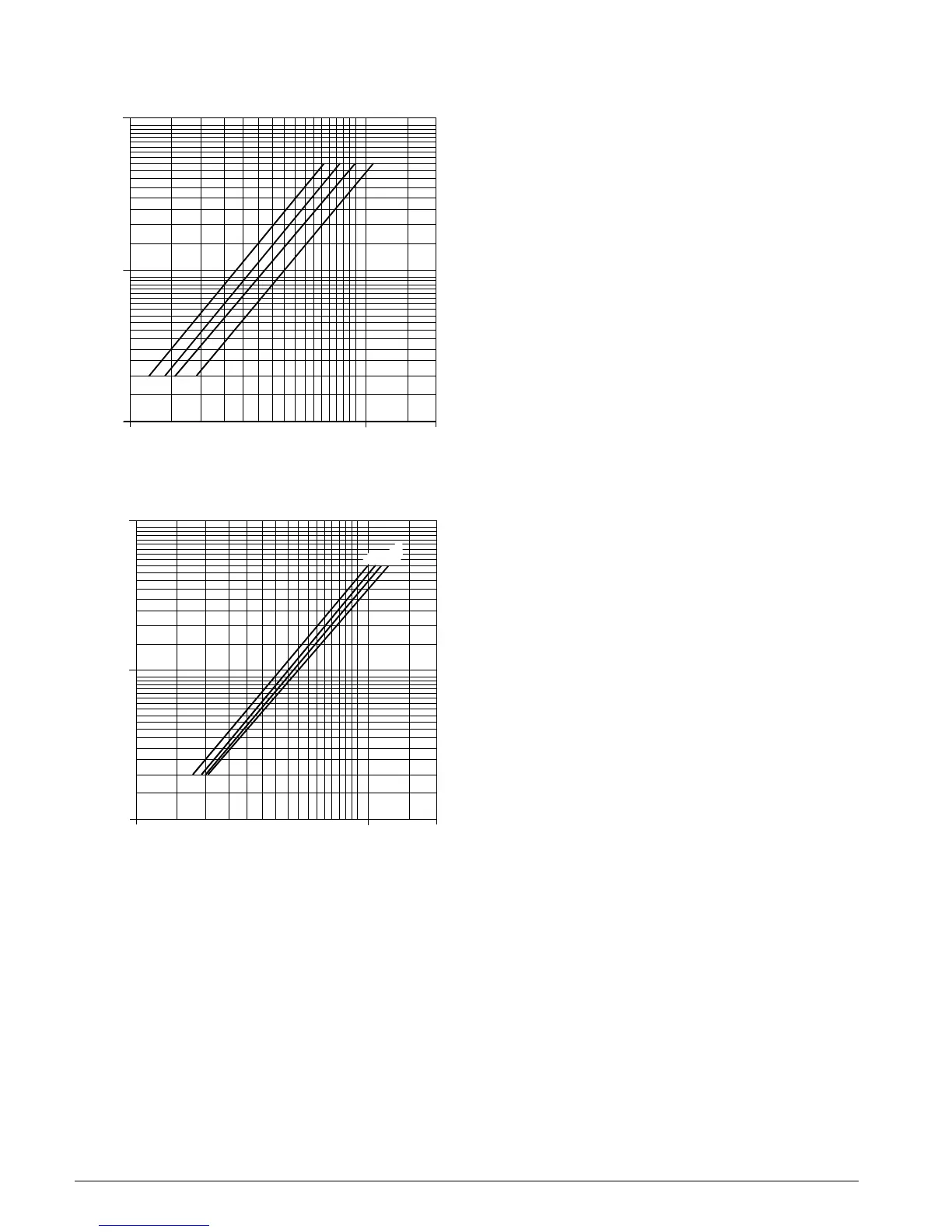

Figure7. Hot water coil pressure drop, SWP018 -
SWP040
Hot water coil pressure drop, SWP045 - SWP105
Water Flow Rate (gpm)
Pressure Drop (ft H
2
O)
100
10
100
200
10
1
018
023-028
035
040
Condensate Drain Connection
The condensate drain connection is 1 1/8" O.D.S. copper and
is located on the same end of the unit as the condenser water
connections. The drain is internally trapped at the factory
requiring no external trap. The condensate line should be
pitched away from the unit with a minimum slope of 1/8" per
foot.
Drain pans and the drain trap should be kept clean by peri-
odic cleaning. A cleanout is provided as standard in the trap
to aid in cleaning.
Water Flow Rate (gpm)
Pressure Drop (ft H
2
O)
100
10 100
200
10
1
045
105
065-095
055
