IM 1128-2 11

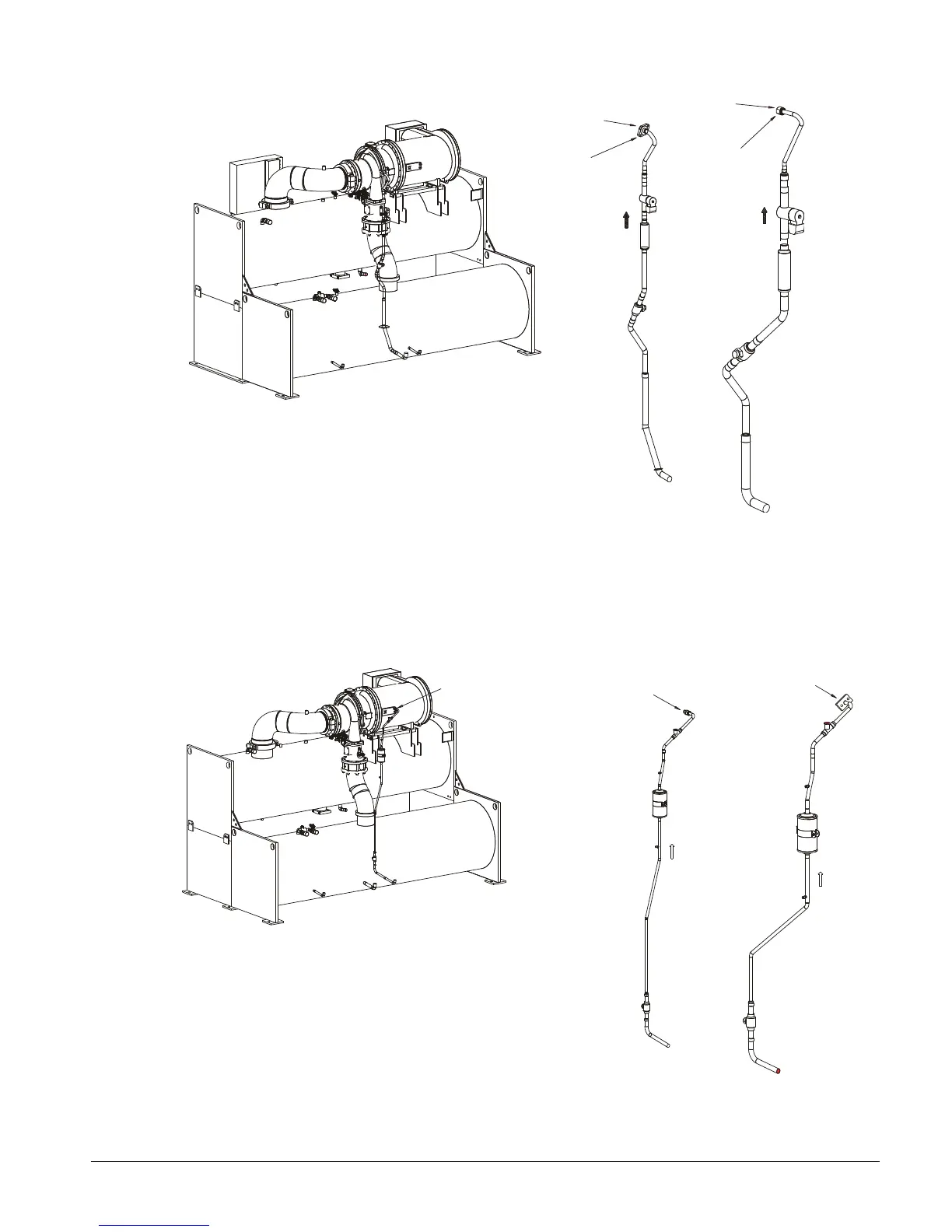

Figure 4, Liquid Injection Lines
NOTE:
The liquid injection line (above) and the motor cooling line (below) are attached to the condenser and have
shipping straps securing them to the evaporator and condenser. The lines and the compressor, each have block-
off plates, resulting in extra bolts.
Figure 5, Motor Cooling Lines
R331311303C0100
MECHANICAL
BREAK POINT
MECHANICAL
BREAK POINT
LIQUID INJECTION LINES
(NOT ALL VARIATIONS SHOWN)
TYPE I
BLOCKOFF
TYPE I
BLOCKOFF
TORQUE TO
58 FT/LBS
R331311304C0100
MECHANICAL
BREAK POINT
MECHANICAL
BREAK POINT
MOTOR COOLING LINES
(NOT ALL VARIATIONS SHOWN)
TYPE I
BLOCKOFF
TYPE I
BLOCKOFF
