MCZ HYDRO - Assembly of Sides on the MUSA Stove; PELLET STOVES Chapter

PELLET STOVES Chapter 3
INSTALLATION AND USE MANUAL page 30
Installation and assembly Technical service - Rights reserved MCZ GROUP S.p.A. - Reproduction prohibited
A
B
C
D
E
F
G
G
REAR VIEW

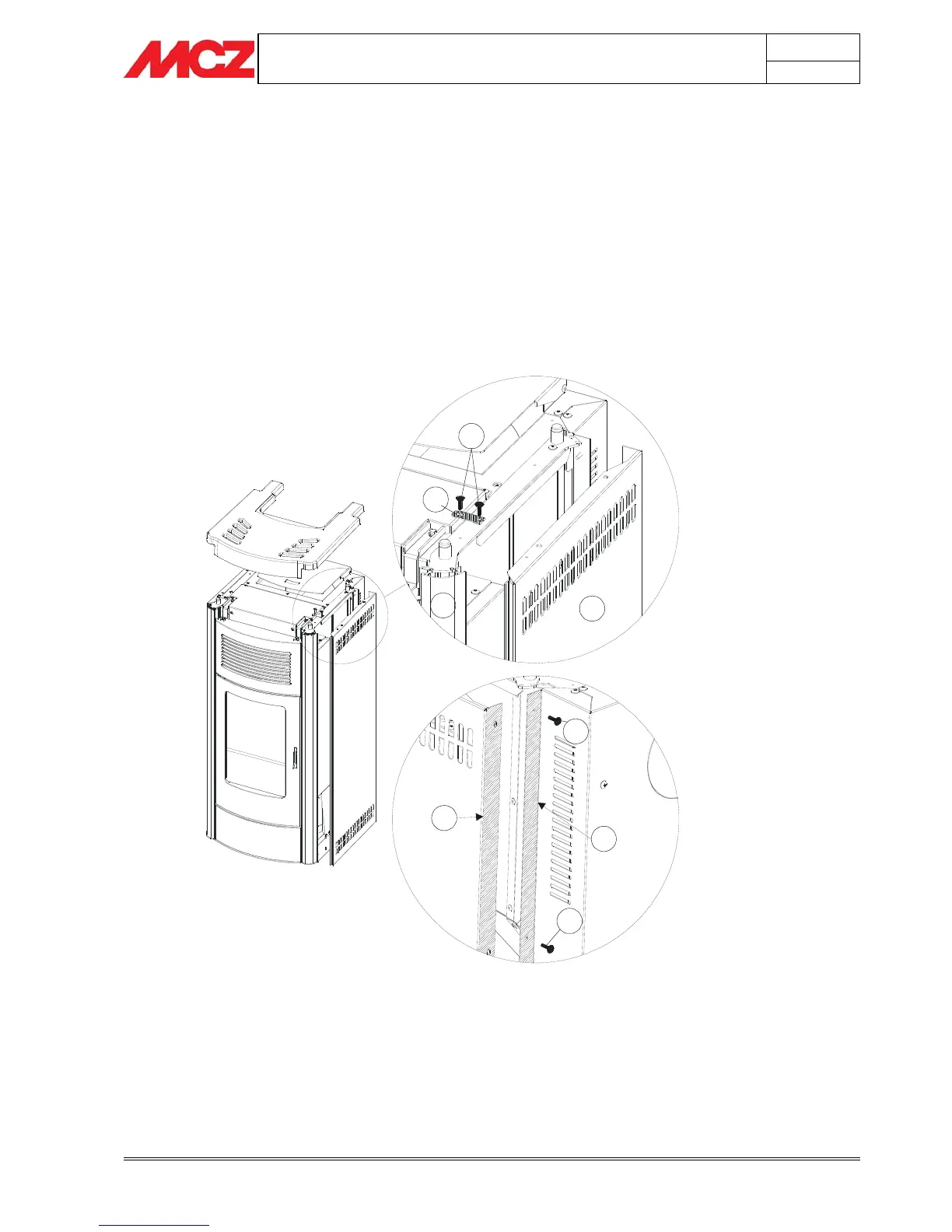

3.3.6. Assembly of sides on the MUSA stove
Remove the cast iron top, take the sides A (one for the right side and
one for the left) and insert them on the runners of the profile B paying
attention that the rear part of the side E (the one with a 90° bend)
overlaps with the sheet metal bend of the structure F and that the
lower part of the side enters in the plugs on the base.
Take the plate C provided and fix it with the two screws D, on the
upper part in correspondence to the structure and the side.
The rear side must be fixed to the stove's structure using the four
screws G provided.
When both steel sides A are assembled, replace the cast iron top.
