MDB Crib (8501) - Spring Frame and Side Panel Attachment

H5
H11
G
H7
page 5
H10. Allen wrench
DO NOT OVERTIGHTEN.

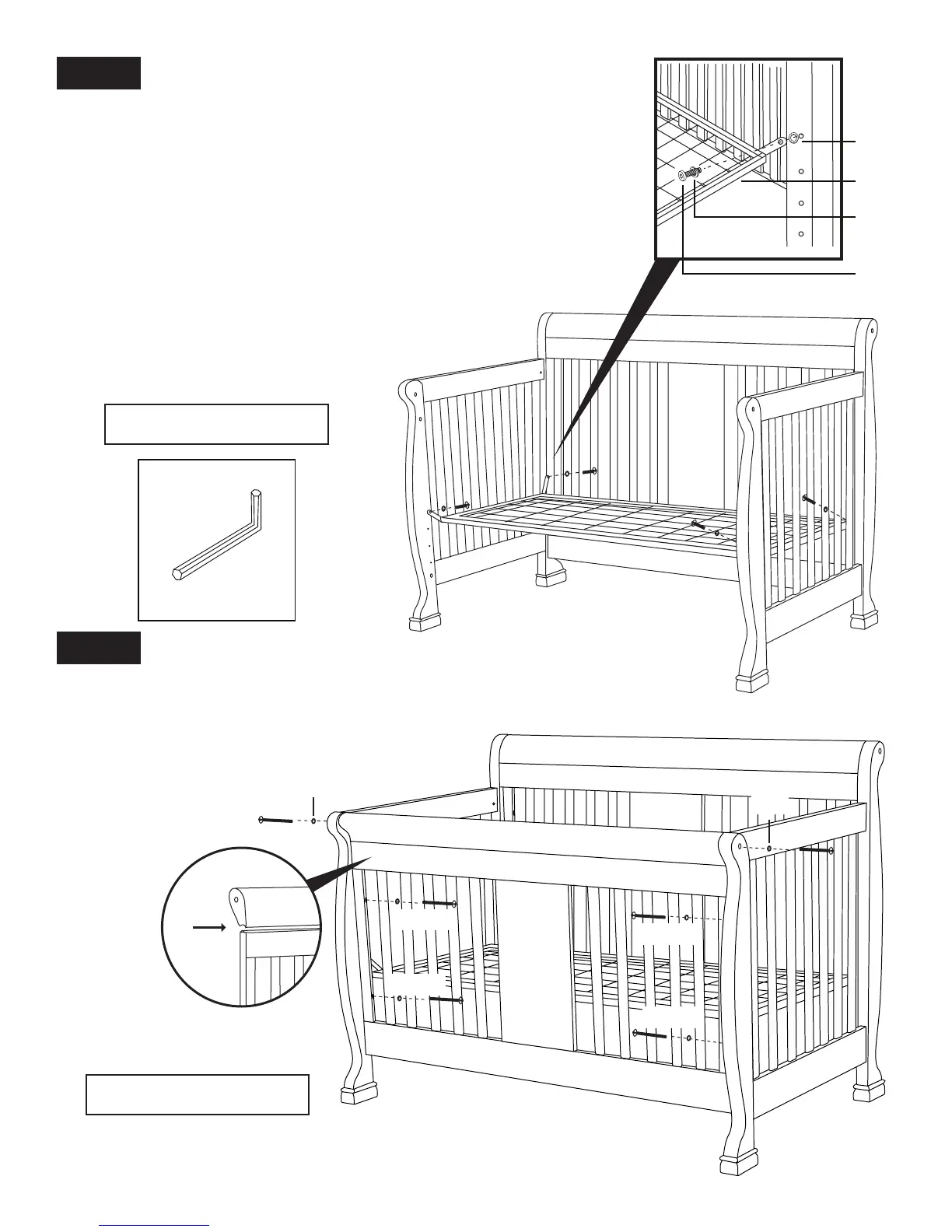

Attach the spring frame (G) to legs.
Swing out four hangers at corner of the spring frame (G) carefully.
Attach spring frame FLAT SIDE UP. Choose the height of the
spring frame. Start at the highest level and adjust accordingly.
Bolt the spring frame (G) to legs using Allen head bolts (H5),
washers (H7), lock washers (H11) and Allen wrench (H10).
As the child grows, it is important to lower the spring.
Make sure the spring frame is level.
DO NOT OVERTIGHTEN.
Step 6b.)
5a.) Slide the cross bar (P) into the
stationary side (B).
5b.) Attach the stationary side (B)
to side panels.
B
G
P
B
H3H3
P
Step 6a.)
STEP 4.
STEP 5.
H11
H11
H11H2
H11H2
H2H11
H2H11
