Platform Controls
5 6
784
ART_5011
1 2 3
9
ALWAYS be aware of the machine’s position and of your surroundings
before activating any control function.

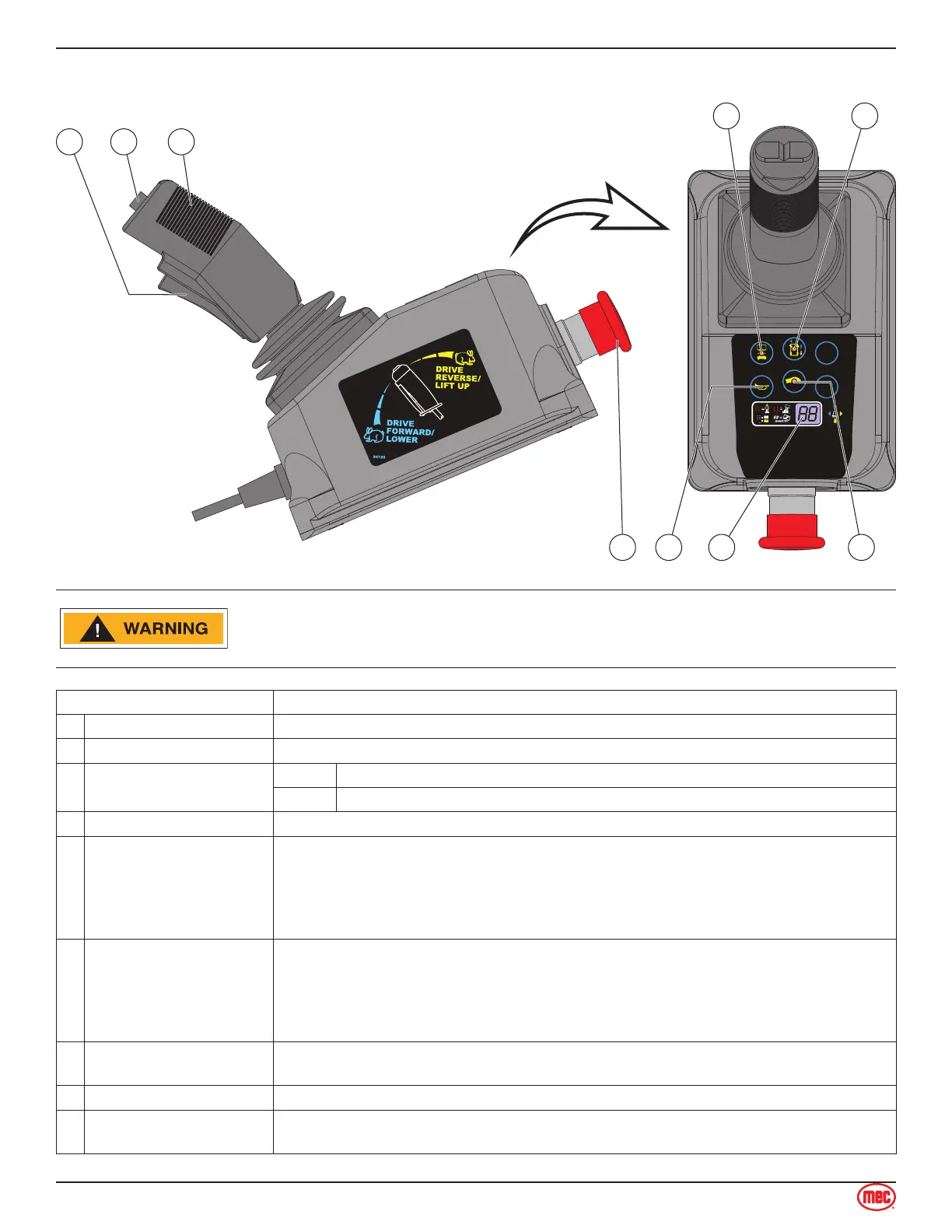

Control Description
1 Function Enable Switch Squeeze to enable DRIVE, STEER, and LIFT functions from the Control Handle.
2 Steer Switch Using your thumb, press and hold the rocker switch to steer Left or Right.
3 Control Handle
DRIVE Proportionally controls Forward and Reverse travel.
LIFT Proportionally controls Lift and Lower functions.
4 Horn Button Press to sound warning horn.
5 Lift Select
Press this button to enable the Lift function.
• Regardless of if the Function Enable Switch is pressed or released, if no
machine movement is made in 10 seconds then the current selection of Lift
will time-out.
• Release then press the Function Enable Switch to reactivate selected function.
6 Drive Select
Press this button to enable the Drive function.
• Regardless of if the Function Enable Switch is pressed or released, if no
machine movement is made in 10 seconds then the current selection of Drive
will time-out.
• Release then press the Function Enable Switch to reactivate selected function.
7 Drive Speed Select
Light ON indicates Low Speed Drive is selected.
Light OFF indicates High Speed Drive is selected.
8 LED Display Indicates the state of battery charge and displays diagnostic codes when necessary.
9 Emergency Stop Switch
Press the EMERGENCY STOP switch at any time to stop all machine functions.
Turn switch clockwise to reset.
