MEC AUTO-MATE ASSEMBLY MANUAL
7
STEP 3
DEPRESS HANDLE ASSEMBLY TO
THE BOTTOM OF LOADING STROKE.
TIGHTEN MIDDLE BOLT TO KEEP
TURRET ASSEMBLY IN THE DOWN
POSITION.
STEP 4
WITH A ½” END WRENCH, REMOVE
THE PIVOT BLOCK BOLT AND SET
ASIDE.
STEP 5
REMOVE CHARGE BAR AND
MEASURE ASSEMBLY AND SET
ASIDE.

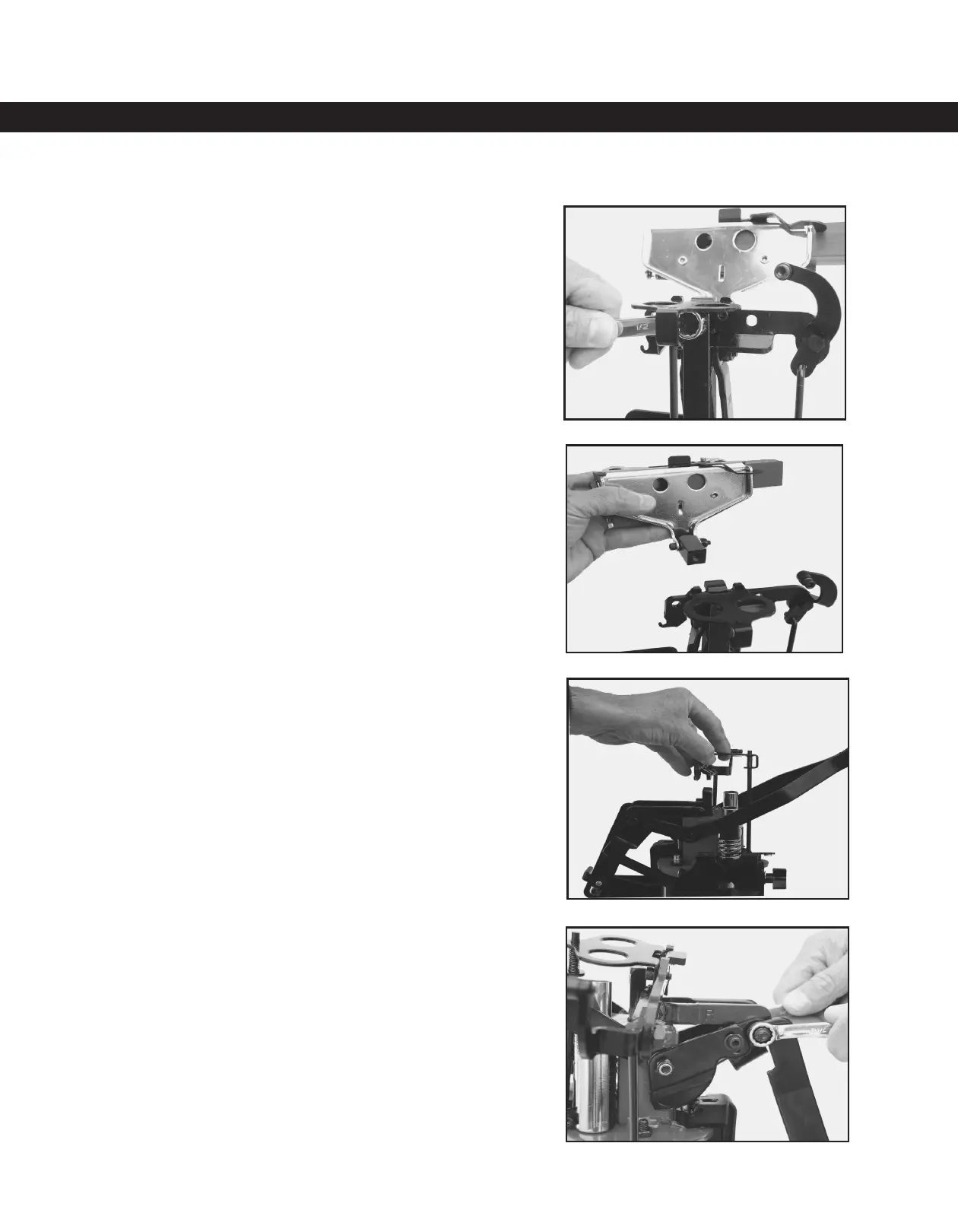

Step 4:
With a 1/2” end wrench, remove the pivot block
bolt and set aside.
Step 5:
Remove measure assembly as shown and set
aside.
Step 6:
Using (2) 7/16” wrenches loosen middle bolt
and return turret assembly to the full up
postion.
Pull drop tube holder assembly up and lay to
the side. It is not necessary to un-couple the
attached linkages.
Step 7:
Using (2) 7/16” wrenches remove the rear
linkage bolt assembly and keep for possible
future use.
7
STEP 3
DEPRESS HANDLE ASSEMBLY TO
THE BOTTOM OF LOADING STROKE.
TIGHTEN MIDDLE BOLT TO KEEP
TURRET ASSEMBLY IN THE DOWN
POSITION.
STEP 4
WITH A ½” END WRENCH, REMOVE
THE PIVOT BLOCK BOLT AND SET
ASIDE.
STEP 5
REMOVE CHARGE BAR AND
MEASURE ASSEMBLY AND SET
ASIDE.
8
STEP 6
LOOSEN MIDDLE BOLT AND RETURN
TURRET ASSEMBLY TO THE FULL UP
POSITION.
PULL DROP TUBE HOLDER
ASSEMBLY UP AND LAY TO THE
SIDE. IT IS NOT NECESSARY TO UN-
COUPLE THE ATTACHED LINKAGES.
STEP 7
WITH A 7/16” END WRENCH REMOVE
THE REAR LINKAGE BOLT ASSEMBLY
AND KEEP FOR POSSIBLE FUTURE
USE.
STEP 8
WITH A 7/16” END WRENCH REMOVE
THE LOCK NUT AND SET ASIDE.
NOTE APPROXIMATE ADJUSTMENT
POSITION OF THE CRIMP DIE CAM.
YOU WILL NEED TO READJUST THE
CAM FOLLOWING THE AUTO-MATE
“QUICK-LINK” PARTS INSTALLATION.
8
STEP 6
LOOSEN MIDDLE BOLT AND RETURN
TURRET ASSEMBLY TO THE FULL UP
POSITION.
PULL DROP TUBE HOLDER
ASSEMBLY UP AND LAY TO THE
SIDE. IT IS NOT NECESSARY TO UN-
COUPLE THE ATTACHED LINKAGES.
STEP 7
WITH A 7/16” END WRENCH REMOVE
THE REAR LINKAGE BOLT ASSEMBLY
AND KEEP FOR POSSIBLE FUTURE
USE.
STEP 8
WITH A 7/16” END WRENCH REMOVE
THE LOCK NUT AND SET ASIDE.
NOTE APPROXIMATE ADJUSTMENT
POSITION OF THE CRIMP DIE CAM.
YOU WILL NEED TO READJUST THE
CAM FOLLOWING THE AUTO-MATE
“QUICK-LINK” PARTS INSTALLATION.
