Mec AUTO-MATE User Manual

800-797-4632 . mecoutdoors.com
4

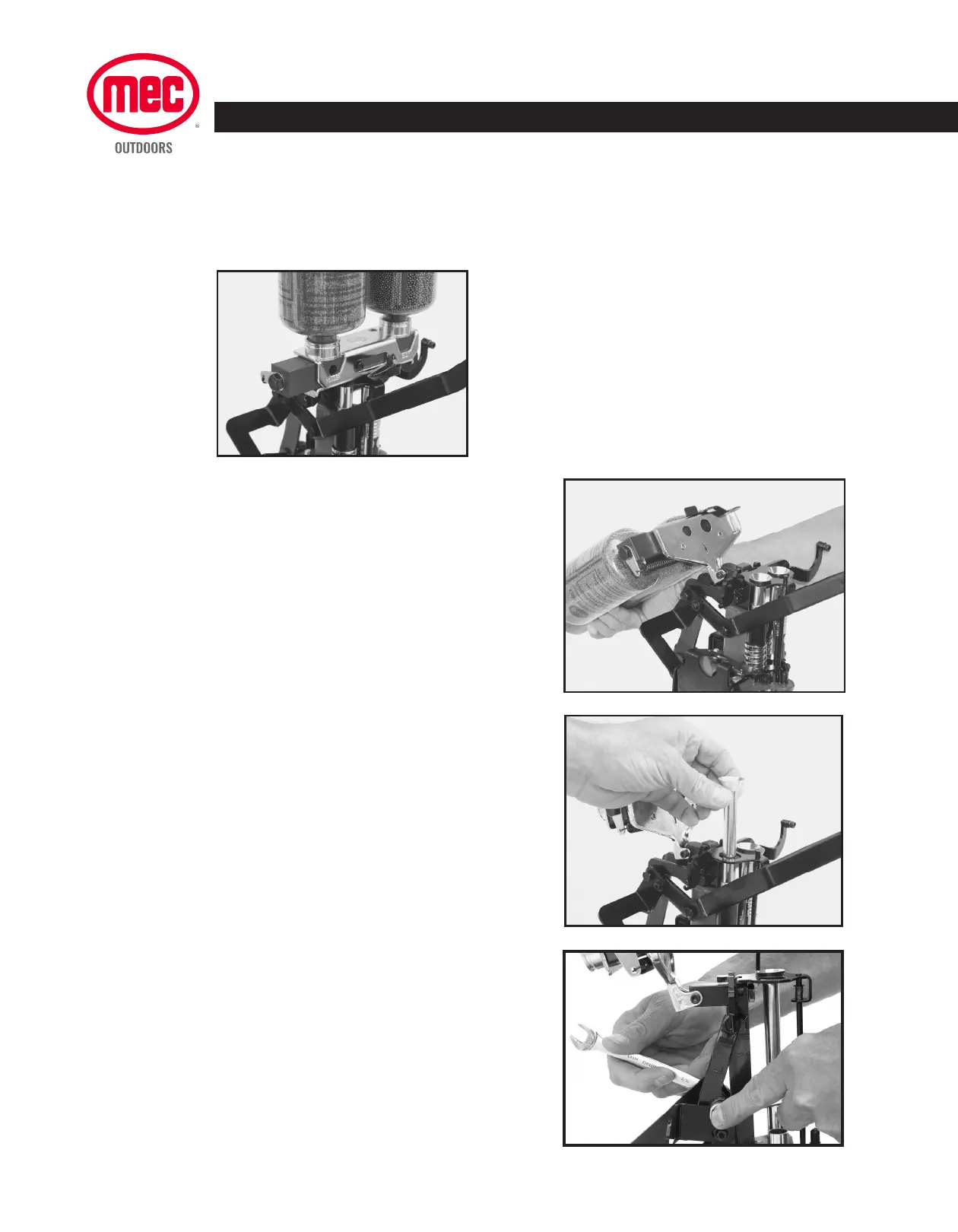

REMOVAL OF FACTORY MANUAL OPERATIONAL PARTS
TOOLS REQUIRED:
(2) 7/16” Open End Wrenches
(1) 1/2” Open End Wrench
(1) 5/32” Hex Wrench
MEC AUTO-MATE ASSEMBLY MANUAL
FOR 9000G, 9000GN AND 8567 GRABBER SERIES
6
Section 2.
Quick-Link Parts Installation
REMOVAL OF FACTORY MANUAL OPERATION PARTS
STEP 1
RAISE CHARGE BAR AND MEASURE
ASSEMBLY. REMOVE POWDER AND
SHOT BOTTLES.
STEP 2
REMOVE BOTH SHOT AND POWDER
DROP TUBES AND SET ASIDE.
6
Section 2.
Quick-Link Parts Installation
REMOVAL OF FACTORY MANUAL OPERATION PARTS
STEP 1
RAISE CHARGE BAR AND MEASURE
ASSEMBLY. REMOVE POWDER AND
SHOT BOTTLES.
STEP 2
REMOVE BOTH SHOT AND POWDER
DROP TUBES AND SET ASIDE.
6
Section 2.
Quick-Link Parts Installation
REMOVAL OF FACTORY MANUAL OPERATION PARTS
STEP 1
RAISE CHARGE BAR AND MEASURE
ASSEMBLY. REMOVE POWDER AND
SHOT BOTTLES.
STEP 2
REMOVE BOTH SHOT AND POWDER
DROP TUBES AND SET ASIDE.
Step 1:
Raise the charge bar and measure assembly.
Remove powder and shot bottles.
Step 2:
Remove both shot and powder drop tubes and
set aside.
Step 3:
Depress handle assembly to the bottom of
loading stroke. Using (2) 7/16” wrenches
tighten middle bolt to keep turret assembly in
the down position.
