Mec AUTO-MATE User Manual

800-797-4632 . mecoutdoors.com
7
INSTALLATION OF MEC AUTO-MATE “QUICK-LINK” KIT
MEC AUTO-MATE ASSEMBLY MANUAL

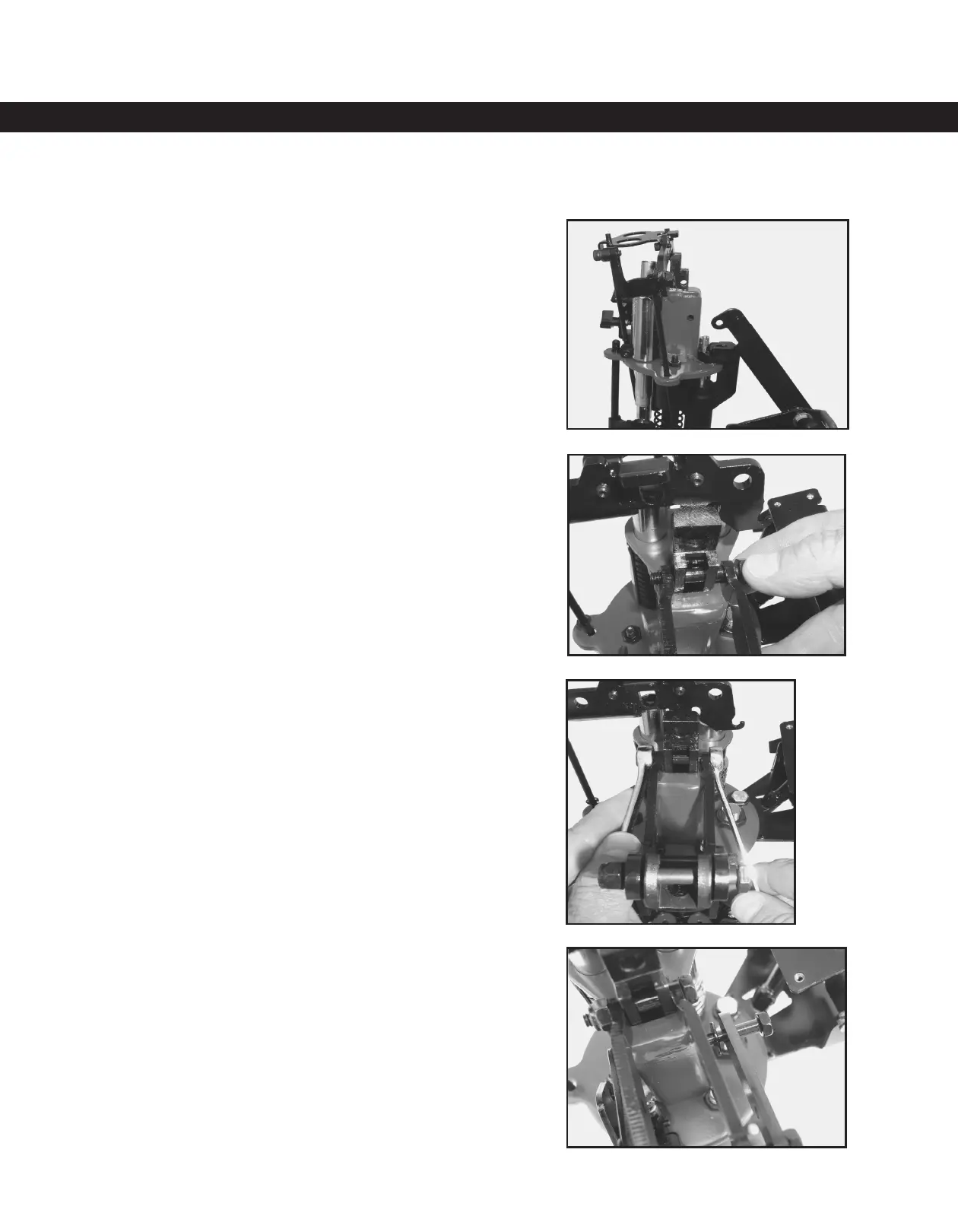

Step 1:
Prepare for the installation by laying out the
“Quick-Link” Parts.
Step 2:
Looking from the back of the reloader, place
the top linkage bolt through the left hand
link and slide bolt thru hole provided in top of
column and then thru right hand link.
Step 3:
Using (2) 7/16” wrenches tighten the top
linkage bolt assembly.
IMPORTANT! Only tighten the top linkage bolt
nut enough to bring all of the parts together.
The actuation arms must move freely.
Step 4:
On the right side of the reloader assemble
the forward link bolt, link strap, and spacing
washer as shown.
10
Quick-Link Kit Installation
INSTALLATION OF MEC AUTO-MATE “QUICK-LINK” KIT
STEP 1
PREPARE FOR INSTALLATION BY
LAYING OUT THE “QUICK-LINK”
PARTS.
STEP 2
LOOKING FROM THE BACK OF THE
LOADER, PLACE THE TOP LINKAGE
BOLT THROUGH THE LEFT HAND
LINK AND SLIDE BOLT THRU HOLE
PROVIDED IN TOP OF COLUMN AND
THEN THRU RIGHT HAND LINK.
STEP 3
USING A SET OF 7/16” END
WRENCHES TIGHTEN THE TOP
LINKAGE BOLT ASSEMBLY
IMPORTANT! ONLY TIGHTEN THE
TOP LINKAGE BOLT NUT ENOUGH TO
BRING ALL OF THE PARTS
TOGETHER. THE ACTUATION ARMS
MUST MOVE FREELY UP AND DOWN.
10
Quick-Link Kit Installation
INSTALLATION OF MEC AUTO-MATE “QUICK-LINK” KIT
STEP 1
PREPARE FOR INSTALLATION BY
LAYING OUT THE “QUICK-LINK”
PARTS.
STEP 2
LOOKING FROM THE BACK OF THE
LOADER, PLACE THE TOP LINKAGE
BOLT THROUGH THE LEFT HAND
LINK AND SLIDE BOLT THRU HOLE
PROVIDED IN TOP OF COLUMN AND
THEN THRU RIGHT HAND LINK.
STEP 3
USING A SET OF 7/16” END
WRENCHES TIGHTEN THE TOP
LINKAGE BOLT ASSEMBLY
IMPORTANT! ONLY TIGHTEN THE
TOP LINKAGE BOLT NUT ENOUGH TO
BRING ALL OF THE PARTS
TOGETHER. THE ACTUATION ARMS
MUST MOVE FREELY UP AND DOWN.
10
Quick-Link Kit Installation
INSTALLATION OF MEC AUTO-MATE “QUICK-LINK” KIT
STEP 1
PREPARE FOR INSTALLATION BY
LAYING OUT THE “QUICK-LINK”
PARTS.
STEP 2
LOOKING FROM THE BACK OF THE
LOADER, PLACE THE TOP LINKAGE
BOLT THROUGH THE LEFT HAND
LINK AND SLIDE BOLT THRU HOLE
PROVIDED IN TOP OF COLUMN AND
THEN THRU RIGHT HAND LINK.
STEP 3
USING A SET OF 7/16” END
WRENCHES TIGHTEN THE TOP
LINKAGE BOLT ASSEMBLY
IMPORTANT! ONLY TIGHTEN THE
TOP LINKAGE BOLT NUT ENOUGH TO
BRING ALL OF THE PARTS
TOGETHER. THE ACTUATION ARMS
MUST MOVE FREELY UP AND DOWN.
11
Section 3
.
STEP 4
ON RIGHT SIDE OF LOADER
ASSEMBLE THE FORWARD LINK
BOLT, LINK STRAP, AND SPACING
WASHER AS SHOWN.
STEP 5
ON LEFT SIDE OF LOADER ADD ¼”
SPACING WASHER, LINK STRAP,
CAM PLATE AND FORWARD LINKAGE
BOLT NUT.
IMPORTANT! MAKE SURE THE
THREADED HOLE IN THE LINK STRAP
IS AWAY FROM THE LOADER.
STEP 6
WITH (2) 7/16” END WRENCHES
TIGHTEN THE FORWARD LINKAGE
BOLT ASSEMBLY.
IMPORTANT! ONLY TIGHTEN THE
FORWARD LINKAGE BOLT NUT
ENOUGH TO BRING ALL OF THE
PARTS TOGETHER. THE LINK
STRAPS MUST MOVE FREELY UP
AND DOWN.
