Figure 7).

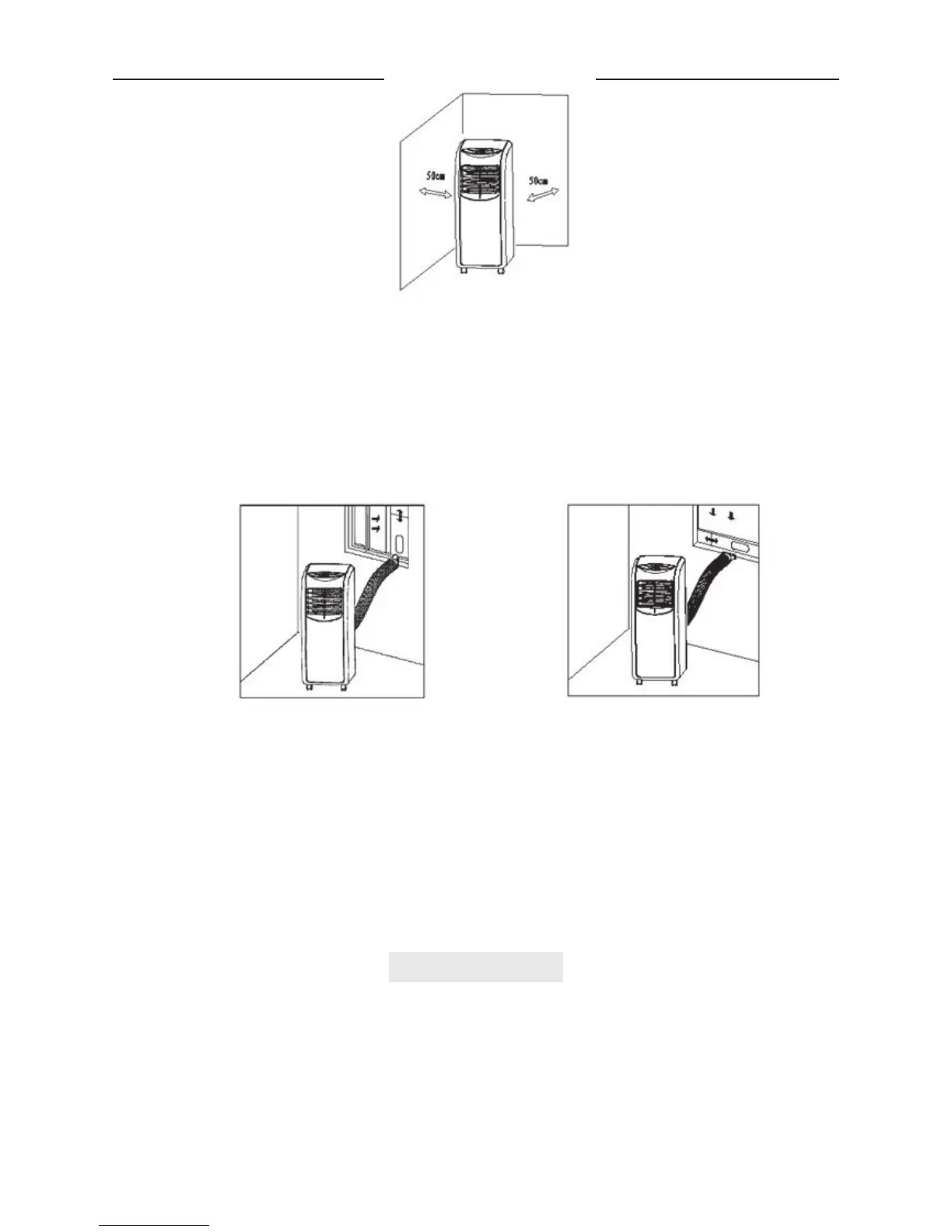

2). Snap the flat end of the heat exhaust hose short connector into the elliptical hole of
the window sealing board assembly (as shown in Figure 8 and 9).
Note: 1. The flat end of the heat exhaust hose short connector must be snapped into
place.
2. The heat exhaust hose may not be bent and shall be free from significant
(greater than 45°) flexure, and the heat exhaust hose shall be ventilated properly.
Figure 8 Figure 9
Important notes:
The exhaust hose is 280mm-1500mm long and this length is determined based on the
specification of the air-conditioner (s). Do not use prolonged hose or replace with other
different hoses as this may affect the functions of the air-conditioner. The exhaust must be
smooth and the air-conditioner may overheat if the exhaust is obstructed.
Control Setting
