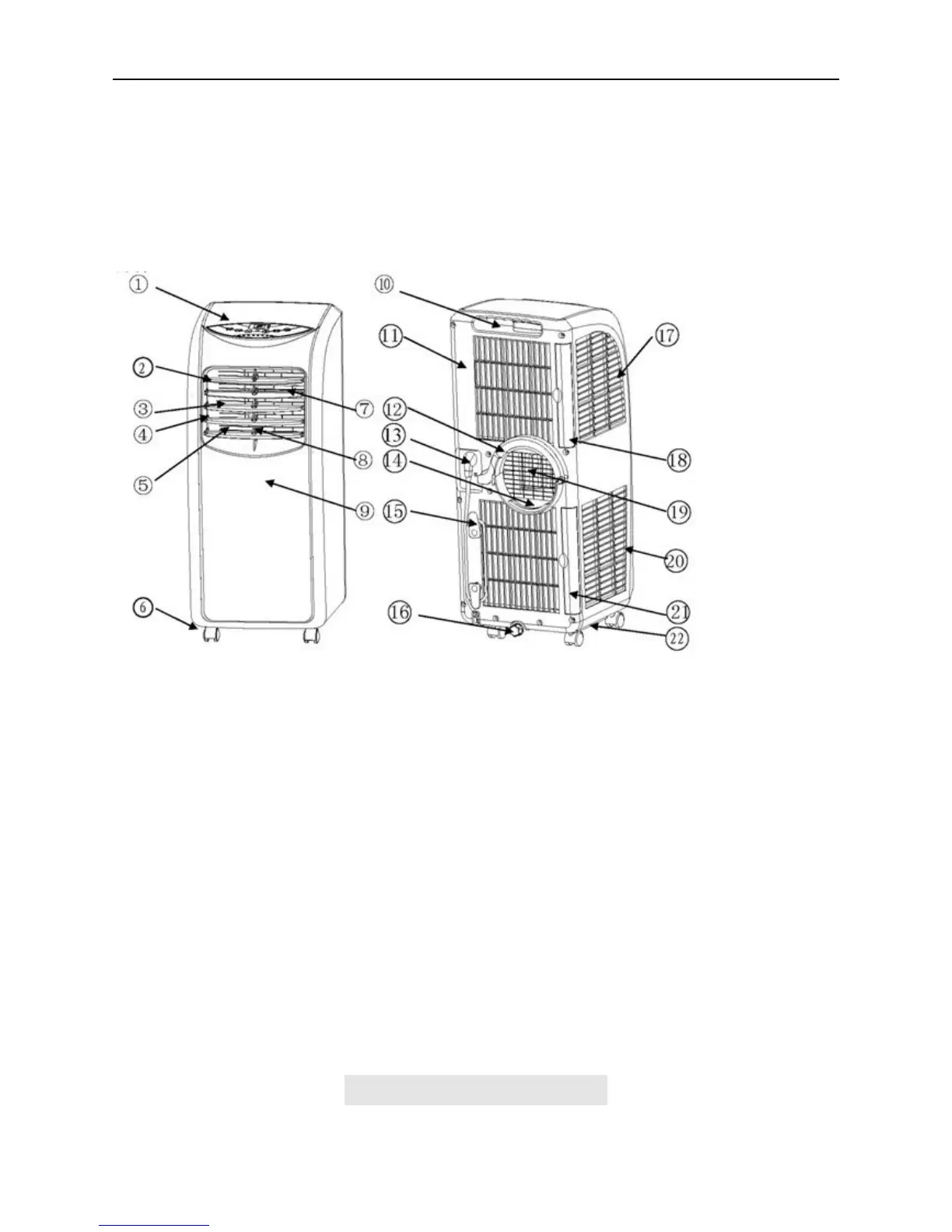

2. Parts:
1. Control panel 14. Lower air duct bottom
2. Horizontal louvre 15. Wire-winding post
3. Vertical louvre 16. Drain cap
4. Air outlet frame 17. Evaporator filter mesh
5. Vertical Louvre connecting lever 18. Evaporator filter frame
6. Caster 19. Radiating fine mesh
7. Horizontal louvre connecting lever 20. Condenser filter mesh
8. Main vertical louver 21. Condenser filter frame
9. Front shell 22. Base plate
10. Handle position (right side: remote
control storage area)
11. Back shell
12. C shape bucke of the heat
exhaust hose snap
13. Power cord
Installation Adjustment
1. Installation
