MECA EVO 1 Setup Guide | Mechanical Adjustments
For brake pedal adjustments, you will need 4mm allen key and 13mm key

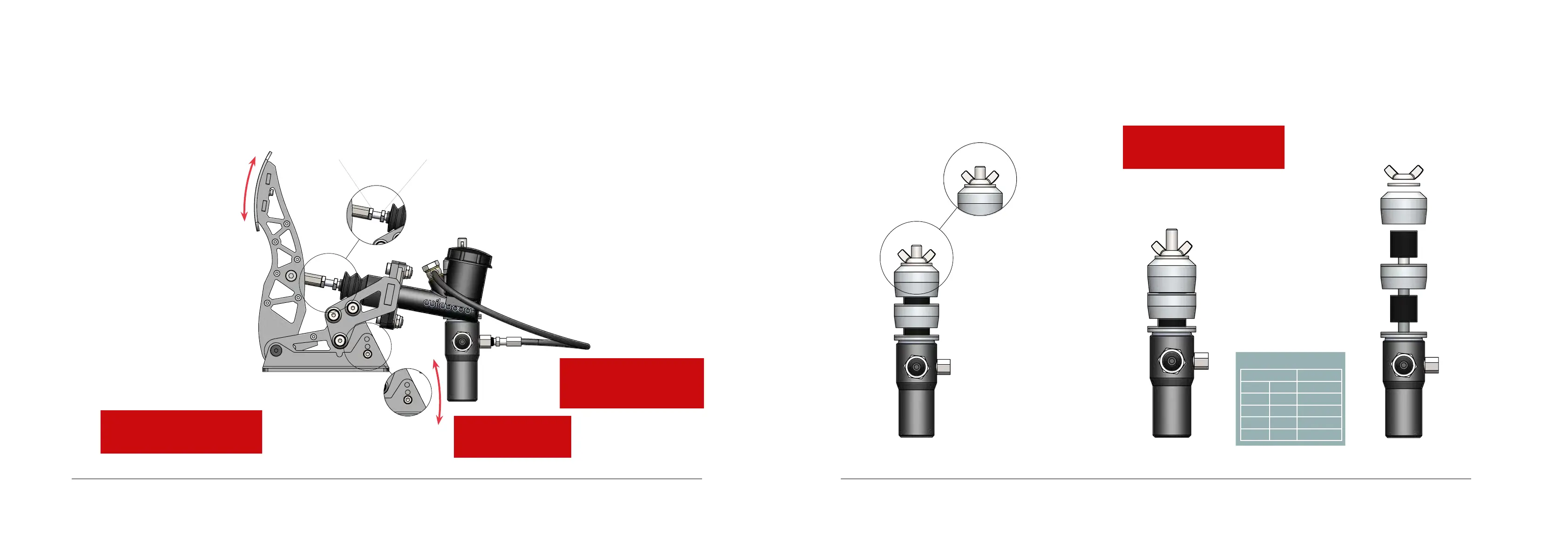

Brake pedal (hydraulic) adjustments
Master cylinder gap settings
Before adjusting, you
MUST remove pedal from
baseplate!
1) Loosen nut with 13 mm key 2) Gap setting nut (to the let -> smaller gap)
You can adjust the hydraulic brake travel using the butterfly nut
Slave cylinder adjustments
Tighten to shorten the movement
MECA EVO 1 Setup Guide | Mechanical Adjustments
Slave cylinder with only one
polyurethane for shorther travel
Combination
Firmness level
Black Black 1
Black Blue 2
Blue Blue 3
Black Orange 4
Blue Orange 5
Polyurethane bushings
Ater every mechanical adjustment, we
recommend to perform recalibration
of the pedals.
Ater every mechanical adjustment, we
recommend to perform recalibration
of the pedals.
4mm allen key
Before adjusting angle of
the pedal, unscrew only
ONE side at the time!
