MECA EVO 1 Setup Guide | Mechanical Adjustments
For brake pedal adjustments, you will need 4mm allen key and 13mm key

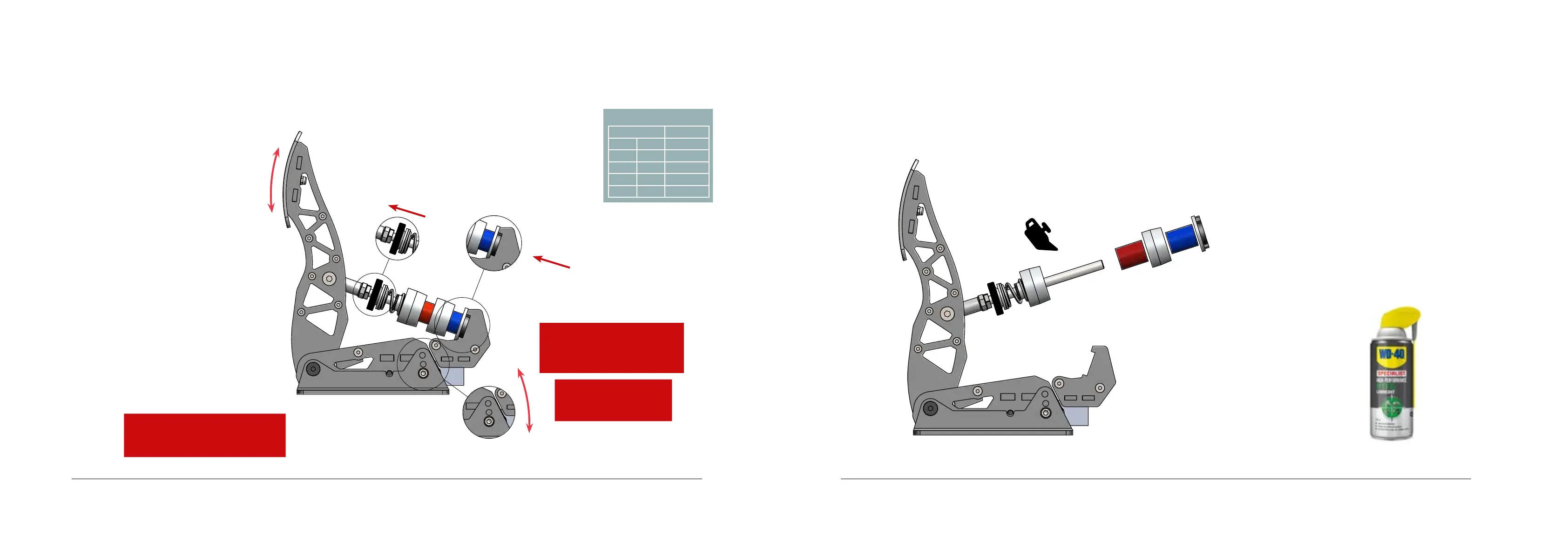

Brake pedal (LC) adjustments
Before adjusting, you
MUST remove pedal from
baseplate!
1) Loosen the preload spring
2) Push cup assembly from the housing
Combination
Firmness level
Black Black 1
Black Blue 2
Blue Blue 3
Black Orange 4
Blue Orange 5
Polyurethane bushings
Ater every mechanical adjustment, we
recommend to perform recalibration
of the pedals.
MECA EVO 1 Setup Guide | Mechanical Adjustments
Recommended lubricant
To ensure proper operation of load-cell brake pedal, it's recommended to lubricate leading rod every 100 hours
Brake pedal (LC) maintenance
WD-40 PTFE Dry spray
Before adjusting angle of
the pedal, unscrew only
ONE side at the time!
4mm allen key
To Next Page
