mecalac 714 PC - Connecting the Tester

714 PC & 714 PW
3
Connecting the tester
1-Connect the tester power supply clamps to the vehicle’s
battery terminals.(24V)
2-Connect the interface cable to the diagnostic soc-
ket on the vehicle (1 fig 1)
Kit K6956000

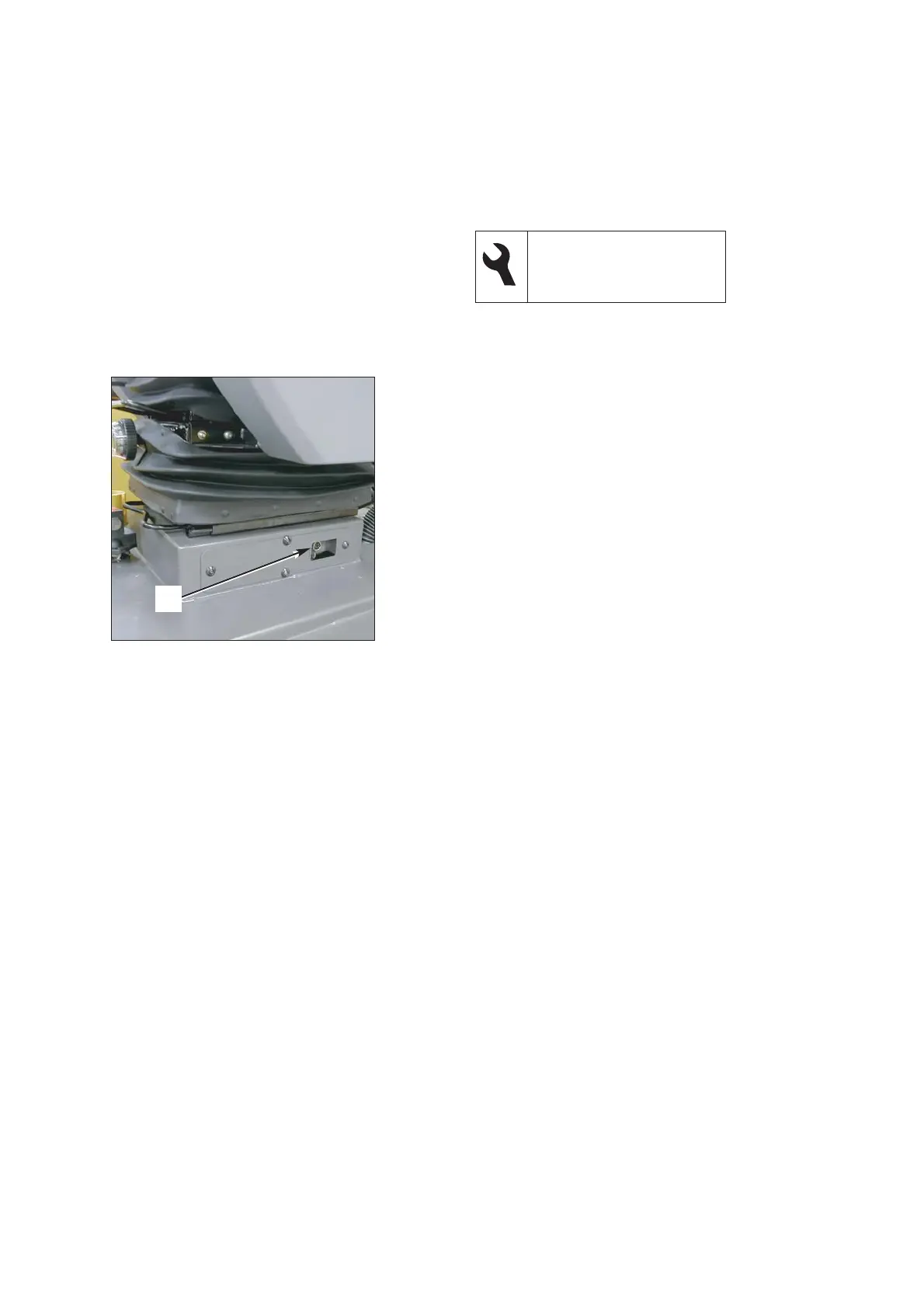

Fig. 1 Diagnostic socket (under the
seat)
1
