15 - ADJUSTMENTS
IMPORTANT!

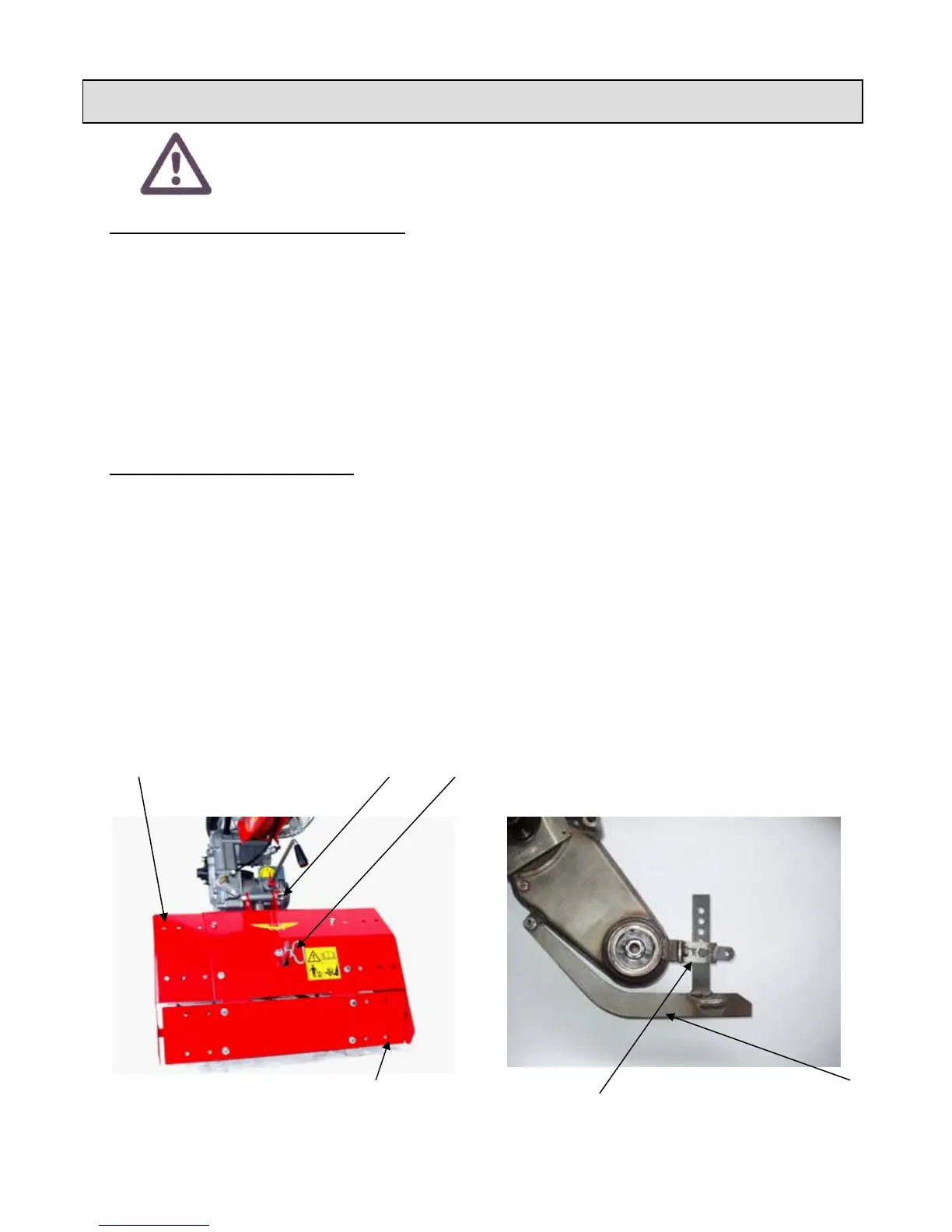

TILLER SAFETY GUARD pos.“C” pic. 1
The tiller has got guards that must be always fitted during the work and are foreseen by safety rules,too.
Follow with close attention these rules before working with this machine.
Check that screws are properly tightened before its using.
The hoeing depth may be regulated as follows:
-Working on surface, it is better to keep the safety hood DOWN.
-Working in depth, it is better to lift the hood so that tiller may go more down into the ground.
To do what describe above, it is enough to work on the fixing pivot “A” pic.1 and on the adjusting pivot
“B” pic.1
DIRECTION SPUR pos.“S” pic. 2
In order to get a regular advancement of the machine, it is necessary to use the direction-spur “S”pic.2
adjustable in some positions.
Working on a soft ground, it is better to keep the spur UP; in this way the machine forwards easier.
On a hard ground , it is better to keep the spur DOWN so that the sinking into the ground prevents a quick
advancement of the machine.
For doing this spur adjustment,“S” pic.2, take the T screw away, move the spur itself as far as the requested
position has been reached , then put the screw T again and fix definitely with its nut.
Pic. 1
A
C
C B
Pic. 2
s
T
