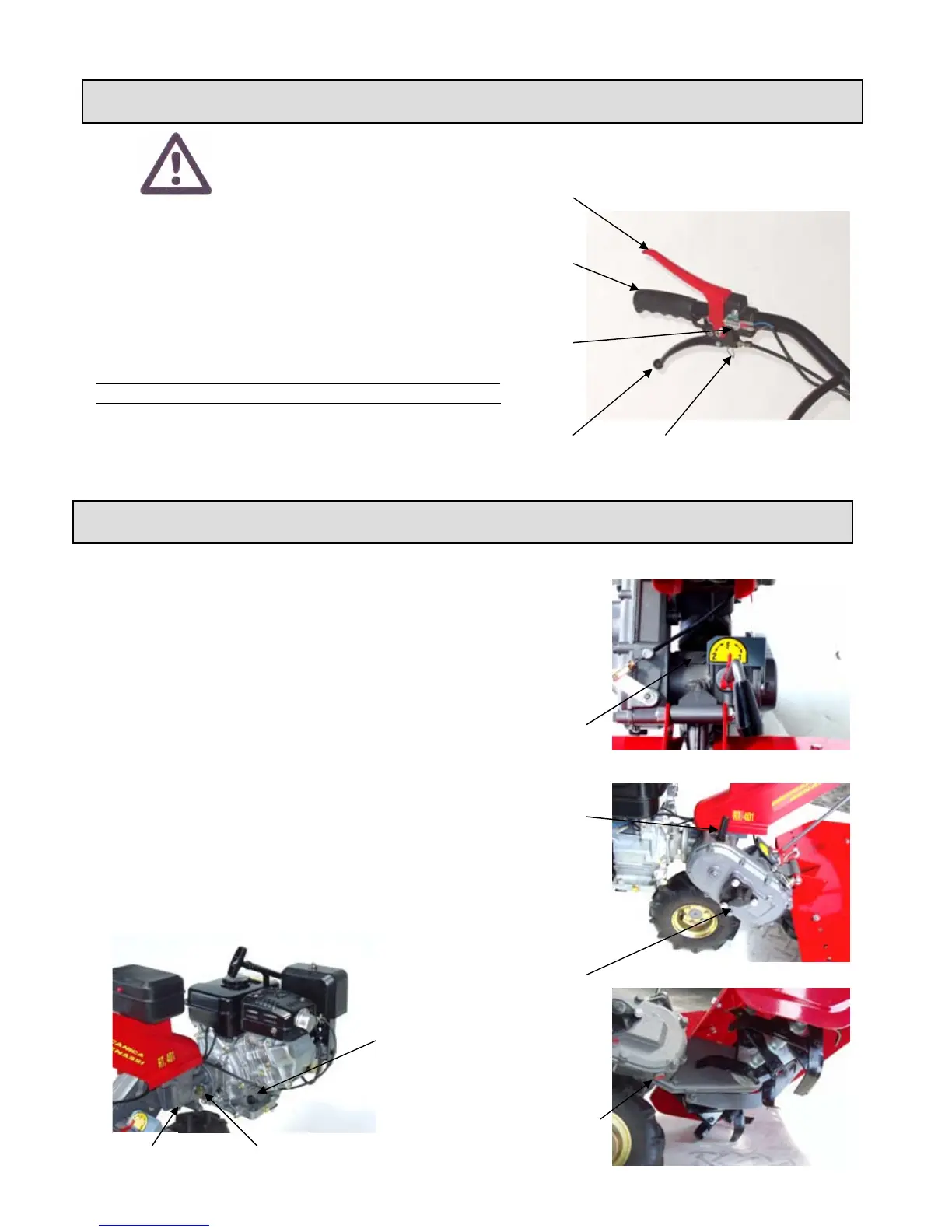

16 – ENGINE STOP SAFETY DEVICE
Pic. 1
B
E
A C
D
IMPORTANT!
Main function of lever “B”, pic.1, consists in the engine stopping
when handgriff “E” is left for any reason,pic.1.
Leaving lever “B”,pic.1, , switch “D” is to be pressed, closing in
this way the electrical circuit and stopping the engine.
During starting up, check the safety device “A”, pic.1, is engaged
so that lever “C”, pic.1, remains close (in pic.1 it is open and in
this position the engine doesn’t start up).
ABSOLUTELY DON’T FASTEN THE LEVER “B”
- ENGINE STOP- TO THE HANDGRIFF “E”
17 – LUBRICANTS
Pic. 2
Pic. 4
N
L
Pic. 3
S
L S
M
ENGINE : read always the producer’s instruction book
Level : plug “M” pic. 5 .
For gear TRASMISSION and CLUTCH in oil bath use oil:
AGIP DIESEL SIGMA SAE 30 .
For CHAIN TRASMISSION ( wheel and tiller) use grease:
AGIP GREASE MU EP / 0 .
Transmission oil level checking: by plugs “L” pic. 3-5 .
Oil filling by plug “N” pic. 3
Exhaust plugs “S” pic. 4-5.
Grease filling through hole “G”, pic. 2 .
For a good work of the clutch fill as far as the level “L”, pic. 3.
Check all the levels each time you use the machine and change
them every 300 working hours.
G
- 10 -
Pic. 5
