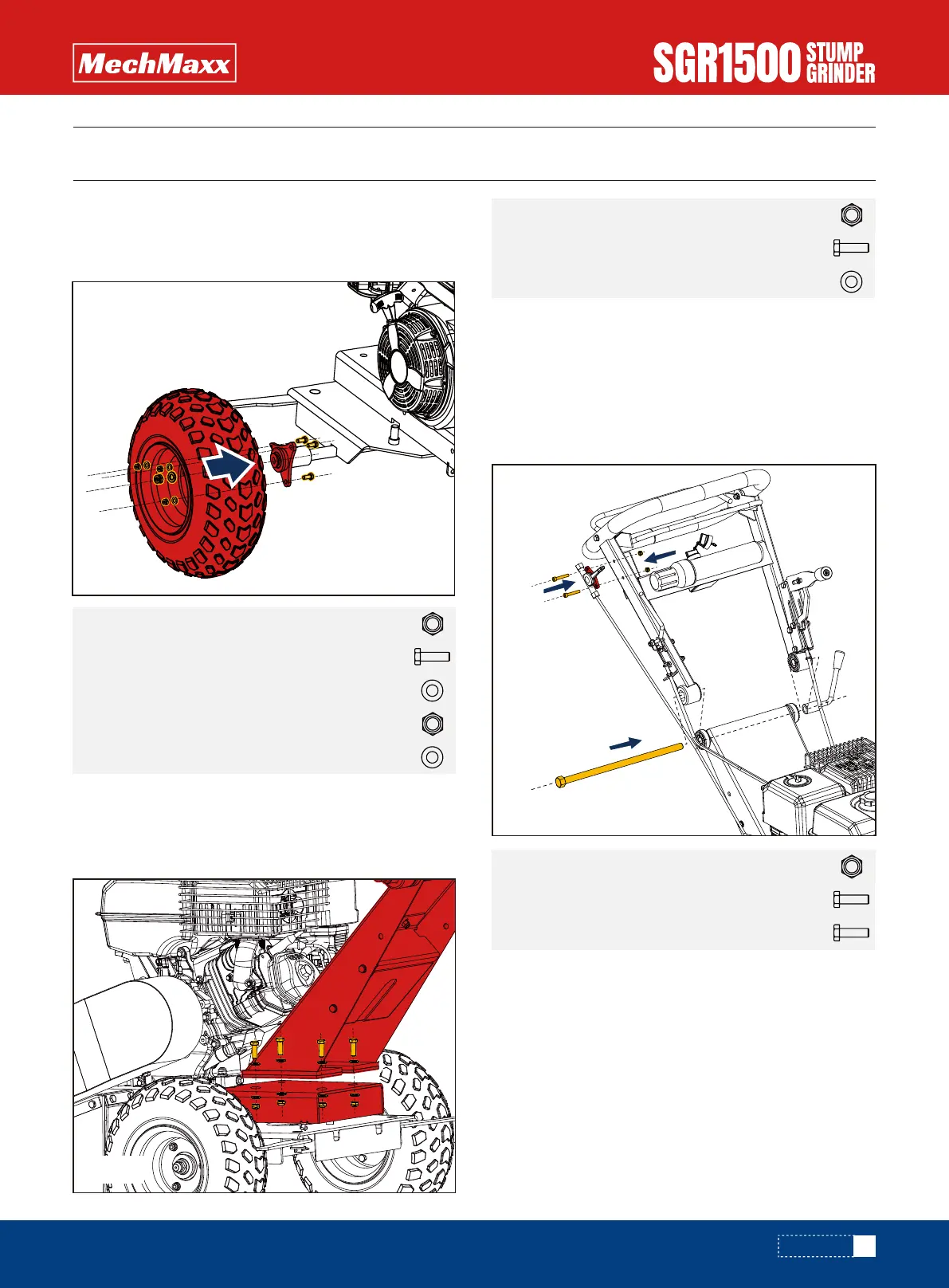

Fix the wheel on the axle with M14, M8X20 hexagonal
bolts, M8 lock nuts and flat washers 8.(See Figure 1)
Use M16X360 hex bolts and M16 lock nuts to pass
through the upper push rod and connect to the lower push
rod.
Connect the throttle control to the upper push rod with
M6X40 hex bolt and M6 lock nut. (See Figure 3)
Hex bolt M6 X 40mm2X
Hex bolt M16 X 360mm
1X
Hex lock nut M62X
Hex bolt M12 X 55mm
Flat washer 12
4X
8X
Hex lock nut M124X
Hex bolt M8 X 20mm
Flat washer 8
6X
6X
Hex lock nut M86X
Flat washer 14
2X
Hex lock nut M142X
Figure 1
Figure 3
Wheels
Attach the lower push rod to the body base with M12x55
hex bolt,flat washer 12 and M12 lock nut. (See Figure 2)
Lower welding push rod
Upper welding push rod
Figure 2
Install the rubber baffle to the main body of the machine
with M8X25 hex bolts and M8 lock nuts.(See Figure 4)
Rubber Baffle
