Medalist Spectrum E-Tec - Back Panel of PC Unit; Main Board Connections

22

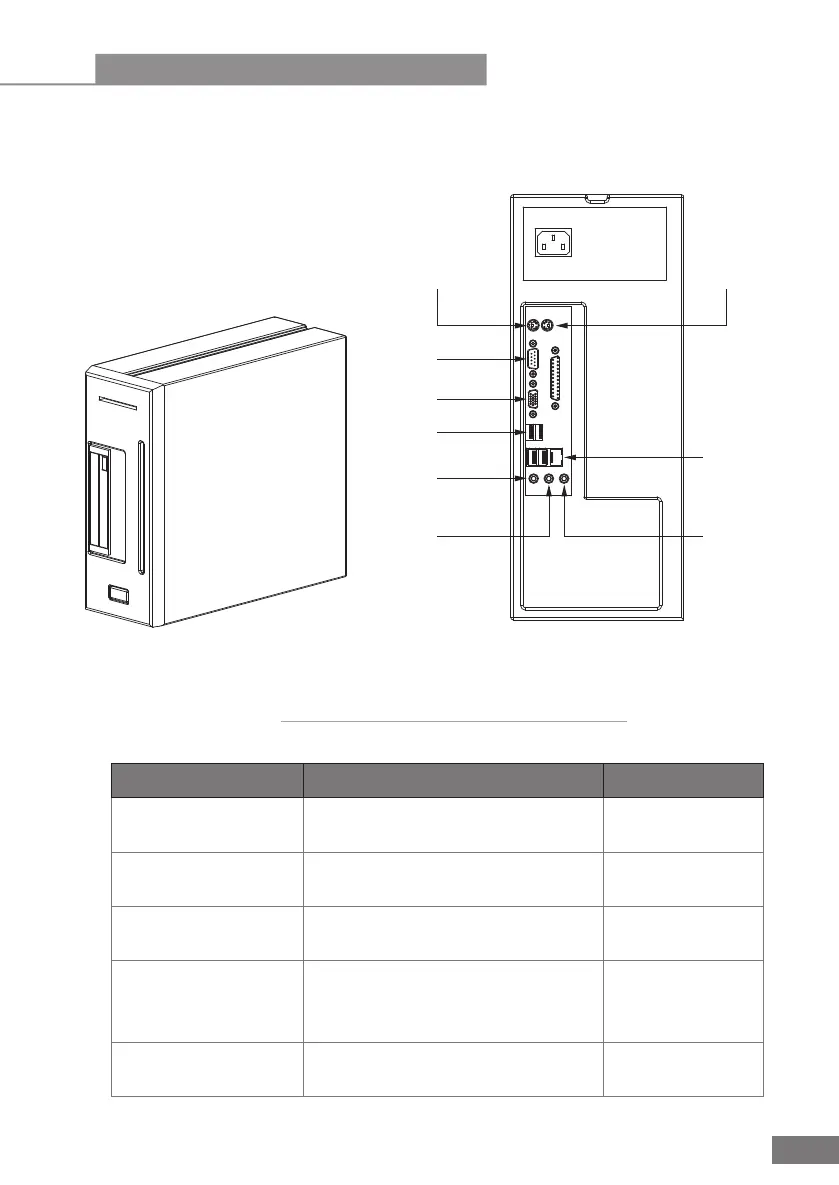

Figure 12: Back Panel Of PC Unit
Name Function Connect to
AC Power Input
Com Port
VGA Port
USB Port
Audio Signal Out
Supply AC Power To PC
Unit
Serial Communication With
I.O. Board
Send Video Signal To
Monitor
Multi-Function
- Software Update
- Camera
Send Audio Signal To I.O.
Board
AC Power
DB9 Cable
VGA Cable
Thumb Drive,
Camera Cable
Audio Cable
6C. Back Panel Of PC Unit
Keyboard Mouse
Com
VGA
USB
MICL-In
L-Out
LAN
(Optional)
