Medeli DD403 User Manual

2

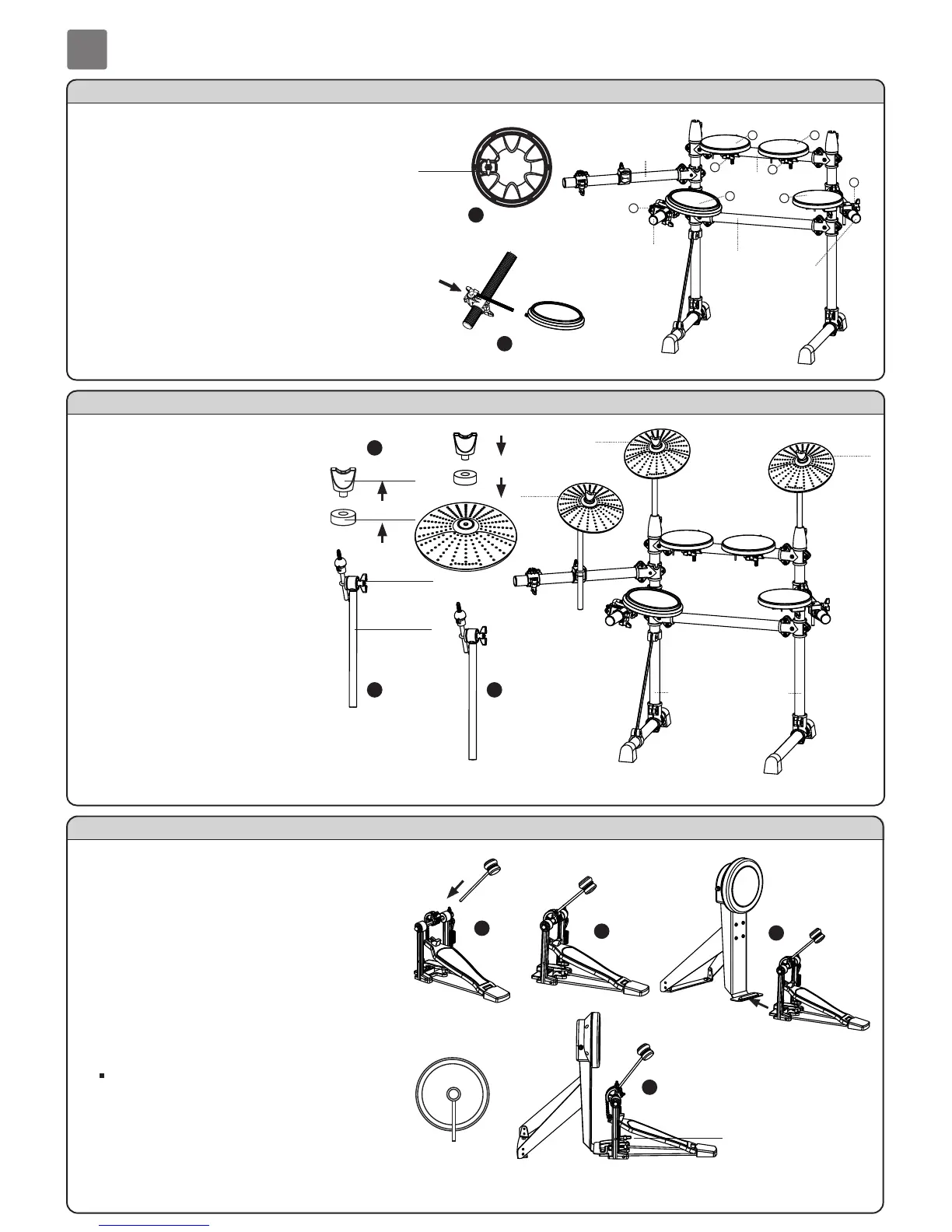

Attach the Parts
Attach the Pads
1
2
1.Loosen wing nut on the holder
clamp, which is on the center
pipe(1),side arm(L2)and side
arm（R）.
2.Attach drum pads to the holder
clamp on center pipe(1),side
arm(L2),side arm(R) and tighten
wing nuts. Repeat for each pad.
Wing Nut
Attach the Cymbal Pads
1. Remove the wing nut and felt
washer from the cymbal tilter.
2. Place the cymbal pad, felt
washer, wing nut 3 assembly as
shown, and tighten the wing nut
3 to obtain an appropriate
amount of sway.
3. Adjust the cymbal pad position
with the wing nut 4.
Wing Nut 3
Felt Washer
Wing Nut 4
Cymbal Tilter
3
2
Assemble the Kick
1. Insert the beater to the beater holder on
the foot pedal.
2. Adjust the beater position and tighten
the beater with the drum key.
3. Attach the foot pedal to the kick pad.
4. Adjust the beat position and tighten the
wing nut.
Note:
Position the one beater in the center
of the kick pad kick .
1
2
3
4
Wing Nut
Center Pipe(1)
Side Arm(L1)
1
1
2 2
Side Arm(L2)
2
2
1
Side Arm(R)
Center Pipe(2)
1
Pillar(L) Pillar(R)
Hi-Hat
Crash
Ride
1
